INSTALLATION OF ELECTRONICS
Only a qualified electrician should make electrical connections to the facility’s electrical
circuit. It is important to check if the ground wire is firmly connected to ground and
whether its resistance meets the owner’s requirements.
1. Do not power the machine again before determining what is causing the noise and resolving the
problem.
2. Static electricity can cause problems with electrical equipment and operation, ensure that the
equipment is properly grounded during installation.
3. Ground the machine and test its ground resistance, if resistance is less than 5OHM then it is
acceptable. Any auxiliary equipment should be grounded as well.
4. If static is present in bags, the installation of static eliminator may be required. If this feature is
needed, please contact the company for additional information.
INSTALLATION OF AIR SUPPLY
The Filter Regulator is located on the right hand side of the VERTEK 1200. The VERTEK 1200 operates at
80PSI (5.5BAR) and has an air consumption of 9CFM (0.25M
3
/MIN.) It is important to ensure that the air
supply of the owner’s facility can meet these specifications. The air supply is designed to connect to a 3/8
NPT air hose.
Do not add any lubrication to the Filter Regulator assembly. They are already pre-lubricated.

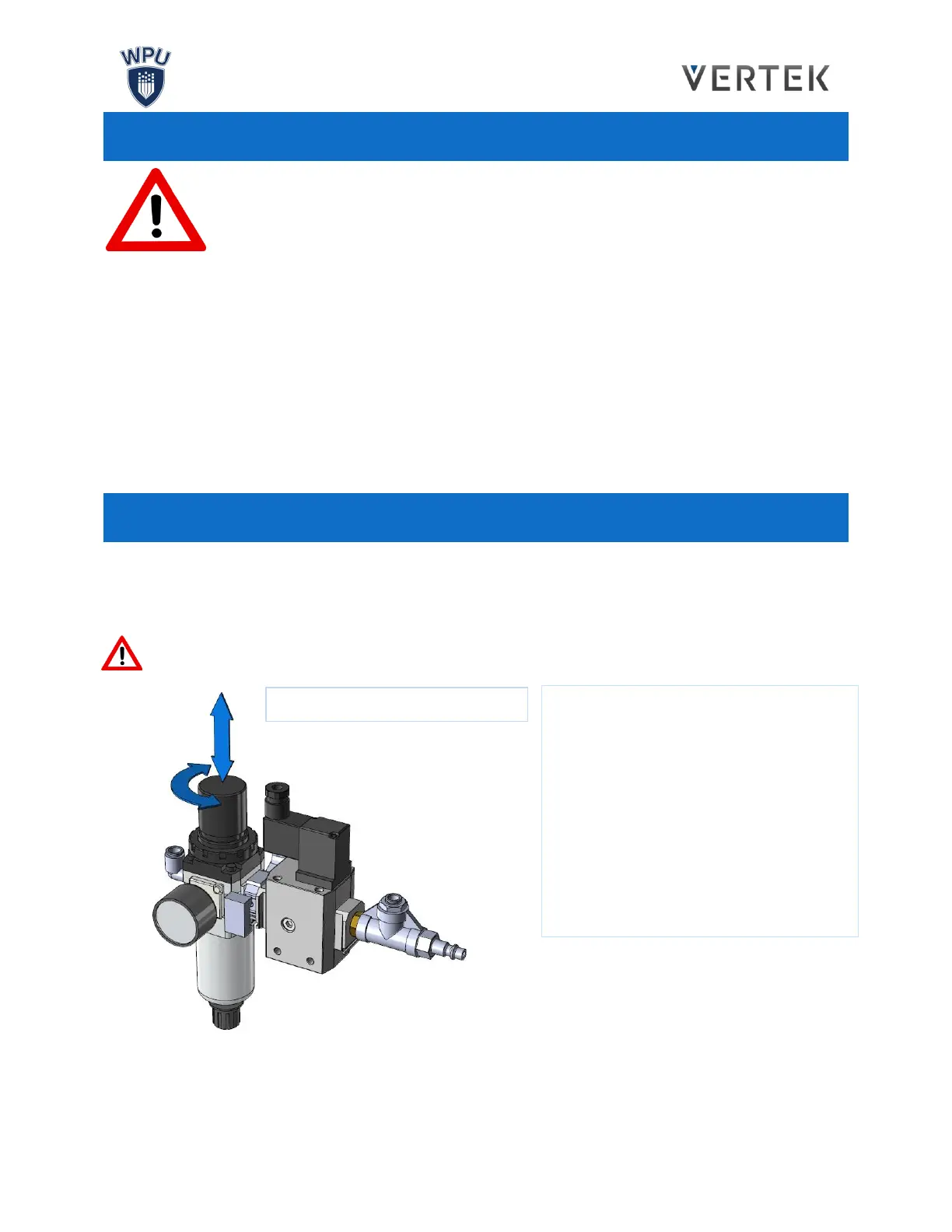

To Adjust Air Pressure
1. Pull the knob to release it and adjust
the pressure.
2. If the knob is rotated clockwise, the
inlet pressure will increase, if rotated
counter clockwise it will decrease.
3. Press down on the knob to lock it in
place again once the pressure changes
have been completed.
IMAGE FOR REPRESENTATION ONLY
