Connect steam boiler piping (continued)8

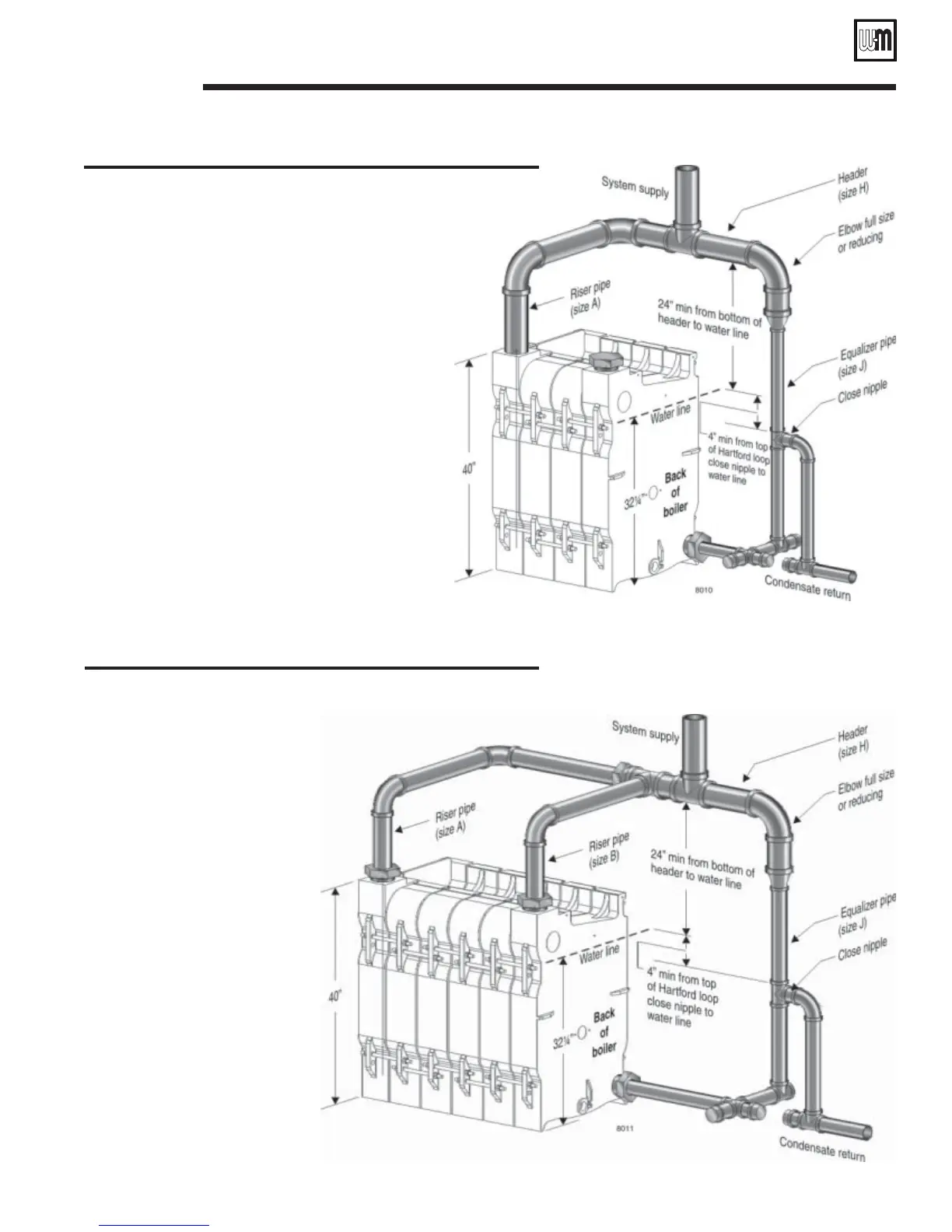

Figure 15 Model 380 through 580 steam boiler piping — NOTE
minimum 24 inches between boiler water line and bottom
of header.
Figure 16 Model 680 through 980 steam boiler piping — NOTE
minimum 24 inches between boiler water line and bottom
of header.
