Weil-McLain 80 Boiler For Gas, Light Oil, Gas/Light Oil Fired Burners
18 Part No. 550-141-935/0602

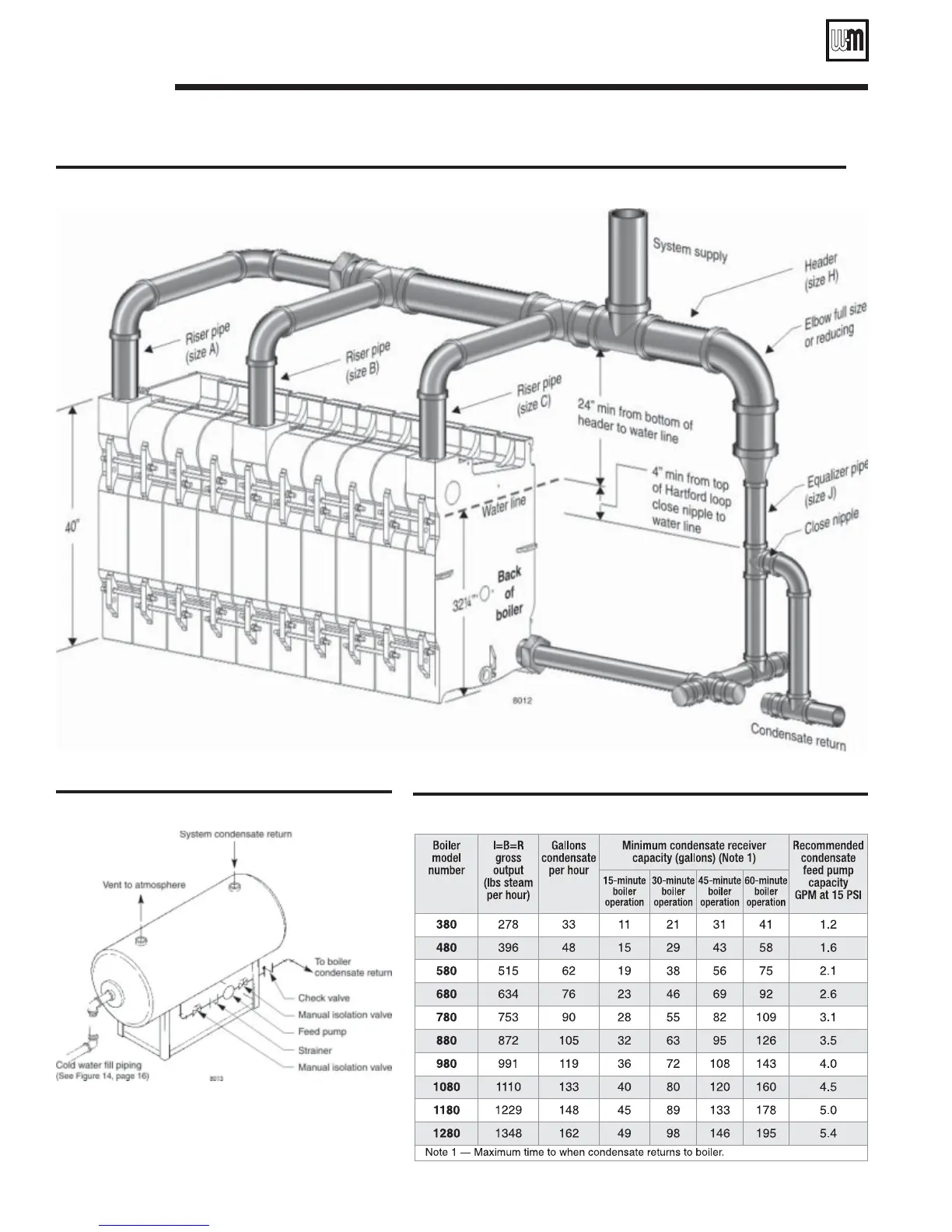

Table 9 Condensate receiver capacity
Figure 18 Condensate piping to boiler
Connect steam boiler piping (continued)8
Figure 17 Model 1080 through 1280 steam boiler piping — NOTE minimum 24 inches between boiler water line and
bottom of header.
