Weil-McLain CGi - Page 5

Users Information Manual
5Part Number 550-110-592/1000
▲
▲
59215
(PFG-5
only)
(PFG-5 only)
▲
▲
Not shown
▲

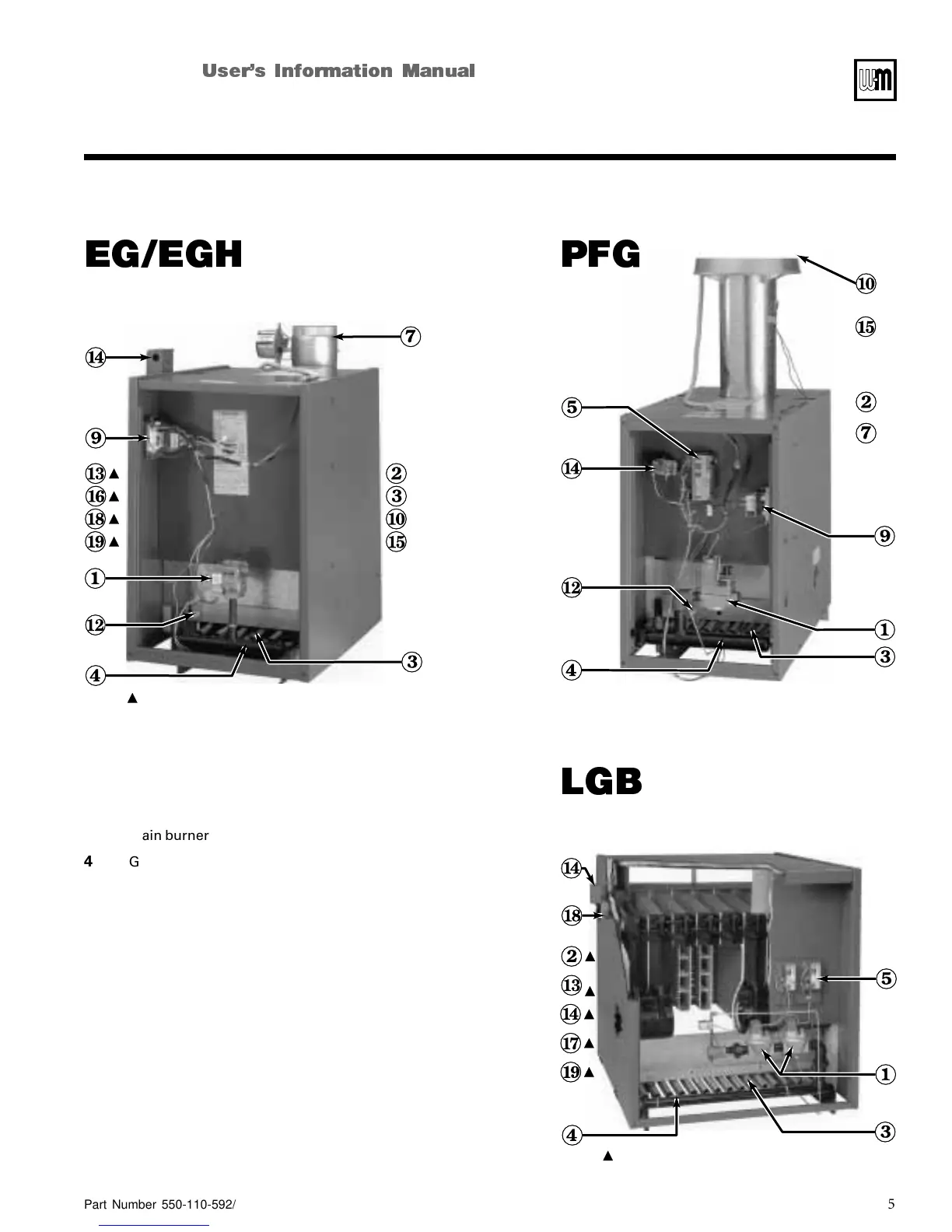

EG/EGH PFG
LGB
1 Gas valve
2 Pilot burner
3 Main burner
4 Gas manifold/orifices
5 Control module
7 Vent damper
9 Transformer
10 Spill switch
12 Rollout thermal fuse element
13 Low water cutoff (steam boilers)
14 Limit control(s)
15 Draft hood
16 Circulator
18 Gauge (pressure or pressure/temperature)
19 Gauge glass (steam only)
59214
Not shown
59213
Not shown
▲
▲
▲
▲
