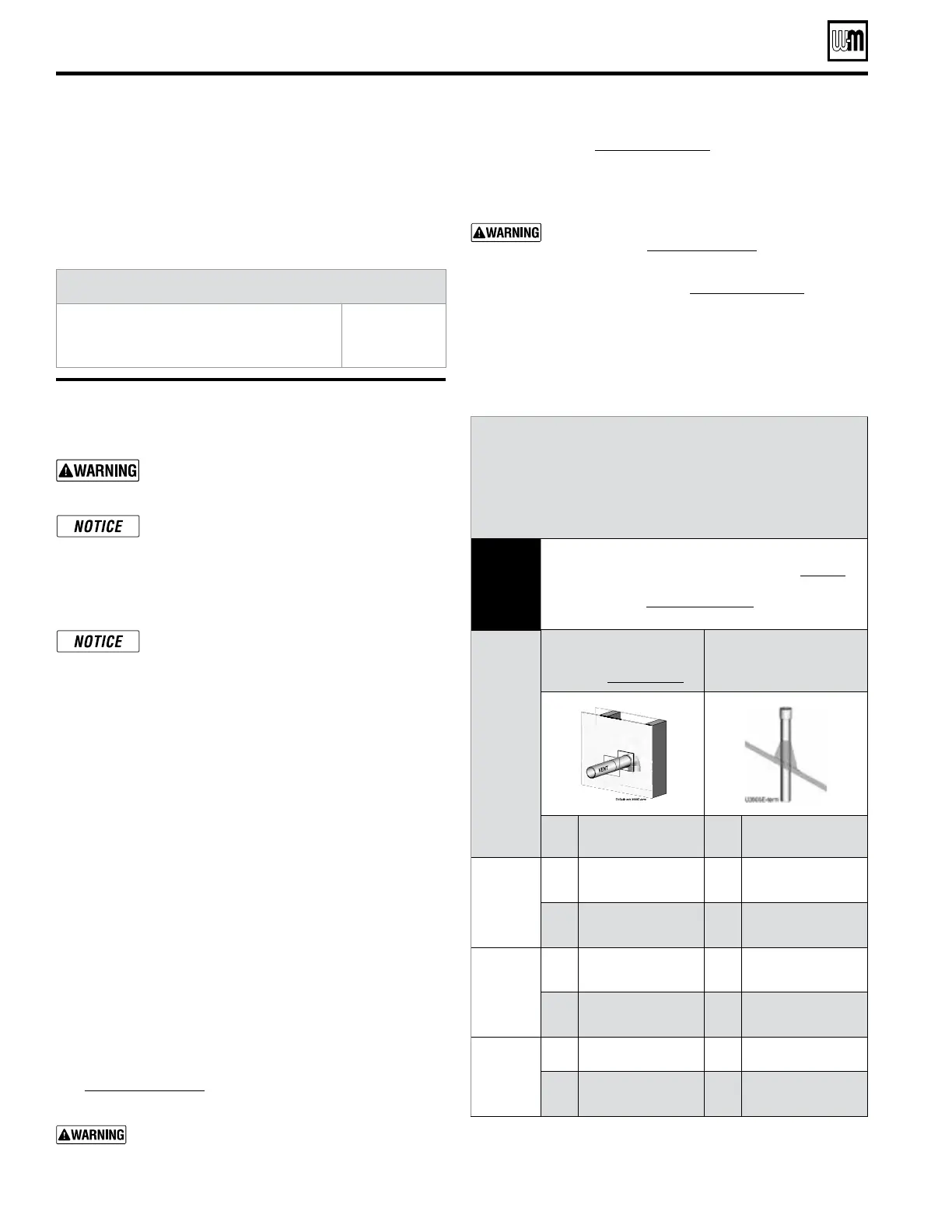

Part number 550-100-270/0122
40
ECO
®
Tec series 2 gas-fired water boiler – boiler manual
-
Maximum vent and air pipe length (for each)
80/110/150 - 2" & 3" = 100 feet
199 - 3" = 100 feet / 199 -2" = 50 feet
(Minimum length for all applications is 2 feet)
(All applications include allowance for the termination ttings plus one elbow in air
piping and one elbow in vent piping).
USE
SWEEP
ELBOWS
ONLY
(Please refer to all notes and warning on page22.
For Vent and Air piping materials, refer to
Figure27,page23).
ECO Tec Model
SIDEWALL
termination
(Note 1 & 2, Figure26,page22.)
VERTICAL
termination
Size,
inches
Materials
page 4
Size,
inches
Materials
page4
80/110
2
PVC/PVC-DWV CPVC, PP, SS
2
PVC/PVC-DWV CPVC, PP, SS
3
PVC/PVC-DWV CPVC, PP, SS
3
PVC/PVC-DWV CPVC, PP, SS
150
2
PVC/PVC-DWV CPVC, PP, SS
2
PVC/PVC-DWV CPVC, PP, SS
3
PVC/PVC-DWV CPVC, PP, SS
3
PVC/PVC-DWV CPVC, PP, SS
199
2
CPVC, PP, SS
2
CPVC, PP, SS
3
PVC/PVC-DWV CPVC, PP, SS
3
PVC/PVC-DWV CPVC, PP, SS
Read all instructions before installing. Follow
all instructions in proper order to prevent
personal injury or death.
Inlet and outlet pipe and ttings provided
by installer.
1. Install 3” diameter PVC or CPVC pipe and elbow on air
inlet of boiler.
2. Install 3” screen in opening of elbow.
Installation of pipe and elbow in inlet is to
prevent objects from inadvertently entering or
blocking air inlet.
3. Use the template to cut appropriate hole in wall for exhaust.
Use only the exhaust hole!
4. Run the exhaust vent piping to the wall in accordance with
the instructions shown on the following pages.
5. Install appropriate size bird screen in end termination.
e boiler can use inside air if no contaminants are present in
the boiler space. (If contaminants are likely to be present, install
the boiler as a direct vent appliance, using the appropriate vent
instructions in the boiler manual.)
e boiler room must be tted with combustion air openings
large enough to provide air for all appliances in the room. Use the
following information to size the openings. Ensure the installation
complies with all applicable codes and standards.
Air openings provide for ventilation (as well as combustion air)
to prevent overheating of the boiler controls and boiler space.
Air is also needed for other appliances located in the same space.
Use Figure29,page26, selecting the appropriate installation
conditions.
Air openings must be sized to handle all appliances
and air movers (exhaust fans, etc.) using the air
supply.
e sizing given in Figure29,page26 is based on the National
Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest edition, allowing
adequate air openings for gravity-vented gas appliances
(Category I) in addition to that needed for the ECO Tec boiler.
Installers must add in ECO Tec's BTU rating into
calculations in Figure29,page26, along with all the
other appliances in the room.
e air openings recommended in Figure29,page26 will allow
adequate ventilation and combustion air provided the boiler room
is not subjected to negative pressure due to exhaust fans or other
mechanical ventilation devices.
Refer to the National Fuel Gas Code for dealing with other
conditions.
VENT/AIRPARTSANDKITS(PVCorSTAINLESSSTEEL)
AvailablefromWMTechnologies
Weil-McLain Direct Exhaust Venting Kit
Includes interior/exterior intake/exhaust plates,
2" & 3" vent screens, templates & mounting
hardware
383-500-778
Weil-Mclain's Direct Exhaust Kit must be used to eld convert
the ECO Tec Boiler to a Direct Exhaust Boiler. All instructions
contained in this manual and in the Direct Exhaust Venting Kit
Instructions must be followed. For complete installation guide,
please refer to the Direct Exhaust Venting Kit Instructions are
included inside the Direct Exhaust Venting Kit, part number
listed below.
