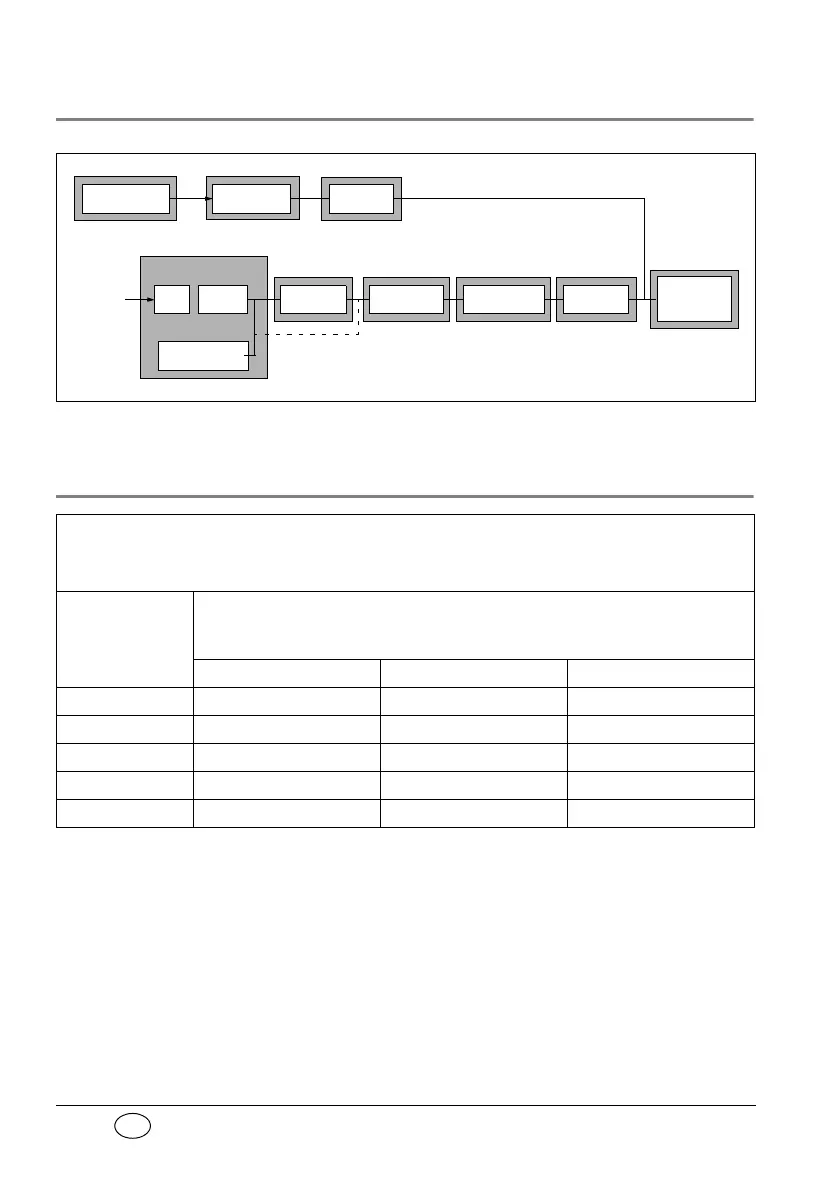

11.2 Pneumatic diagram
11.3 Safety distances
Recommended safety distances between portable and mobile
HF telecommunications equipment (e.g. mobile phones) and
CPAP 20e or CLICK 2
Nominal output
of HF equipment
in W
Safety distance dependent on transmission frequency
in m
150 kHz - 80 MHz 80 MHz - 800 MHz 800 MHz – 2.5 GHz
0.01 0.12 0.12 0.24
0.1 0.37 0.37 0.74
1 1.17 1.17 2.34
10 3.69 3.69 7.38
100 11.67 11.67 23.33
O
2
pressure source
(max. 1.5 bar)
Filter
Optional
bacteria filter
Breathing tube
1.8 m
Exhalation
system
Pressure sensor for
patient pressure
Patient mask
(nasal or
full-face)
Ambient
air inlet
Fan
Optional
humidifier
Flow regulator
to max. 4 l/min
Optional
O
2
valve
