Weinmann CPAP 20e - CLICK 2 Part Descriptions

Overview 5
EN
Legend
24 Filling cap
For filling the humidifier.
25 Upper part
Closes the humidifier, contains the filling cap.
26 Outlet connections
From here the moistened air flows into the
breathing hose.
27 Lower part
Contains approximately 280 ml water.
28 Closures
Used to shut off the pressure gland during
preparatory hygienic operations.
29 Heater
Heats the water in the humidifier. This humidifies
the air.
30 Inlet connections
The air flows from the therapy unit into the
humidifier.

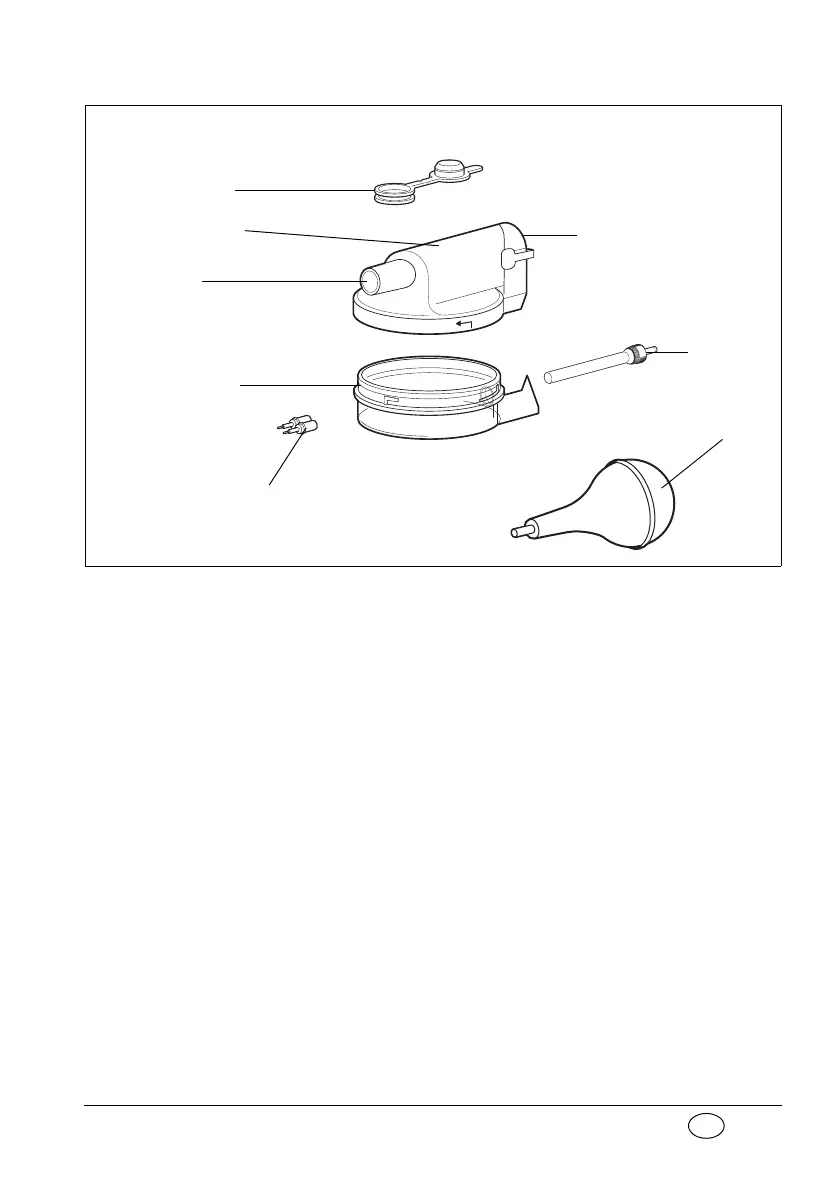

31 Bellows
Dries the CLICK 2.
30 Inlet connections
26 Outlet
connections
25 Upper part
29 Heater
24 Filling cap
28 Closures
27 Lower part
CLICK 2 (optional)
31 Bellows
