weinor Cassita II - 3 Product Description; Schematic Diagram; Description of Construction and Function

3
Product description
3.1 Schematic diagram

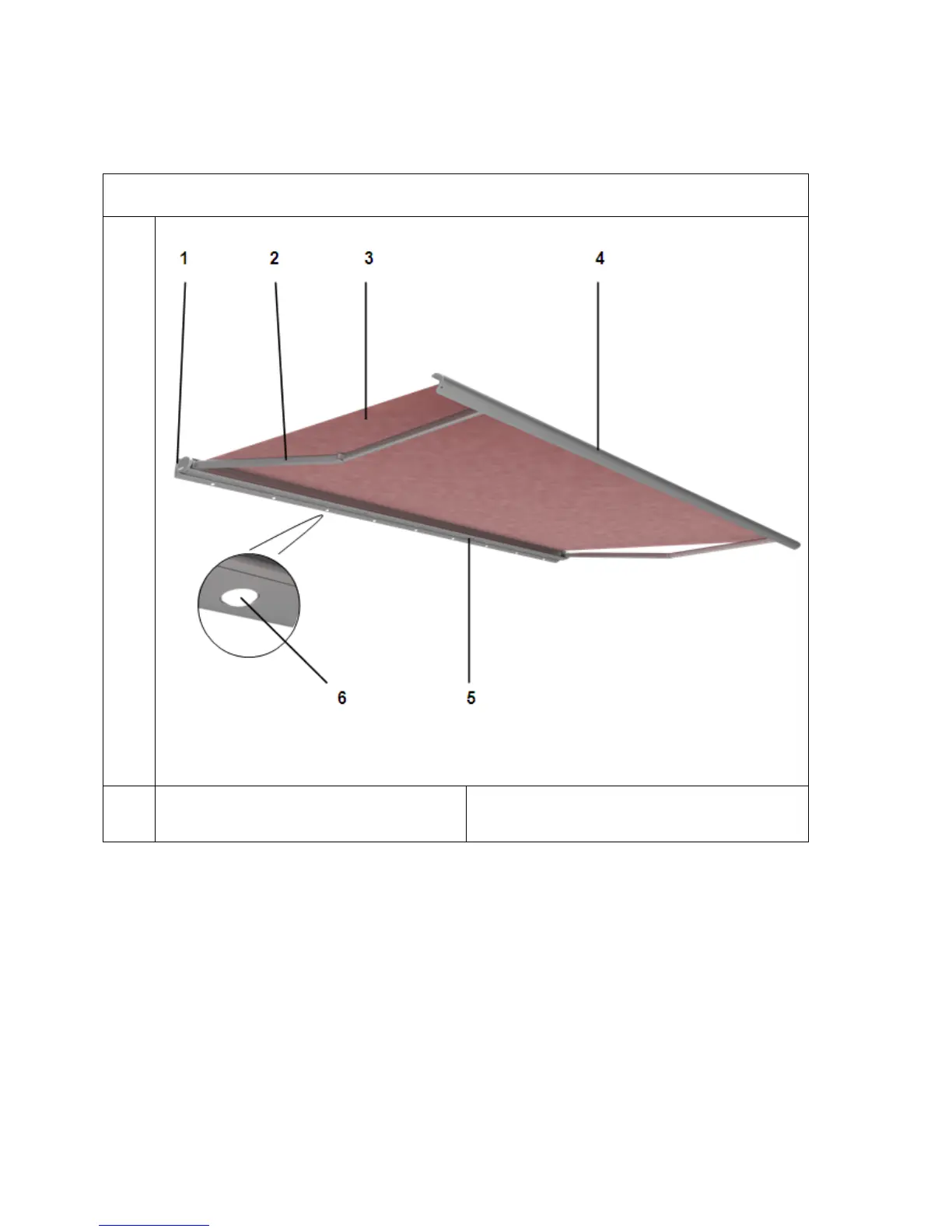

Figure 1: Schematic diagram of Cassita II/Cassita II LED
1
Wall bracket
4
Drop profile
2
LongLife arm S
5
Housing floor profile
3 Fabric 6 LED spotlight
3.2 Description of construction and function
The weinor Cassita II/Cassita II LED is a cassette awning with a fabric that opens to protect
against the sun. It can be tilted to an angle of inclination between 5° and 45° as desired.
The weinor Cassita II can be optionally fitted with an LED light bar.
Only high-quality, rust-free materials are used in the weinor Cassita II. The profiles are made of
extruded aluminium. All connecting parts, such as screws, are made of stainless steel.
