weinor I 2000 - Page 13

13

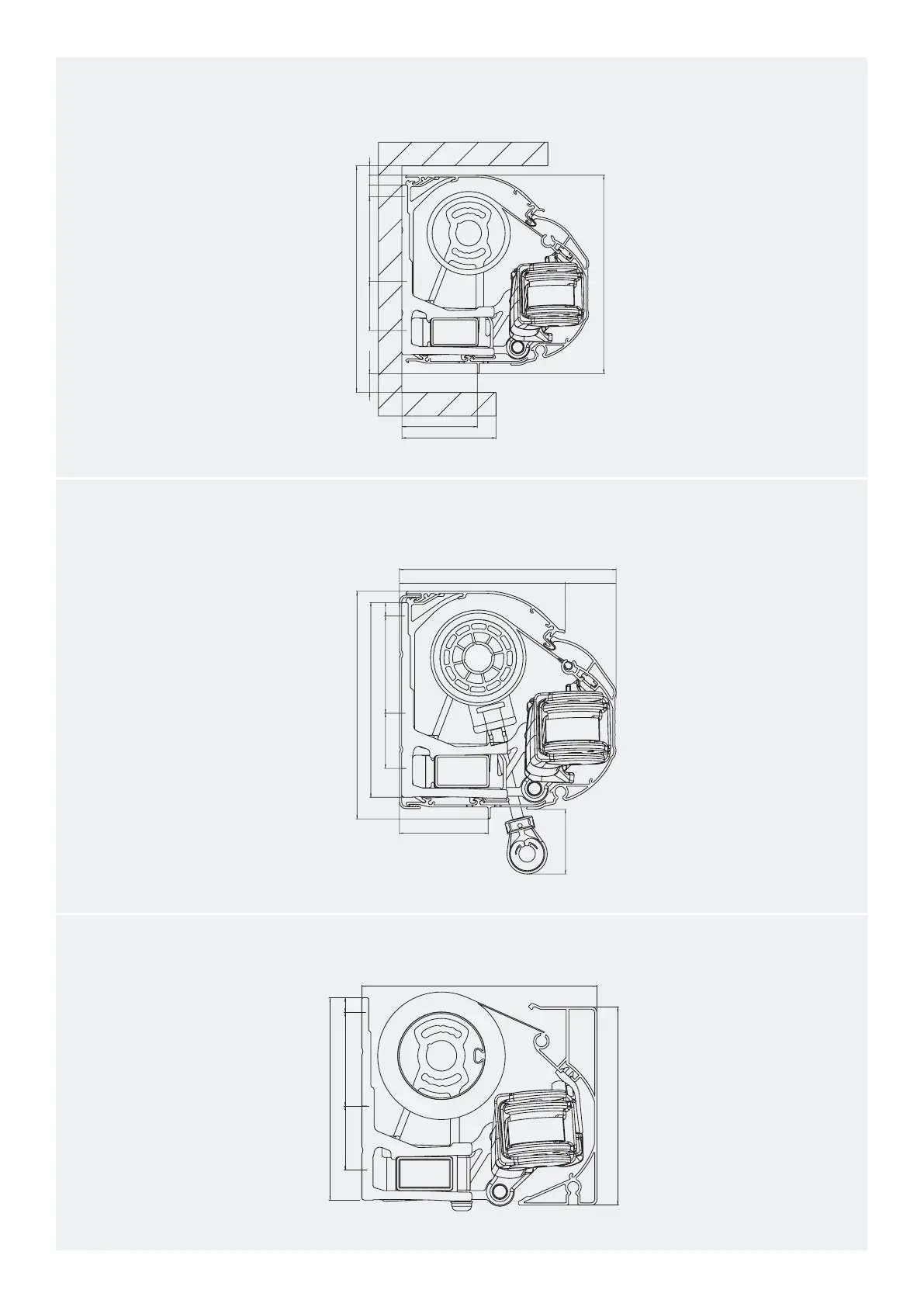

Cross-section of N 2000
Cross-section of I 2000 (without back-plate) niche installation
Cross-section of K 2000 with gear box (with back-plate)
210
176.5
12.5
90
180
55
15
34
7
200
82
60
211
180
12.5
90
55
211
80
max. 115
min. 20
min. 241
10
12.5
9055
10
