Red barPlanning/measuring
Terrace depth
Clearance height
Diagonal
Pitch
Installation height
Ground
Wall
2 I/K/N 2000 standard wall brackets, 85 mm
4 I/K 2000 wall brackets, 85 mm
2+1 I/K 2000 wall brackets 2 (260) + 1 (85)
3 I/K/N 2000 standard wall brackets, 85 mm
5 I/K/N 2000 wall brackets, 85 mm and
7 standard wall brackets, 85 mm

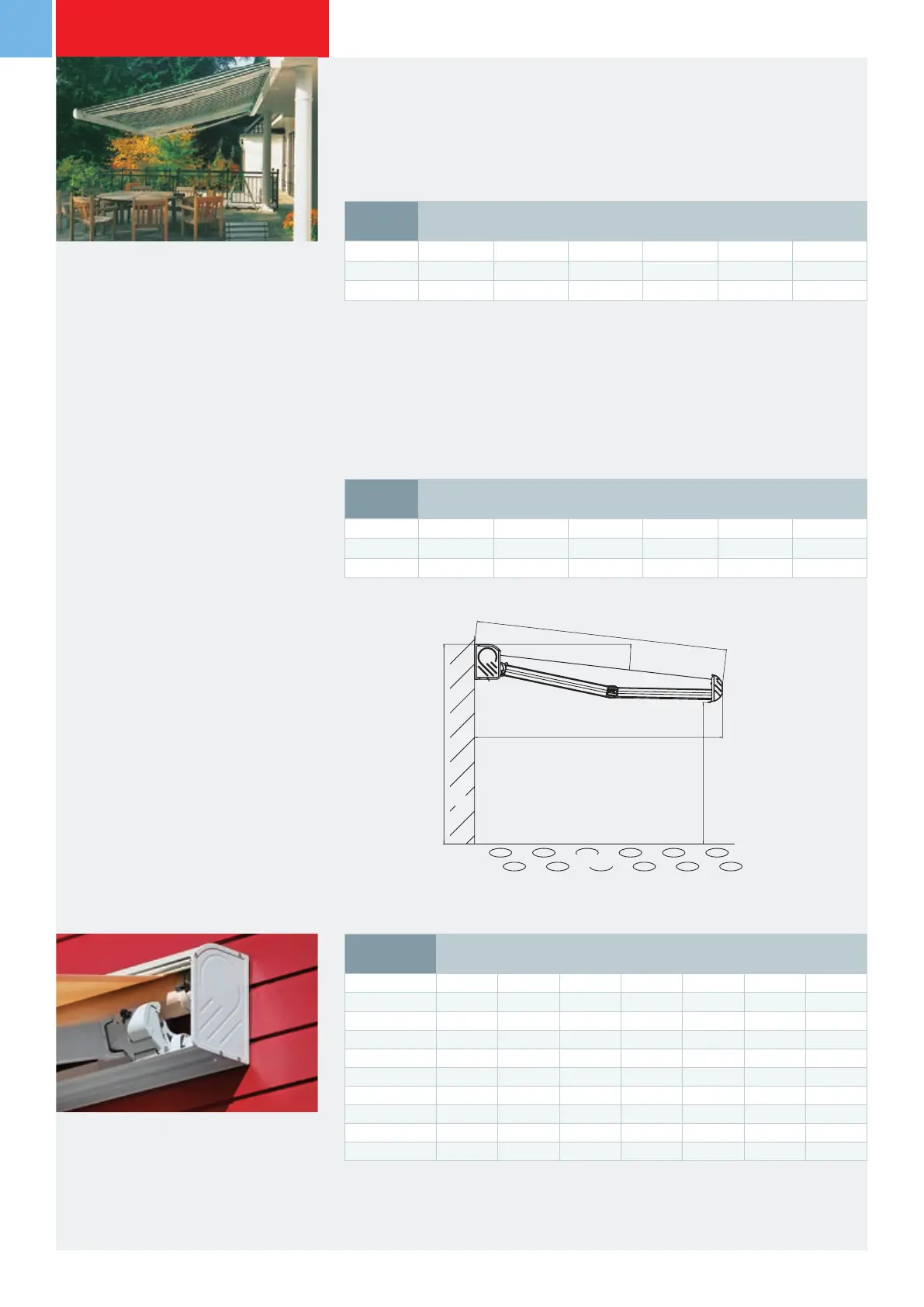

Sizes and bracket recommendations
Width
in cm
Number
of arms
Diagonal in cm (irregular figures possible)
150 200 250 300 350 400
– 250 2
251 – 300 2
301 – 350 2
351 – 400 2
401 – 450 2
451 – 500 2
501 – 550 2
551 – 600 2
601 – 650 2
651 – 700 3
Pitch
Diagonal in cm
150 200 250 300 350 400
5° 270 270 270 260 260 250
15° 250 240 220 210 200 180
25° 220 200 180 160 140 120
Wall installation on C20/25 concrete with up to
200 mm facing, wind resistance class 2 and a
permissible centric tensile load of 5.71 kN for
anchor bolts
Pitch
Terrace depth in cm
150 200 250 300 350 400
5° 150 200 250 300 350 400
15° 160 210 260 310 360 410
25° 170 220 270 330 390 440
Diagonal in cm (rounded figures)
Clearance height in cm (rounded figures)
This table is used to find the clear-
ance heights for various diagonals
when the tilt angle is 5°, 15° or 25°.
This table is based on the example
of an installation height of 300 cm
(upper edge of awning).
Determining the diagonal
Determining the clearance height
This table can be used to find the
awning diagonal for any given
horizontal terrace depth.
Determining the diagonal and clearance
height:
1. Find the diagonal by looking in the ‘Diagonal’
table for the terrace depth.
2. Using the diagonal from the table and the
required pitch, consult the ‘clearance height’
table for the clearance height. This clearance
height refers to a mounting height of 300 cm.
3. Add/subtract the dierence between 300 cm
and the actual mounting height to/from the
clearance height in the table.
