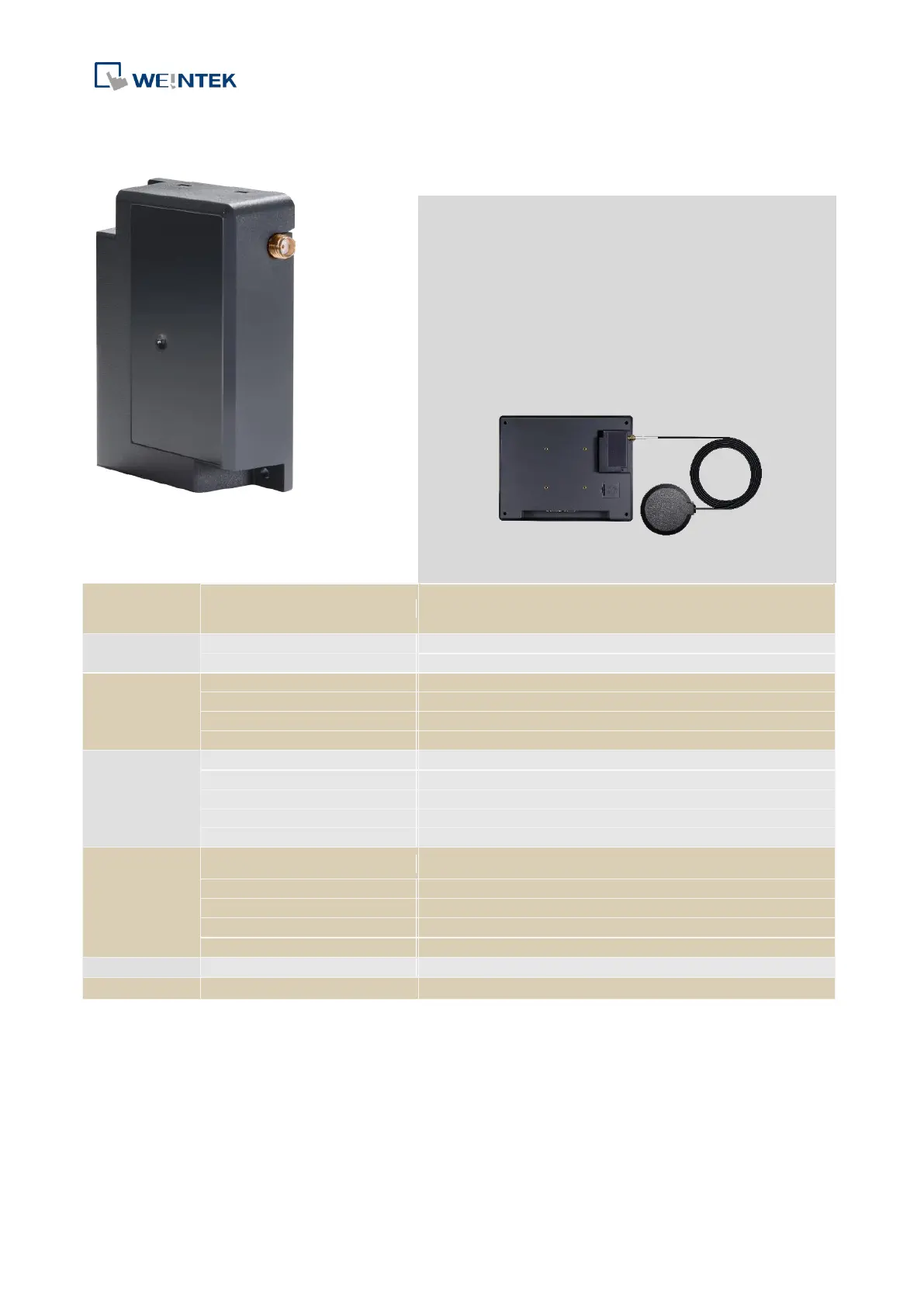

weintek M02 - Chapter 1 Overview; 1.1 Specification

M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
1
Chapter 1 Overview
1.1 Specification
Network
WiFi
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
I/O Port
SMA Female Connector
1
Male Connector to HMI
1
Power
Input Power
5VDC
Power Consumption
900mA@5VDC (powered by HMI)
Voltage Resistance
500VAC (1min.)
Isolation Resistance
Exceed 50M at 500VDC
Specification
PCB Coating
N/A
Enclosure
Plastic
Dimensions WxHxD
54.5 x 80 x 24.1 mm
Weight
Approx. 80 g
Mount
HMI connector + diagonal screw fastening
Environment
Protection Structure
M02: IP20 Compliant
Antenna: IP66 Compliant
Storage Temperature
-20° ~ 60°C (-4° ~ 140°F)
Operating Temperature
0° ~ 50°C (32° ~ 122°F)
Relative Humidity
10% ~ 90% (non-condensing)
Vibration Endurance
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certificate
CE
CE marked
Software
EasyBuilder Pro
WiFi Expansion Module
Feature
 Modular design, adds wireless connectivity to HMI.
 WiFi standards supported include: IEEE 802.11b/g/n.
 Compact design and little protrusion when installed
on HMI, which avoid space issue in control cabinet
installation.
 The magnetic mount antenna included in the
package can be installed at an optimal location to
maximize signal strength.
Demo for use with HMI
(HMI needs to be purchased separately)
