Weiss Enginering Ltd. DAC501-4ch/DAC502-4ch

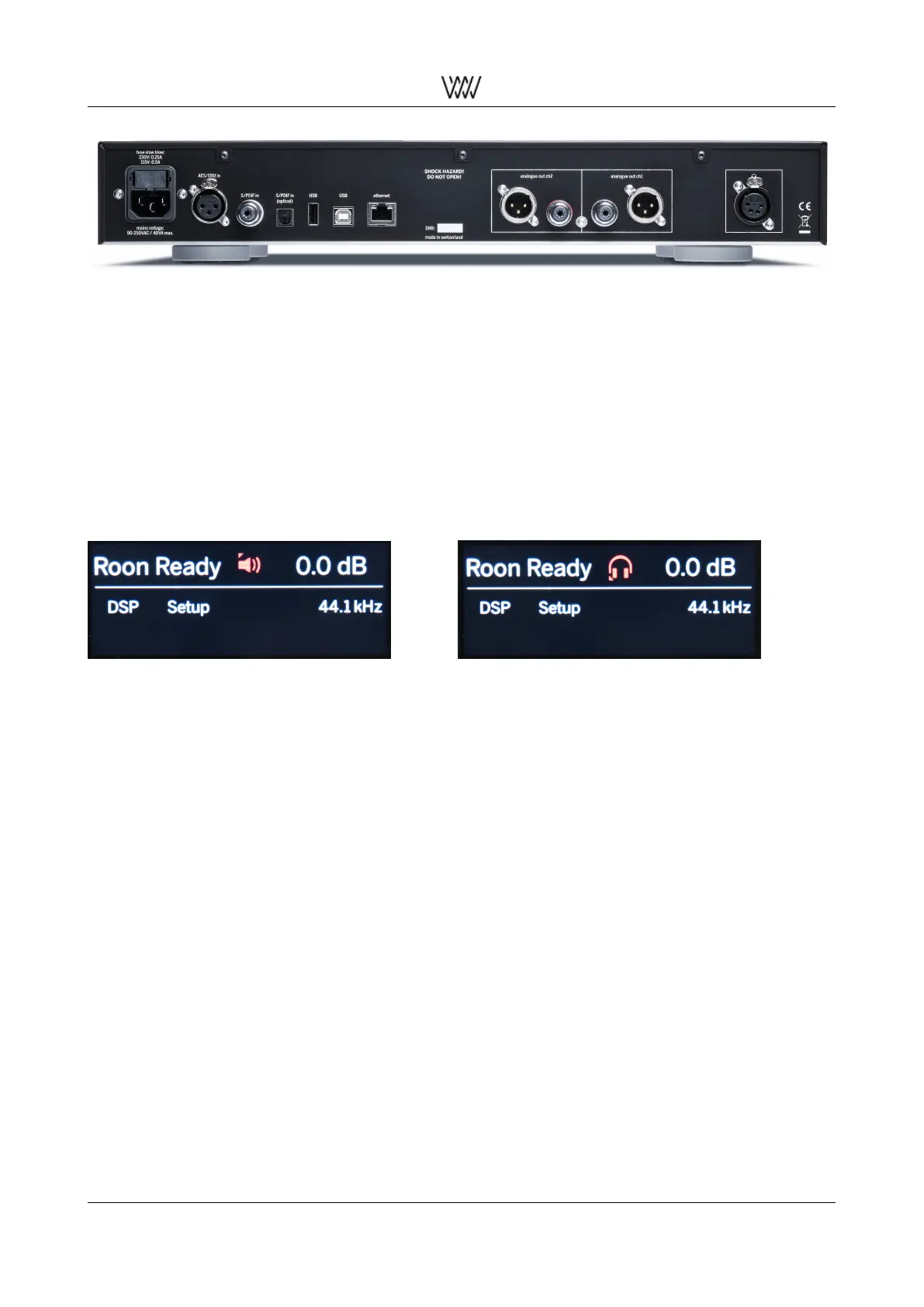

Figure 4: The back panel of the DAC502-4ch
2.2 Output selection
The DAC50x-4ch has two outputs, the XLR and RCA output sockets (backpanel) and the JACK output socket
(frontpanel). In the case of the DAC502-4ch an additional 4 pin headphone socket is available at the back, the
output signal of which is equivalent to the JACK output.
Only one of the two outputs (XLR/RCA or JACK) can be active at any time. Select the active Output either with
the remote control (two top/middle keys) or via the touch screen by pressing on the red output icon to toggle
between XLR/RCA and JACK outputs.
This icon represents the currently active Output as well as its selected Output Termination (2.3).
Figure 5: XLR/RCA Output with Speakers Termi-
nation
Figure 6: JACK Output with Headphones Termi-
nation
Most of the parameters in the DAC50x-4ch can be set differently between XLR/RCA and JACK outputs (e.g. vol-
ume, output level, equalizer settings etc.) and will be consistently saved when switching between outputs.
2.3 Output Termination
The DAC50x-4ch features multiple possibilities to finetune your setup, one of which is to accomodate either
speaker or headphone terminated setups. Therefor you may assign each output to its appropriate Output
Termination:
• Speakers
• Headphones
Each output termination selection has its own set of exclusive plugins.
Typically the XLR/RCA output is used for Speaker terminated setups, while the JACK output is used for Head-
phones. This is the default assignment, but may be changed at will using the Webinterface or via the LCD
display in menu section Setup > Output Termination.
Furthermore toggling of the Output Termination can be achieved by lengthily pressing (> 2s) the Output select
buttons on the remote control (2.6).
The first steps with your DAC50x-4ch 3 Quick Start Guide
