Weiss Enginering Ltd. DAC501-4ch/DAC502-4ch
2.6 IR Remote Control
Most of the keys on the IR remote control are self-explanatory. Here are some
additional remarks:
• The two top/middle keys select the active Output. Long press (> 2s) of
either keys toggles the active Output’s Termination.
• The polarity key changes the absolute polarity of the output signal. If this
is engaged (i.e. signal is inverted), the level figure on the LCD display
turns yellow.
• The mute key when engaged mutes the output signal completely and
the level figure on the LCD turns red.
• The DSP presets keys select one of the presets stored in the DSP. Cur-
rently we do not have yet assembled any factory DSP presets, but you
are welcome to do your own. More information on the DSP presets is
given in the web interface chapter.

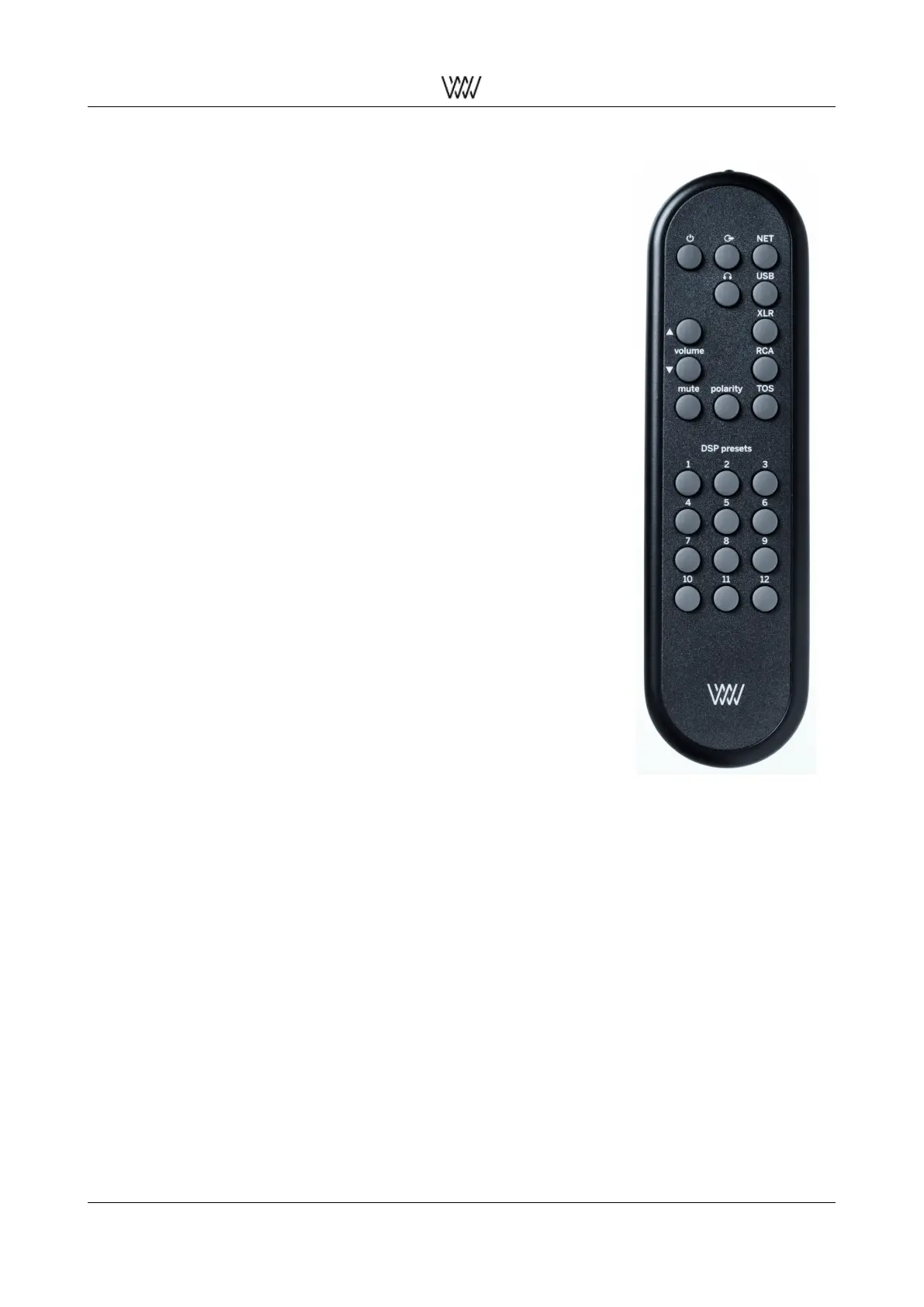

Figure 10: IR remote control
The first steps with your DAC50x-4ch 6 Quick Start Guide
