Weiss Enginering Ltd. DAC501-4ch/DAC502-4ch
1 The DAC501-4ch/DAC502-4ch Overview
Congratulations on purchasing
the DAC501-4ch/DAC502-4ch D/A converter!

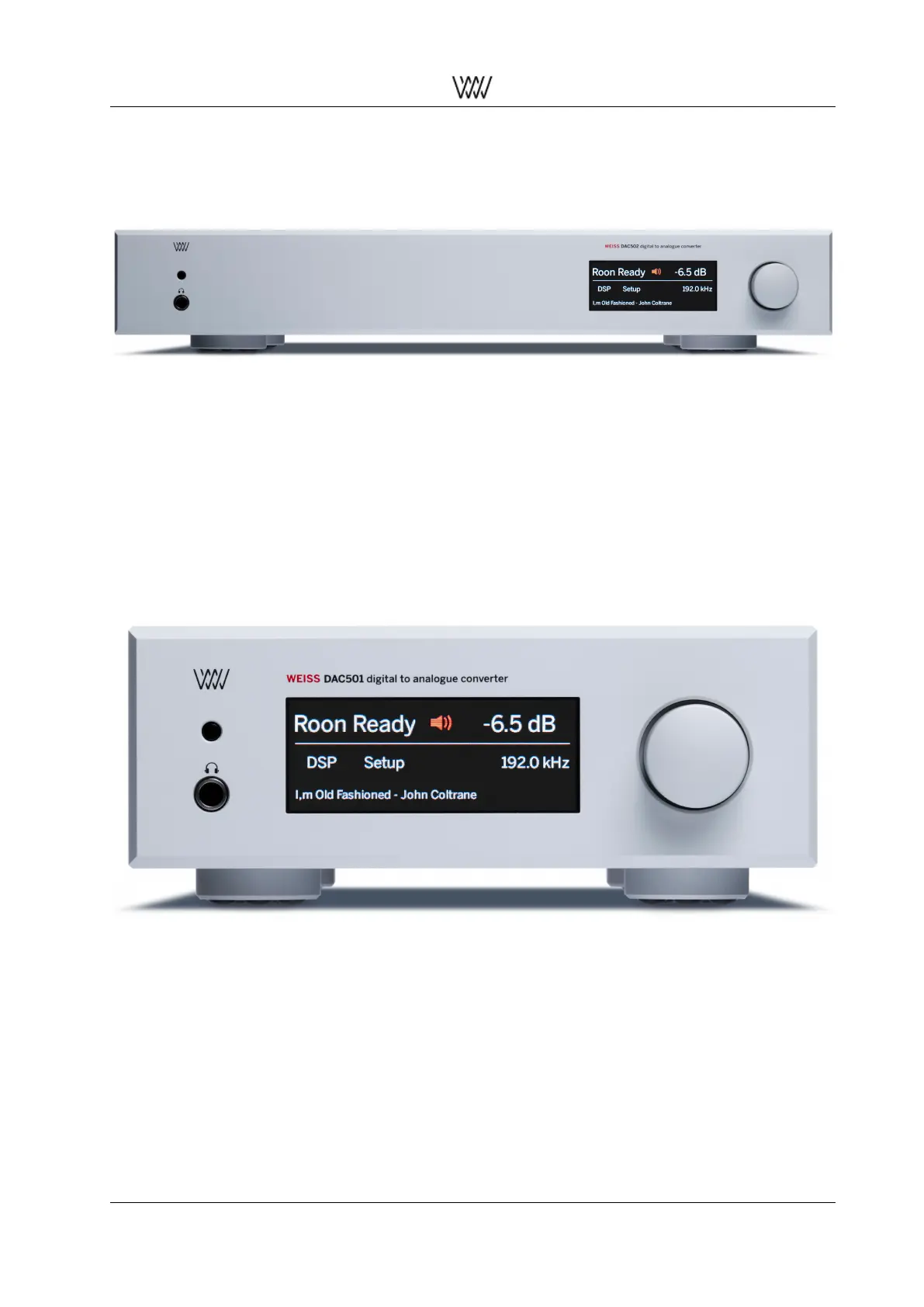

Figure 1: The DAC502-4ch
The DAC501-4ch/DAC502-4ch are our new state of the art D/A Converters with an unprecedented level of
sophistication and versatility.
With the DAC50x-4ch we are creating a new paradigm for what used to be a black box device. A typical D/A
Converter is a ”set and forget” device. Not so with the DAC50x-4ch. It adds a number of interesting signal
processing features and sports a variety of digital inputs. Balanced, unbalanced and headphone outputs
are provided.
Weiss Engineering has a 30 year history in D/A Converter design. In that time span we have learned a thing
or two about converter design. The DAC50x-4ch is the essence of our experiences.
Figure 2: The DAC501-4ch
The DAC502-4ch (fig. 1) uses a larger frame but else sports the same features as the DAC501-4ch (fig. 2).
Henceforth the term DAC50x-4ch refers to both models.
The basic operation of the DAC50x-4ch is outlined in the documentation Quick Start Guide - the first steps
with your DAC50x-4ch .
For all the powerful features and concepts employed in the DAC50x-4ch refer to the detailed overview and
White Papers mentioned in the following document. This manual will be updated on a regular basis as new
firmware features become available.
User Manual and 1 White Papers
