49
ECG
ECG
V1
RA
RL
LL
LA
V6
One of six V Lead
electrode placement
sites for the fifth lead.
V5
V4
V3
V2
RA
LA
LLLL

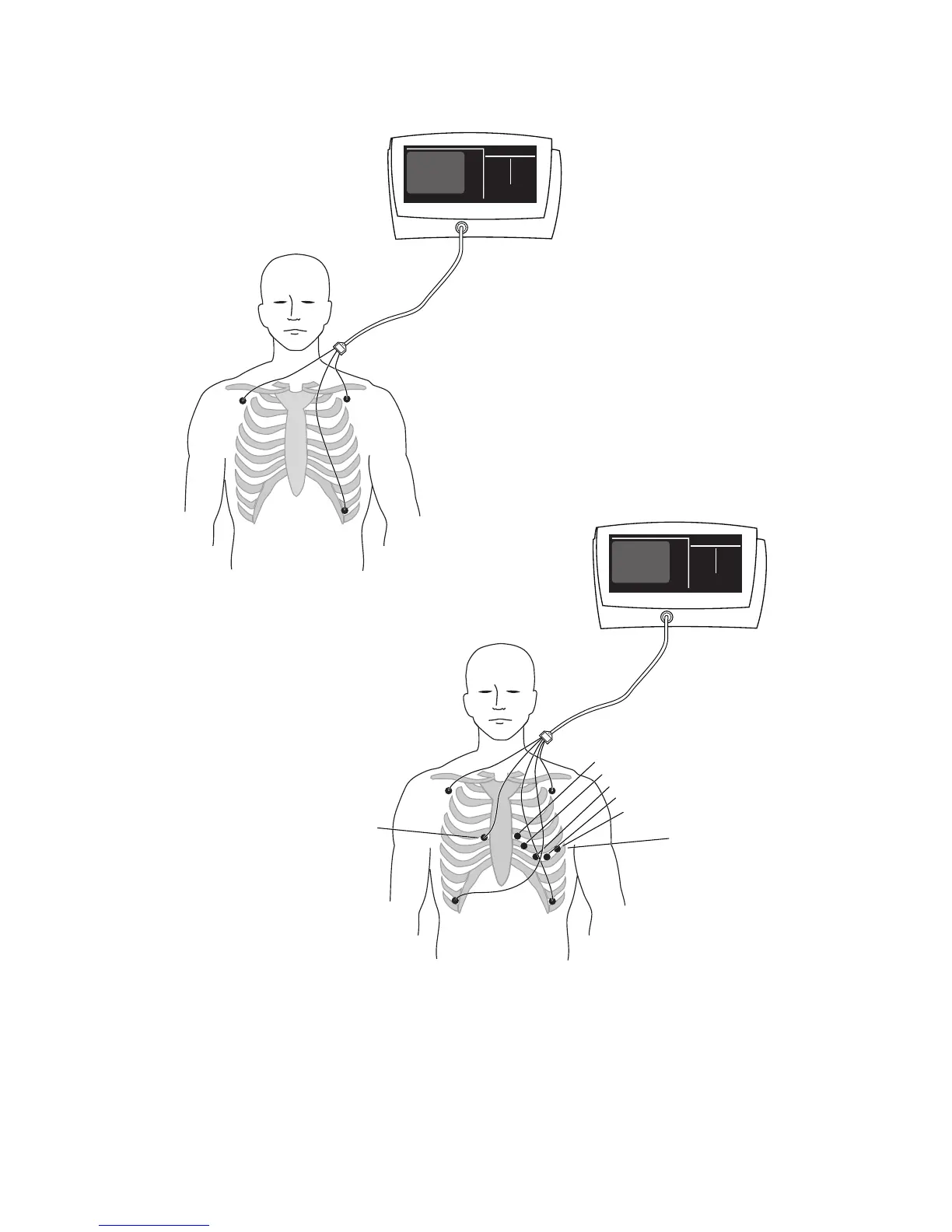

Correct placement of 3 wire and 5 wire ECG electrodes
