Welch Allyn CP 100 Update To Directions For Use

6 Welch Allyn CP Series Electrocardiographs
reset button, insert a small object, such as small paper clip, into the hole next to the
Spirometry port.
Bi-Colored Keyboard LED

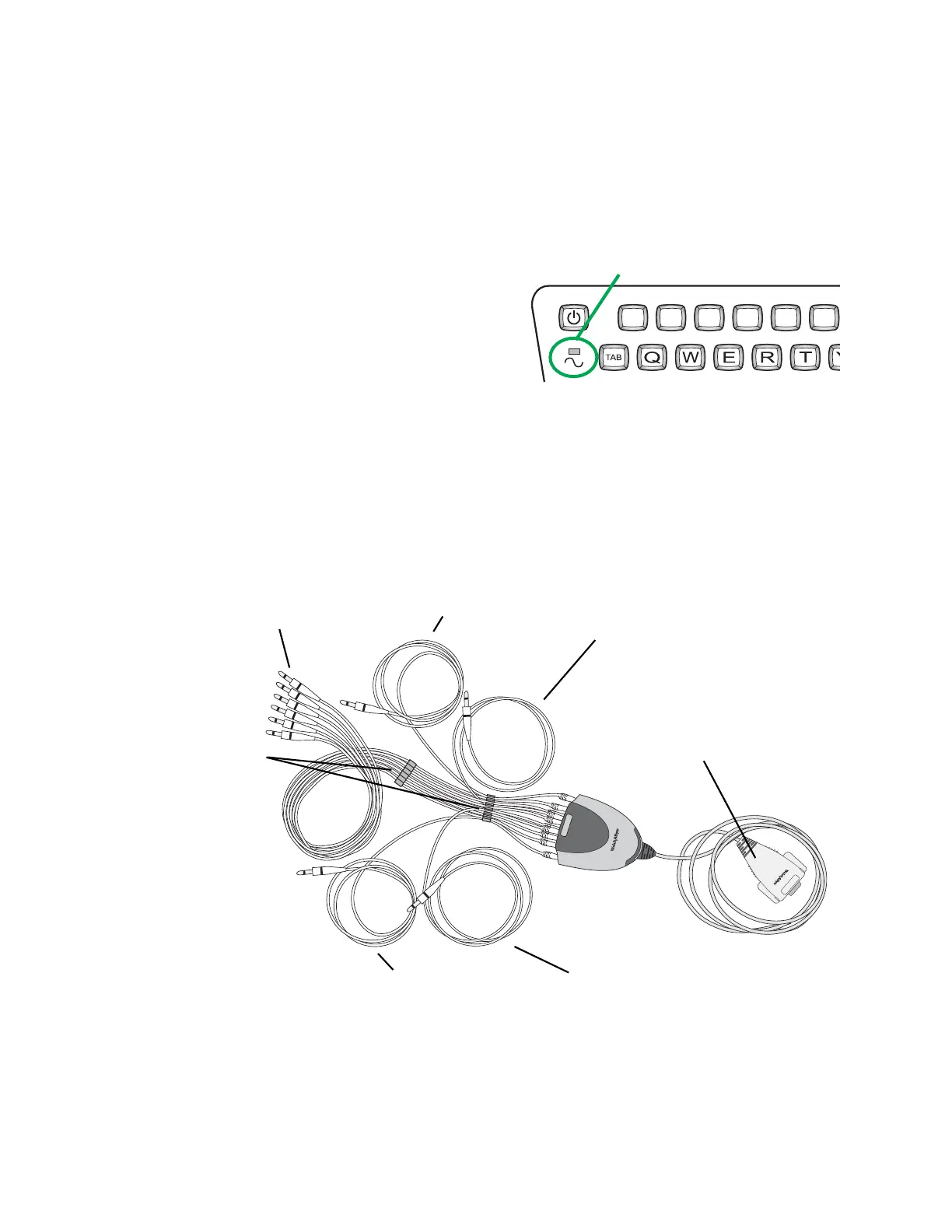

Figure 2. Keyboard LED
The bi-colored LED on the keyboard
indicates the battery status. When green,
the LED indicates that AC power is
present. When yellow, the LED indicates a
low battery that should be charged. The
LED is located below the Power On/Off
key on the upper left of the
electrocardiograph keyboard.
Alternate Patient Cable and Leads
The Lead configuration has changed so that all individually replaceable lead wires extend
from the same end of the patient cable. This new configuration is intended to make the
connection of the lead wires easier for you. It is different now than it has been in previous
models where the LL (F) and RL (N) leads attached to the opposite end of the patient
cable with respect to the other leads. See Figure 3“Patient Cable and Leads”.
Figure 3. Patient Cable and Leads
There has been no change to the replaceable lead wires. They remain compatible with
previous models and are equivalent in function.
1
!
2
@
3
#
4
$
5
%
6
+
Bi-colored LED
Left leg lead
Right leg lead
Chest leads
Cable
rakes
Electrocardiograph
connector
Right arm lead
Left arm lead
