INSTALLATION (cont.)
HANDLE ASSEMBLY
Assemble the handle on the welding machine mantle like in Fig. 2. Make sure of the correct
tightening of the screws and of the held of handle before lilt the machine.
WELDER INFORMATION

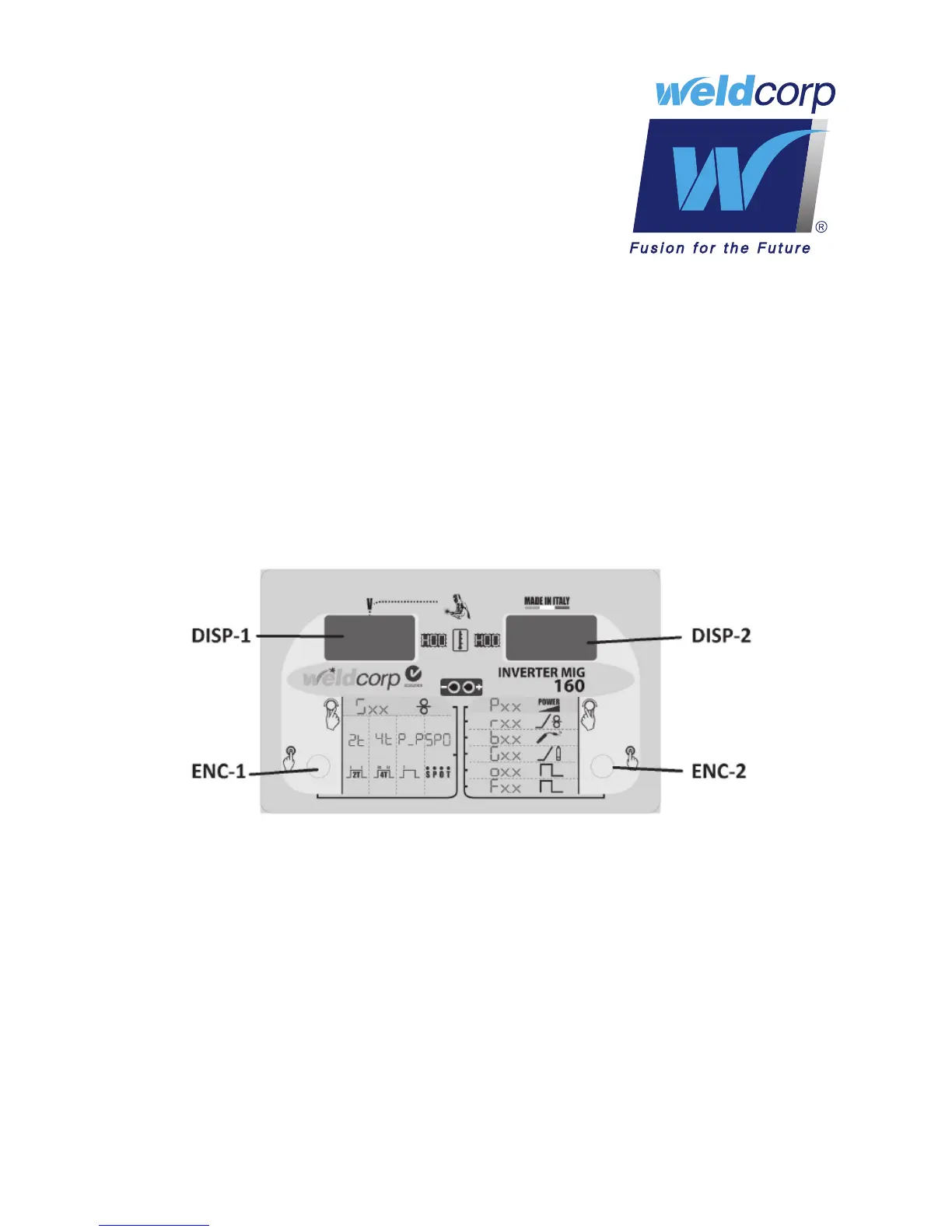

The machine functions are controlled by the control panel on the front panel. The panel is
composed of two displays, “DISP-1” and “DISP-2” and two knobs, “ENC-1” and “ENC-2”, which
allow the rotation and the pressure.
LEGEND
Wire Speed: set the speed of the wire.
Pre-gas: set the time of gas opening before
the arc starts.
Ramp up: set the gradual increase of speed
till the set value “speed wire”.
Bum back: set the residue length of the wire
from the torch at the end of welding.
Time on: set the length of time for the
welding type Pause-time and spot. If it’s set to
0 the welding is manual.
Pause time: set the length of the pause in
welding type pause time.
RESET PARAMETERS
To reset the welding parameters to basic
settings (factory settings) follow the
steps below:
1) Switch o the welding machine if it is on.
2) Press without release ENC1.
3) Switch on the machine.
4) If the displays show “ooo ooo” the reset
was successful, otherwise do again from
point nr 1.
5) Release ENC1.
6) Leave on the machine (after few seconds
the machine will work)
