Page 7
WELDER INFORMATION (cont.)
ELECTRODE WELDING (ARC/MMA) refer to Page 5 for Fig 1
• Connect the work clamp to the work piece to be welded trying to establish a good point
of contact between the metal and the clamp, as close as possible to the area to be welded,
insert the electrode into the electrode holder.
• Select the MMA mode (Fig 1, E).
• Insert the power supply plug into the power outlet and turn on the machine.
•Select the welding current (Fig 1, D) as a function of the type of electrode selected
• Start the welding operation using all the necessary protections for safety
• When the welding is completed, turn o the machine and release the electrode from the
electrode holder.
TIG WELDING
• Select the proper electrode polarity (direct or reverse) of the electrode (for more
information see the general part of the safety manual and the information on the electrode
packaging). Connect the plugs of the work clamp and the electrode holder to the sockets of
the machine (Fig 1, N, M) as function of the polarity, rotating the attack in order to ensure a
good grip.
• Connect the work clamp to the work piece to be welded trying to establish a good point of
contact between the metal and the clamp, as close as possible to the area to be welded
• Connect the torch gas tube to the gas cylinder
• Select the gas ow of the gas cylinder and open the torch valve
• Select the TIG mode (Fig 1, F).
• Select the welding current (Fig 1, D).
• Insert the power supply plug into the power outlet and turn on the machine.

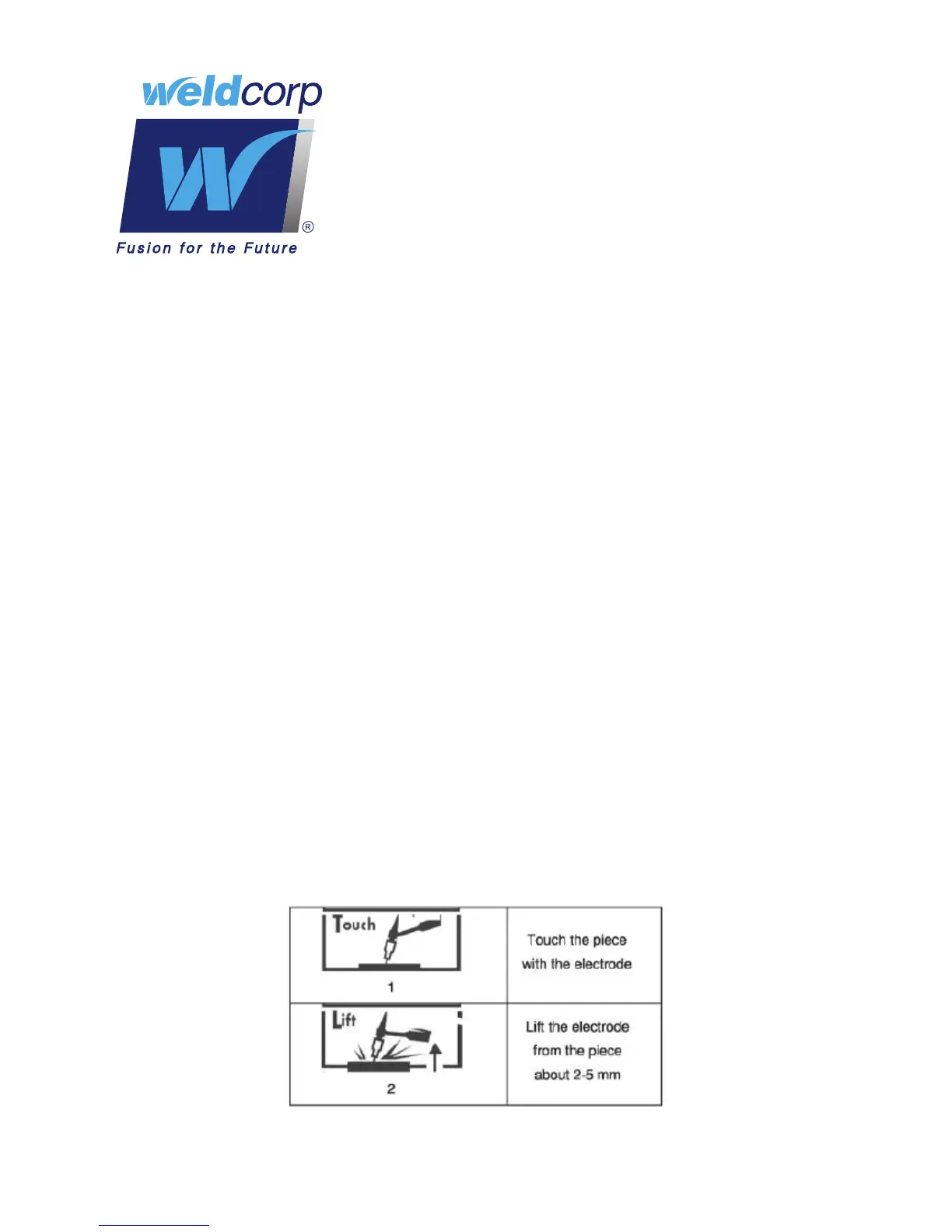

• Use the torch to weld as in the following without a pause between the two phases:
• To stop welding, turn o the machine and close the gas valve.
