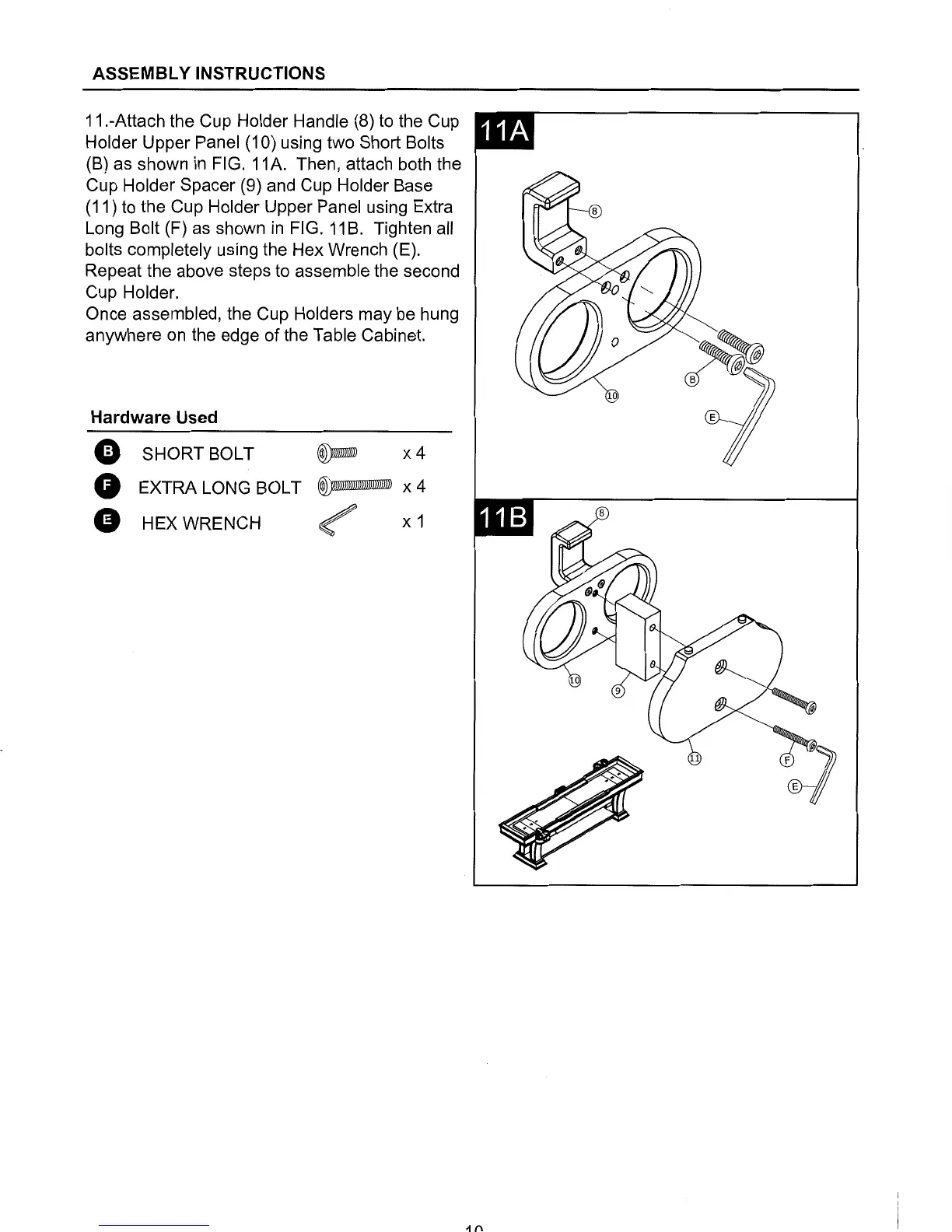

ASSEMBLY INSTRUCTIONS
11.-Attach the Cup Holder Handle (8) to the Cup
Holder Upper Panel
(1
0) using two Short Bolts
(B) as shown
in
FIG. 11A. Then, attach both the
Cup Holder Spacer (9) and Cup Holder Base
(11) to the Cup Holder Upper Panel using Extra
Long Bolt (F) as shown
in
FIG.
11
B.
Tighten all
bolts completely using the Hex Wrench (E).
Repeat the above steps to assemble the second
Cup Holder.
Once assembled, the Cup Holders may
be
hung
anywhere on the edge
of
the Table Cabinet.
Hardware Used
G
SHORT BOLT
~
x4
G
EXTRA LONG BOLT
@)mnmmmmva
x 4
G
HEX WRENCH
~
x1
