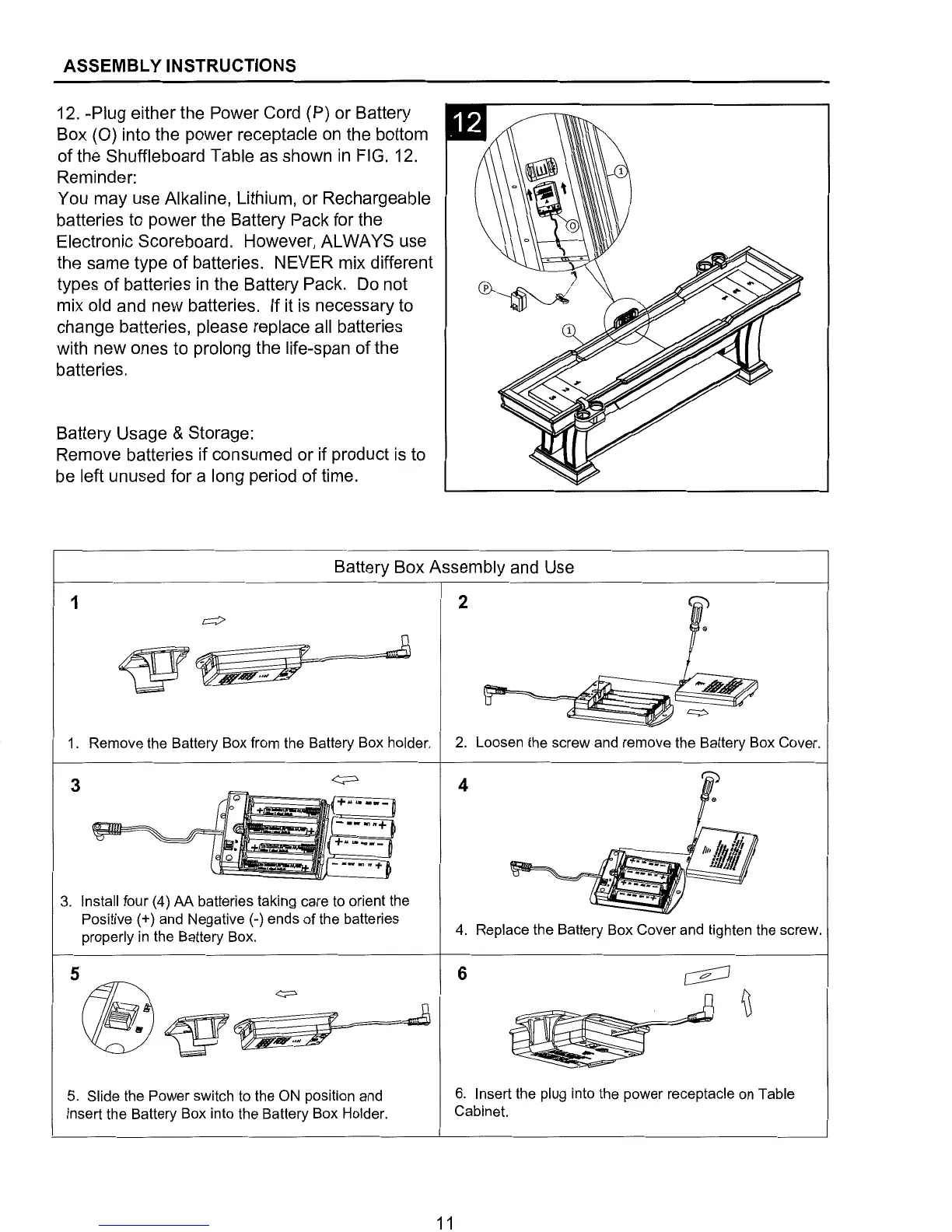

ASSEMBLY INSTRUCTIONS
12. -Plug either the
Power
Cord ( P)
or
Battery
Box
(0)
into the
power
receptacle on the bottom
of
the Shuffleboard Table as shown
in
FIG. 12.
Reminder:
You
may
use Alkaline, Lithium,
or
Rechargeable
batteries to
power
the Battery Pack for the
Electronic Scoreboard. However,
ALWAYS
use
the
same
type
of
batteries.
NEVER
mix
different
types
of
batteries
in
the Battery Pack. Do not
mix
old and
new
batteries.
If
it is necessary to
change
batteries, please replace all batteries
with
new
ones to prolong the life-span
of
the
batteries.
Battery
Usage
& Storage:
Remove
batteries
if
consumed
or
if
product is to
be left unused
for
a long period
of
time.
Battery
Box
Assembly
and Use
1
2
1.
Remove the Battery Box from the Battery Box holder.
2.
Loosen the screw and remove the Battery Box Cover.
3
3.
Install four (4) AA batteries taking care
to
orient the
Positive (
+) and Negative (-) ends of the batteries
properly
in
the Battery Box.
5.
Slide the Power switch to the
ON
position and
insert the Battery Box into the Battery Box Holder.
11
4
4.
Replace the Battery Box Cover and tighten the screw.
6
6.
Insert the plug into the power receptacle
on
Table
Cabinet.
