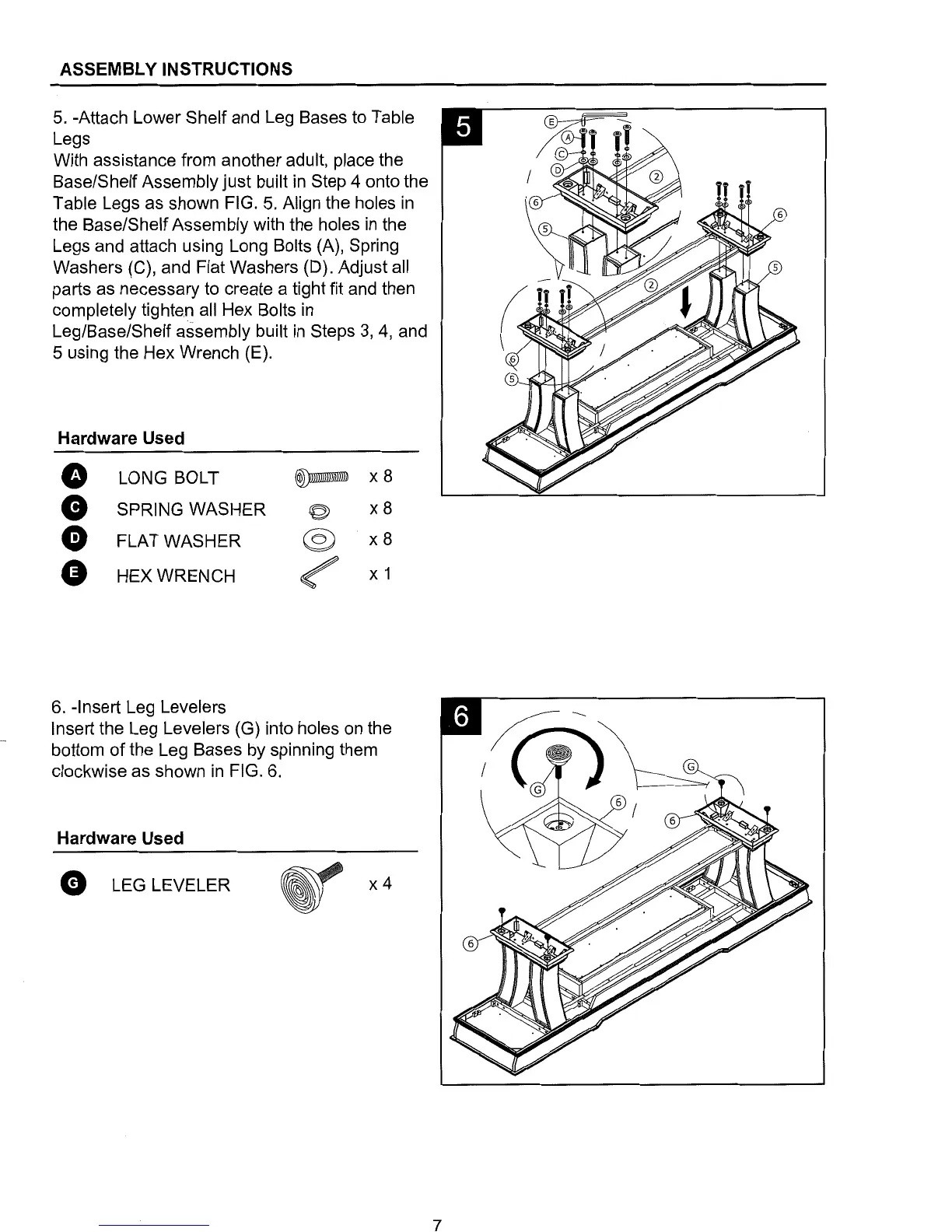

ASSEMBLY INSTRUCTIONS
5.
-Attach Lower Shelf and Leg Bases to Table
Legs
With assistance from another adult, place the
Base/Shelf Assembly just built
in
Step 4 onto the
Table Legs as shown FIG.
5.
Align the holes
in
the Base/Shelf Assembly with the holes
in
the
Legs and attach using Long Bolts (A), Spring
Washers (C), and Flat Washers (D). Adjust all
parts as necessary to create a tight fit and then
completely tighten all Hex Bolts
in
Leg/Base/Shelf assembly built
in
Steps
3,
4,
and
5 using the Hex Wrench (E).
Hardware Used
0
LONG BOLT
~
x8
G
SPRING WASHER
~
x8
G
FLAT WASHER
@)
x8
G
HEX WRENCH
~
X 1
6. -Insert Leg Levelers
Insert the Leg Levelers (G) into holes
on
the
bottom
of
the Leg Bases by spinning them
clockwise as shown
in
FIG.
6.
Hardware Used
G LEG LEVELER
7
To Next Page
