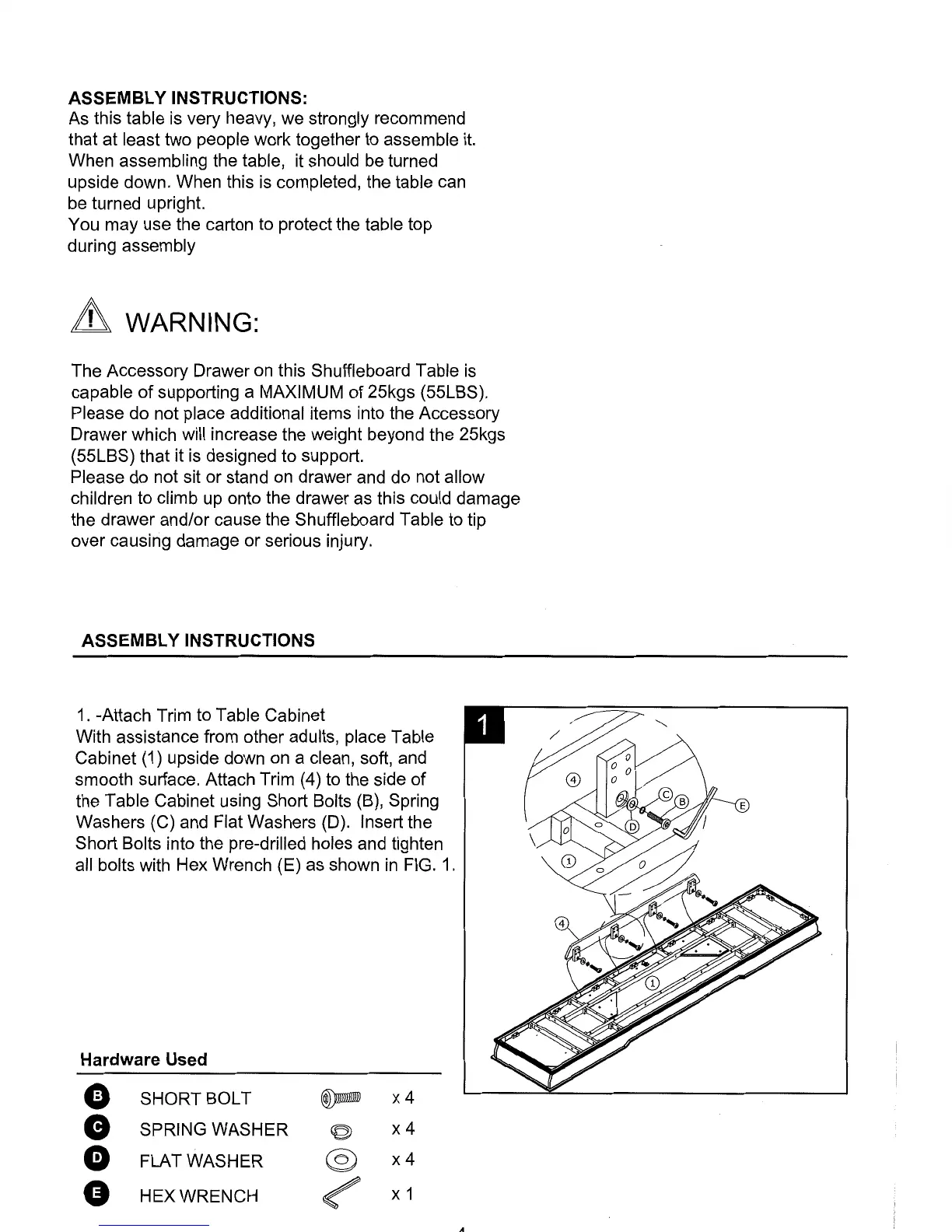

ASSEMBLY INSTRUCTIONS:
As this table
is
very heavy, we strongly recommend
that at least two people work together to assemble
it.
When assembling the table, it should
be
turned
upside down. When this
is
completed, the table can
be
turned upright.
You may use the carton to protect the table top
during assembly
~WARNING:
The Accessory Drawer
on
this Shuffleboard Table
is
capable
of
supporting a MAXIMUM
of
25kgs (55LBS).
Please do not place additional items into the Accessory
Drawer which will increase the weight beyond the 25kgs
(55LBS) that it
is
designed to support.
Please do not sit or stand on drawer and do not allow
children to climb
up
onto the drawer as this could damage
the drawer and/or cause the Shuffleboard Table to tip
over causing damage or serious injury.
ASSEMBLY INSTRUCTIONS
1.
-Attach Trim to Table Cabinet
With assistance from other adults, place Table
Cabinet (1) upside down on a clean, soft, and
smooth surface. Attach Trim (4) to the side of
the Table Cabinet using Short Bolts (B), Spring
Washers (C) and Flat Washers (D). Insert the
Short Bolts into the pre-drilled holes and tighten
all bolts with Hex Wrench (E) as shown
in
FIG.
1.
Hardware Used
0
SHORT BOLT
@1mmlm
x4
G
SPRING WASHER
©>
x4
G
FLAT WASHER
@
x4
G
HEX WRENCH
~
X 1
A
