WIRING DIAGRAM W2000
ELECTRICAL WIRING: NORTH AMERICAN MODEL
Refer to wiring diagram in the enclosure box lid for more information.

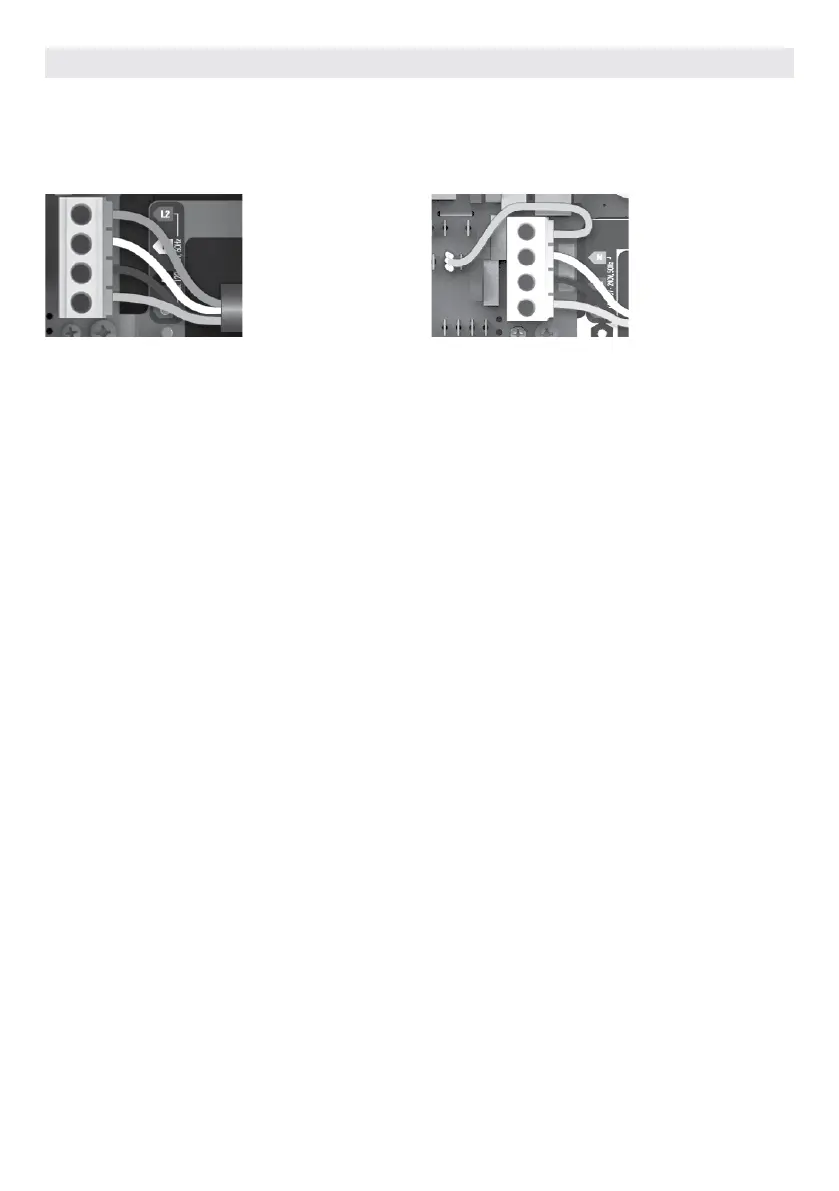

ELECTRICAL WIRING
120 V (3 WIRES)
DO NOT REMOVE THE BROWN WIRE. Insert each wire into
the appropriate socket of the main entry terminal block
according to the color code indicated on the sticker. Use a flat
screwdriver to tighten the screws on the terminal.
After making sure wires are securley connected, push them back into the box and replace the cover. Do not over tighten cover
screws (torque to 8 in.lb max {0.9 N.m.}). Connect the bonding conductor to the bonding lug on the side of the hot tub pack (a
grounded electrode conductor should be used to connect the equipment grounding conductors).
240 V (4 WIRES)
Remove the brown wire and insert each wire into the appro-
priate socket of the main entry terminal block according to
the color code indicated on the sticker. Use a flat screwdriver
to tighten the screws on the terminal.
