CONNECTING HIGH VOLTAGE ACCESSORIES: NORTH AMERICAN MODEL IN.YT
For the connection to the 0.250 inch terminals, the high voltage accessories must be provided with female quick connect termi-
nals, straight and non-insulated for all types of connections, including the ground. Accessories of 120 V or 240 V may be connected
to the corresponding terminals of the printed circuit of the in.yt. Refer to the following tables for correct connections. Note that all
female terminals must be correctly and completely seated on the printed circuit terminals for proper current ratings.

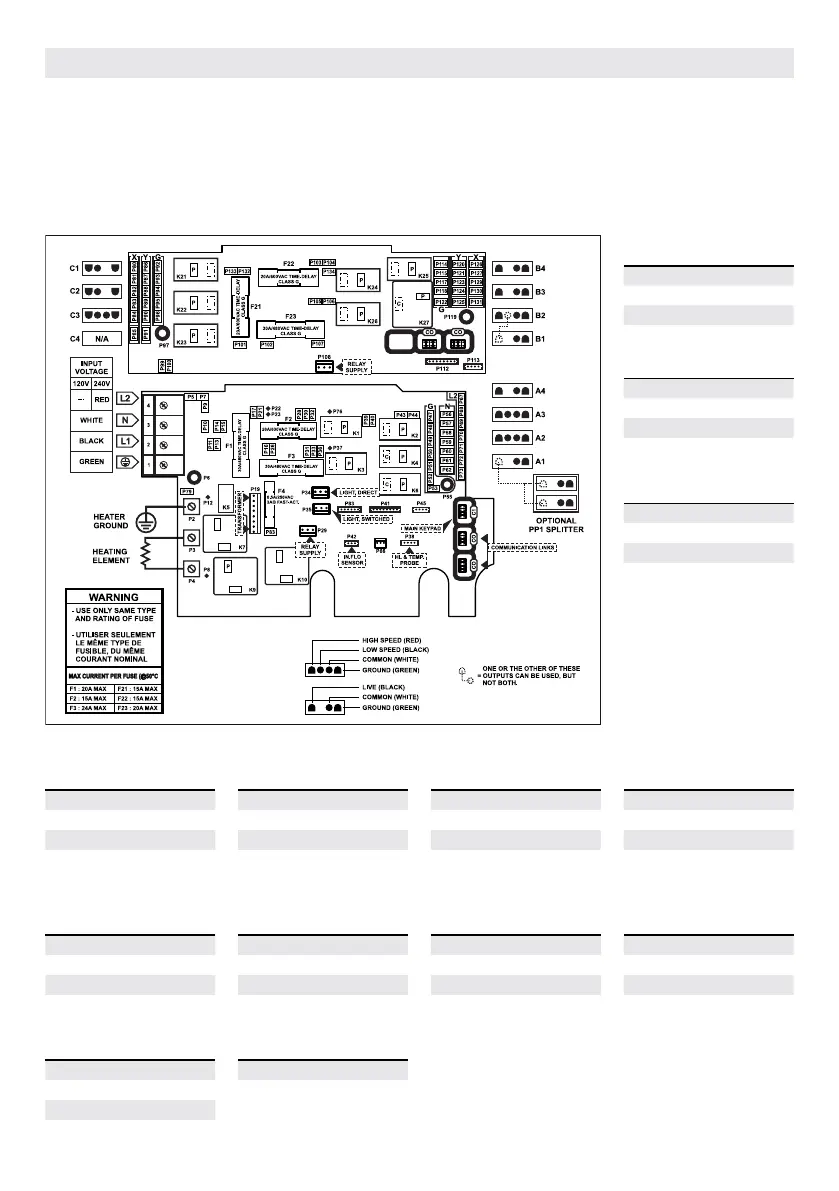

WIRING DIAGRAM  W8000
DIRECT OUTPUT 1 A4
Voltage 120 V 240 V
Green / ground P48 P48
Black / line P32 P32
White / common P57 P68
DIRECT OUTPUT 2 C1
Voltage 120 V 240 V
Green / ground P92 P92
Black / line P132 P132
White / common P86 P80
PUMP 5 B3
IN.YT12 ONLY
Voltage 120 V 240 V
Green / ground P115 P115
Black / line K24-P K24-P
White / common P121 P127
BLOWER B4
IN.YT12 ONLY
Voltage 120 V 240 V
Green / ground P114 P114
Black / line K25-P K25-P
White / common P120 P126
CIRCULATION PUMP C2
IN.YT7
Voltage 120 V 240 V
Green / ground P93 P93
Black / line K22-P K22-P
White / common P87 P81
CIRCULATION PUMP C2
IN.YT12
Voltage 120 V 240 V
Green / ground P93 P93
Black / line K23-P K23-P
White / common P87 P81
OZONATOR A1
Voltage 120 V 240 V
Green / ground P51 P51
Black / line K1-P K1-P
White / common P60 P71
LIGHT 12 V AC, 1A MAX.
Always on P34
Relay P35
PUMP 1 A3
Voltage 120 V 240 V
Green / ground P49 P49
Black / low speed K2-P K2-P
Red / high speed K4-P K4-P
White / common
P58
P69
PUMP 2 A2
Voltage 120 V 240 V
Green / ground P50 P50
Black / low speed K6-P K6-P
Red / high speed K3-P K3-P
White / common P59 P70
PUMP 3 C3
Voltage 120 V 240 V
Green / ground P94 P94
Black / low speed K22-P K22-P
Red / high speed K21-P K21-P
White / common P88 P82
PUMP 4 B2
IN.YT12 ONLY
Voltage 120 V 240 V
Green / ground P117 P117
Black / low speed K26-P K26-P
Red / high speed K27-P K27-P
White / common P123 P129
AUXILIARY B1
IN.YT12 ONLY
Voltage 120 V 240 V
Green / ground P118 P118
Black / line K26-P K26-P
White / common P124 P130
