4/7/2017 WellSoft Owner’s Manual 5
Bypass Position Service Position

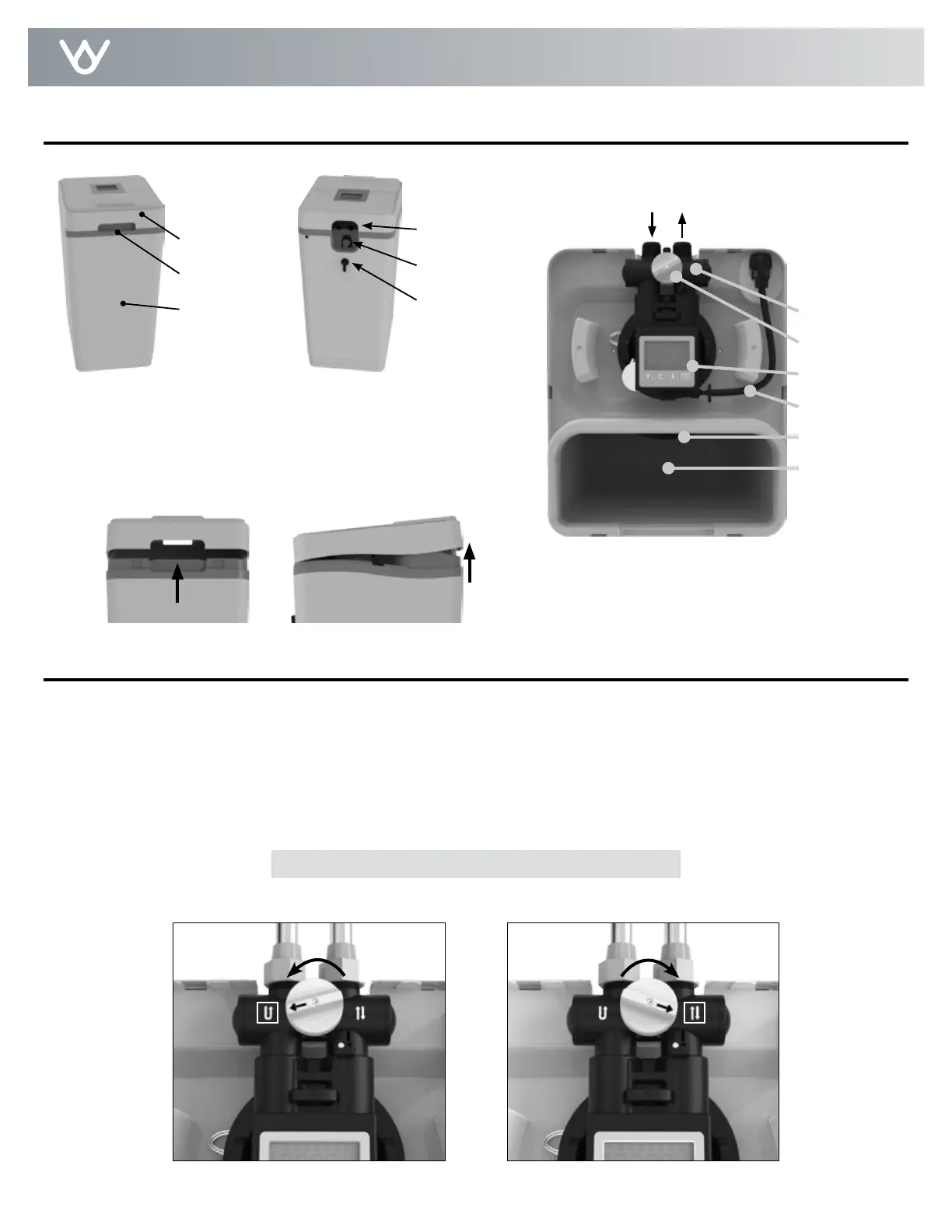

Getting To Know Your Appliance
Appliance Overview
Bypass Valve Overview
The bypass valve can isolate the appliance should the appliance malfunction or leak. It can also permit the use of
untreated water for watering plants, shrubs, or lawns.
The bypass valve is attached to the main control valve. (see Figure 1) To engage the bypass valve, locate the gray knob
on top of the bypass valve. Turn the knob counterclockwise until it hits the stop. The appliance will be bypassed and all
water to the home is raw, untreated water. To prevent untreated water from entering the home, water should not be used
inside the home when the appliance is in Bypass mode. Ensure that the appliance is returned to Service mode when the
appliance is repaired or the use of untreated water is complete by turning the gray knob clockwise until it hits the stop.
Lid Removal
The lid can be removed by grabbing either the
front or the rear of the lid and pulling it straight
up to access the valve and controller.
Front Side
Lid
Support Panel
Brine Cabinet
Valve
Drain Valve
Gravity Overflow
Connection
Bypass Valve
Bypass Knob
Controller
Brine Line
Media Tank
Brine Cabinet
In Out
Figure 1: Bypass Valve
