Wen 2312 Manual

10

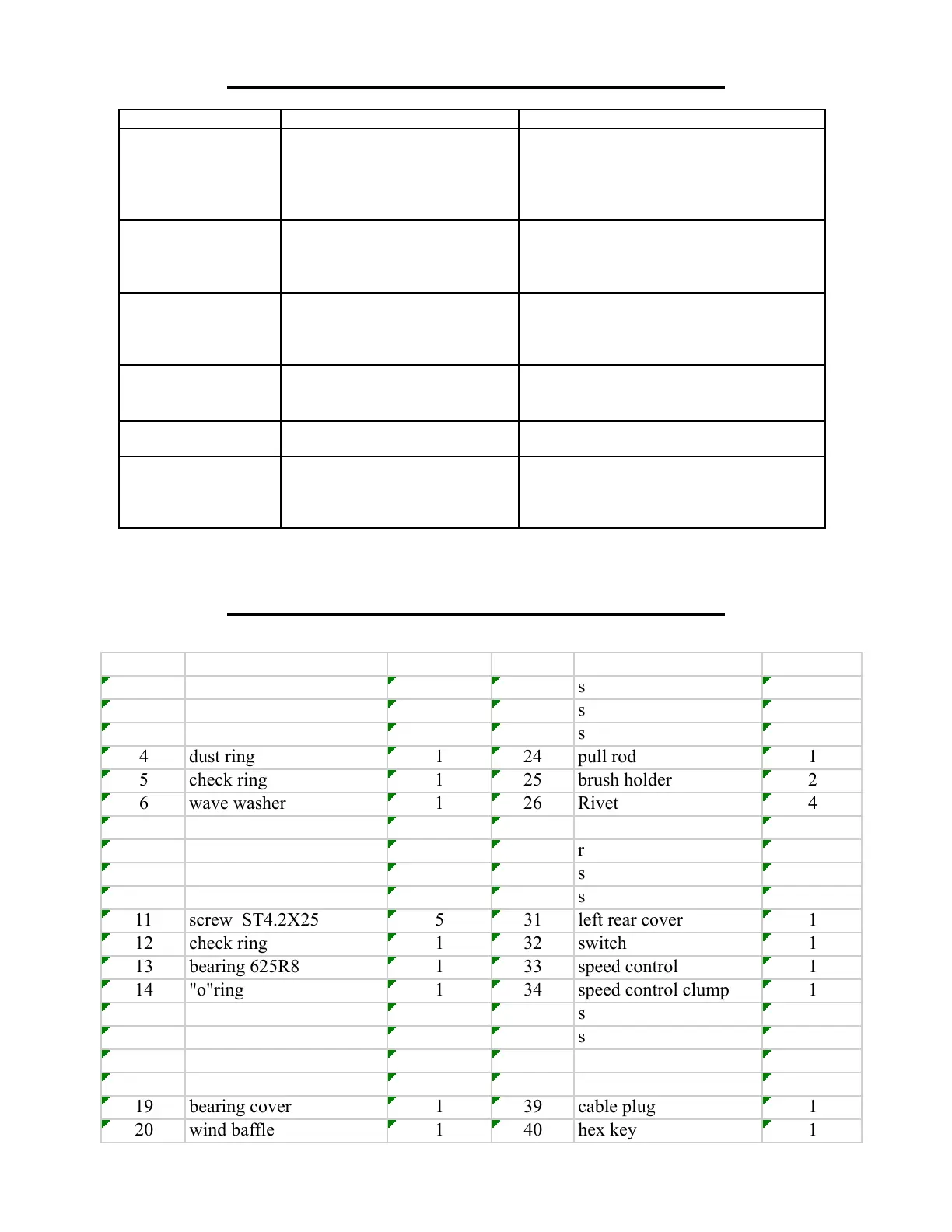

TROUBLESHOOTING
Problem Causes Solutions
Power cord not connected. Check that power cord is plugged in.
No power at outlet. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
Tool will not start.
Internal damaged or wear. (carbon
brush or switch)
Have technician service tool.
Holes on attachment not in line
with pins on spindle.
Remove the attachment and remount, making
sure that the holes in the attachment are
secured over the pins on the spindle.
Attachment is loose on
the tool.
Screw (Part# 1) not tight enough. Tighten this screw to at least 100 inch-lbs.
Tool operates slowly. Extension cord too long or wire
size too small.
Eliminate the use of the extension cord. If an
extension cord is needed, use shorter/heavier
gauge cord. See ELECTRICAL
INFORMATION section.
Attachment dull or damaged. Keep cutting accessories sharp. Replace as
needed.
Performance decreases
over time.
Carbon brushes worn or damaged. Have technician replace brushes.
Excessive noise or
rattling.
Internal damage or wear. Have technical service tool.
Overheating Forcing tool to do a job. Allow tool to work at its own rate.
Attachment dull or damaged. Keep cutting accessories sharp. Replace as
needed.
Blocked motor housing vents. Blow dust out of motor using compressed air.
NO. Name Amount NO. Name Amount
1 screw 1 21 screw ST4.4X50 2
2 clamp 1 22 stator 1
3 output shaft 1 23 switch knob 1
4 dust ring 1 24 pull rod 1
5 check ring 1 25 brush holder 2
6 wave washer 1 26 Rivet 4
7 bearing 60100 1 27 brush 2
8 swing preset 1 28 right rear cover 1
9 axle preset 1 29 screw ST4.2X30 2
10 gear box 1 30 stator housing 1
11 screw ST4.2X25 5 31 left rear cover 1
12 check ring 1 32 switch 1
13 bearing 625R8 1 33 speed control 1
14 "o"ring 1 34 speed control clump 1
15 bearing base 1 35 screw ST4.2X8F 2
16 bearing 608 1 36 screw ST4.2X12F 2
17 Armature 1 37 Cord anchorage 1
18 bearing 607 1 38 cable jacket 1
19 bearing cover 1 39 cable plug 1
20 wind baffle 1 40 hex key 1
EXPLODED VIEW AND PARTS LIST
