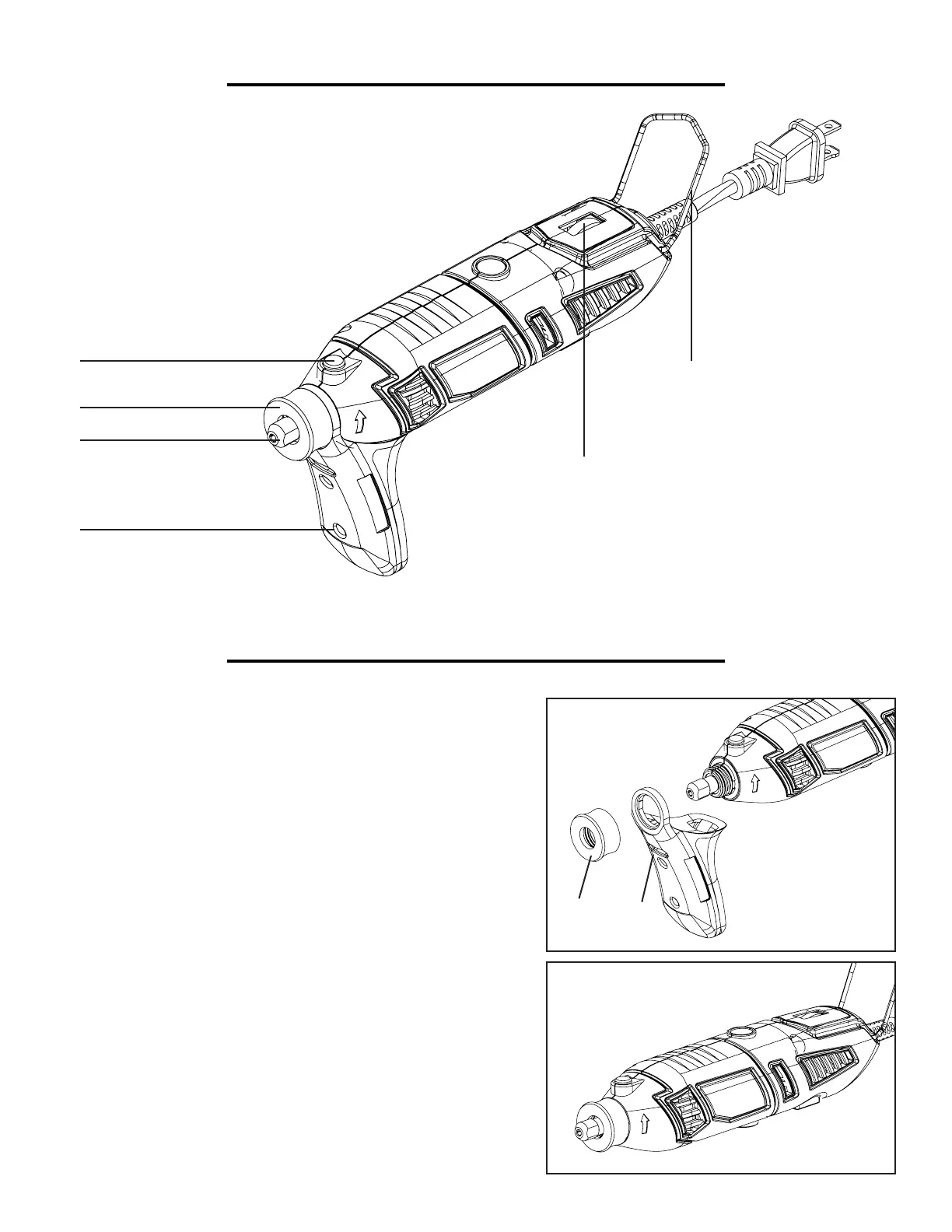

KNOW YOUR ROTARY TOOL
ASSEMBLY AND ADJUSTMENTS
Steady Grip Attachment
Locking Collar
Collet Lock Button
Rotational Speed Wheel
Hook
Collet Nut
STEADY GRIP ATTACHMENT
Your rotary tool can be used in two configurations, depend-
ing on your personal preference and the requirement of the
project.
1. The tool comes assembled with the steady grip attachment
(Fig. 1). This configuration allows you to hold the steady grip
handle instead of the rotary tool body during operation.
2. Convert it to the regular configuration by unscrewing the
locking collar (Fig. 1 - 1) and removing the stead grip attach-
ment (Fig. 1 - 2). Find the wider collar included in your kit,
and attach it onto the end of the rotary tool (Fig. 2).
Fig. 1
Fig. 2
1
2
