Wen 3424

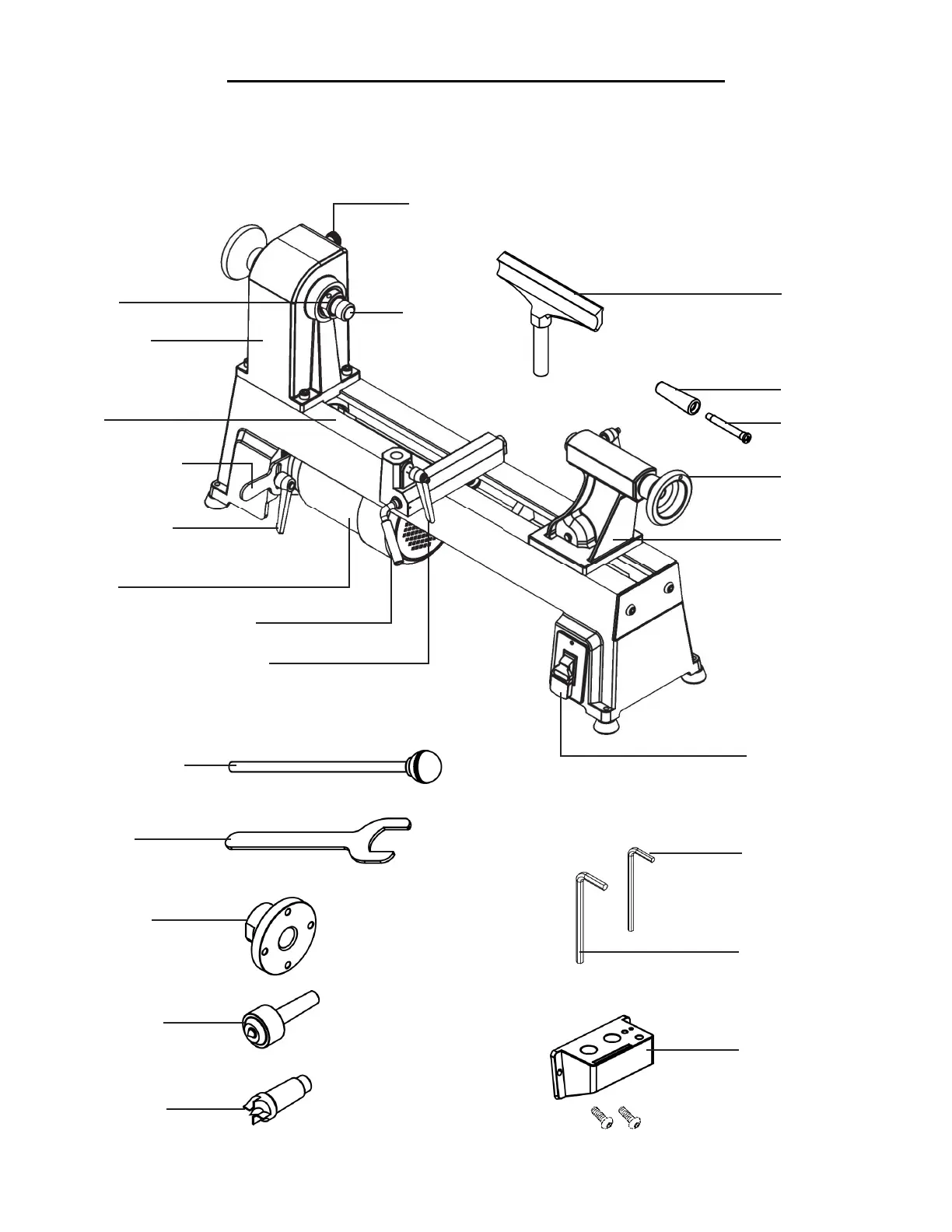

KNOW YOUR WOOD LATHE
Carefully remove the tool and all contents from the packaging. Check all components and compare against the
diagram below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F 8-5
CST or email us at techsupport@wenproducts.com.
8


Back Cover Knob
Headstock
Gauge
Bed
Power Switch
Face Plate
Live Center
(MT2)
for Tailstock
Spur Center
(MT2)
for Headstock
3mm Hex Wrench
Wrench
5mm Hex Wrench
Accessory Holder
Knockout Rod
Tool Rest


Motor Pulley
Locking Handle
Motor Support
Plate
Motor
Tailstock
Handwheel

Tool Rest Locking Handle
Tool Rest Locking Lever
Spindle


Handle
Handle Screw
Tailstock


