Wen 3650 User Manual

9

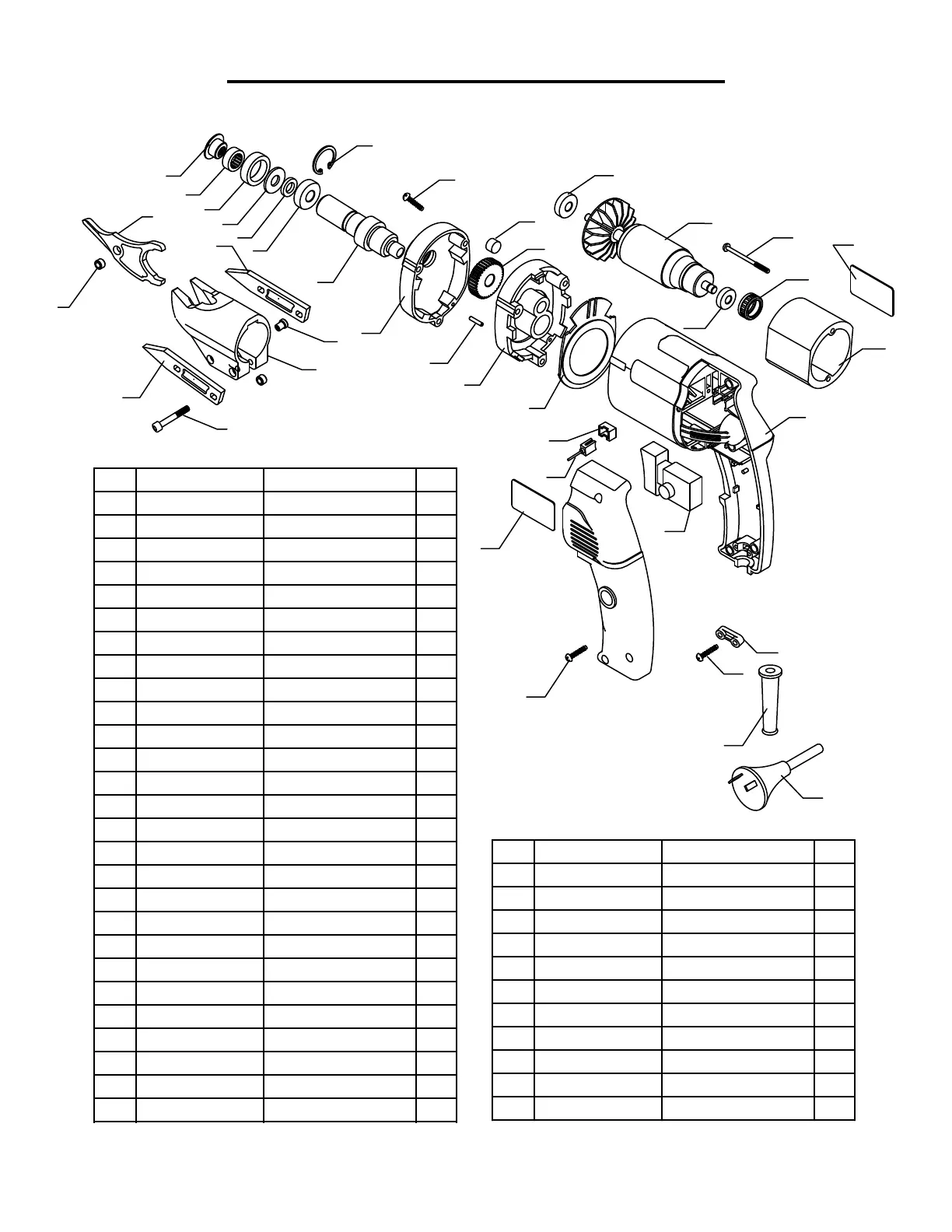

EXPLODED VIEW AND PARTS LIST
8
9
10
11
12
13
14
15
16
17
20
21
29
30
31
32
35
36
34
27
28
26
25
23
22
24
18
19
1
2
3
4
5
6
33
37
38
7
35
Electric Shear
No. Part Number Description Qty
28 3650-028 Right Label 1
29 3650-029 Carbon Brush Box 2
30 3650-030 Carbon Brush 2
31 3650-031 Left Label 1
32 3650-032 Switch 1
33 3650-033 Screw 4
34 3650-034 Housing 1
35 3650-035 Wire Collar 1
36 3650-036 Screw 2
37 3650-037 Sleeve 1
38 3650-038 Power Cord 1
No. Part Number Description Qty
1 3650-001 Middle Blade 1
2 3650-002 Bushing 2
3 3650-003 Right Blade 1
4 3650-004 Left Blade 1
5 3650-005 Nut 3
6 3650-006 Blade Collar 1
7 3650-007 Screw 3
8 3650-008 Nut 1
9 3650-009 Bearing 1
10 3650-010 Bearing Sleeve 1
11 3650-011 Washer 1
12 3650-012 Washer 1
13 3650-013 Bearing 1
14 3650-014 Spring Washer 1
15 3650-015 Shaft 1
16 3650-016 Gear Box 1
17 3650-017 Pin 1
18 3650-018 Bearing 1
19 3650-019 Gear 1
20 3650-020 Gear Box Backing 1
21 3650-021 Fan Shield 1
22 3650-022 Bearing 1
23 3650-023 Rotor 1
24 3650-024 Bearing 1
25 3650-025 Screw 3
26 3650-026 Rubber Washer 1
27 3650-027 Stator 1
