CLEANING THE WORK TABLE SURFACE
Your drill press comes protected with a layer of anti-rust coating on its exposed (non-painted) metal
surfaces, Clean the rust-protected surfaces using a soft cloth, moistened with kerosene. Do not use
gasoline, or cellulose-based solvents such as paint thinner or lacquer thinner, as these will damage
the painted surfaces.
After cleaning, apply a light coat of good-quality paste wax to the table and column to
prevent rust. Wipe all parts thoroughly with a clean, dry cloth.
PACKING LIST

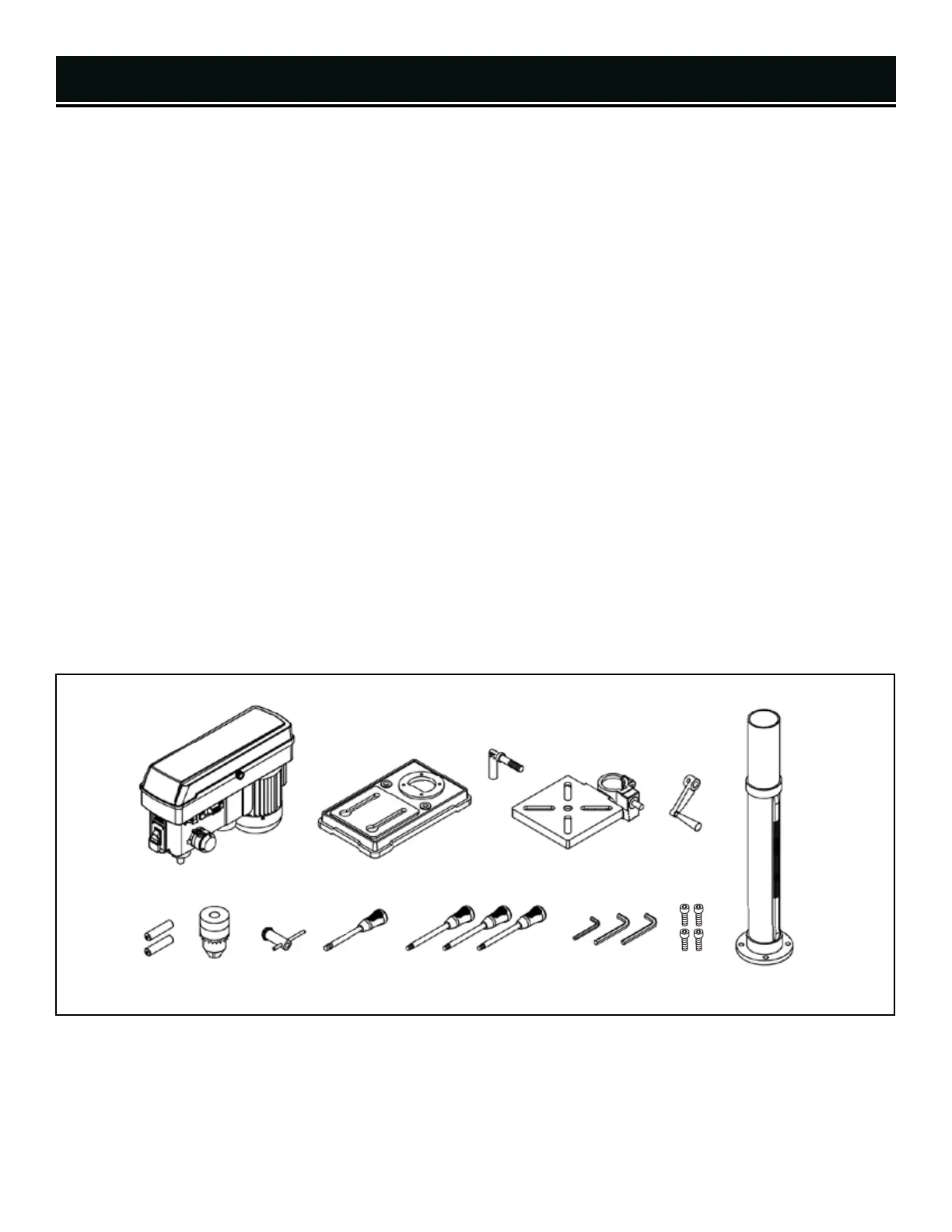

Check your packing list against the diagram below. If any part is damaged or missing, please contact
our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com
and DO NOT plug the drill press in or turn ON.
Tools needed for assembly (not included):
• Adjustable wrench • Hammer and block of wood, or rubber mallet, or dead-blow hammer
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the drill press from the packaging. Make
sure to take out all contents and accessories. Do not discard the packaging until the drill press is
completely assembled.
Before using the drill press, you must assemble the unit using the instructions in this section. Check
your packing list against the diagram below. If any part is damaged or missing, please contact our
customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.
1 2
3
4 5
6 7 8 9 10 11 12
13
Head / Motor Assembly
Base
Table Locking Handle
Table Assembly
Table Adjustment
Handle
AA Batteries (2)
Chuck
Chuck Key
Speed Adjustment
Handle
Feed Handles (3)
Hex Wrenches (3)
Socket Head Cap Screws (4)
Column Assembly
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
