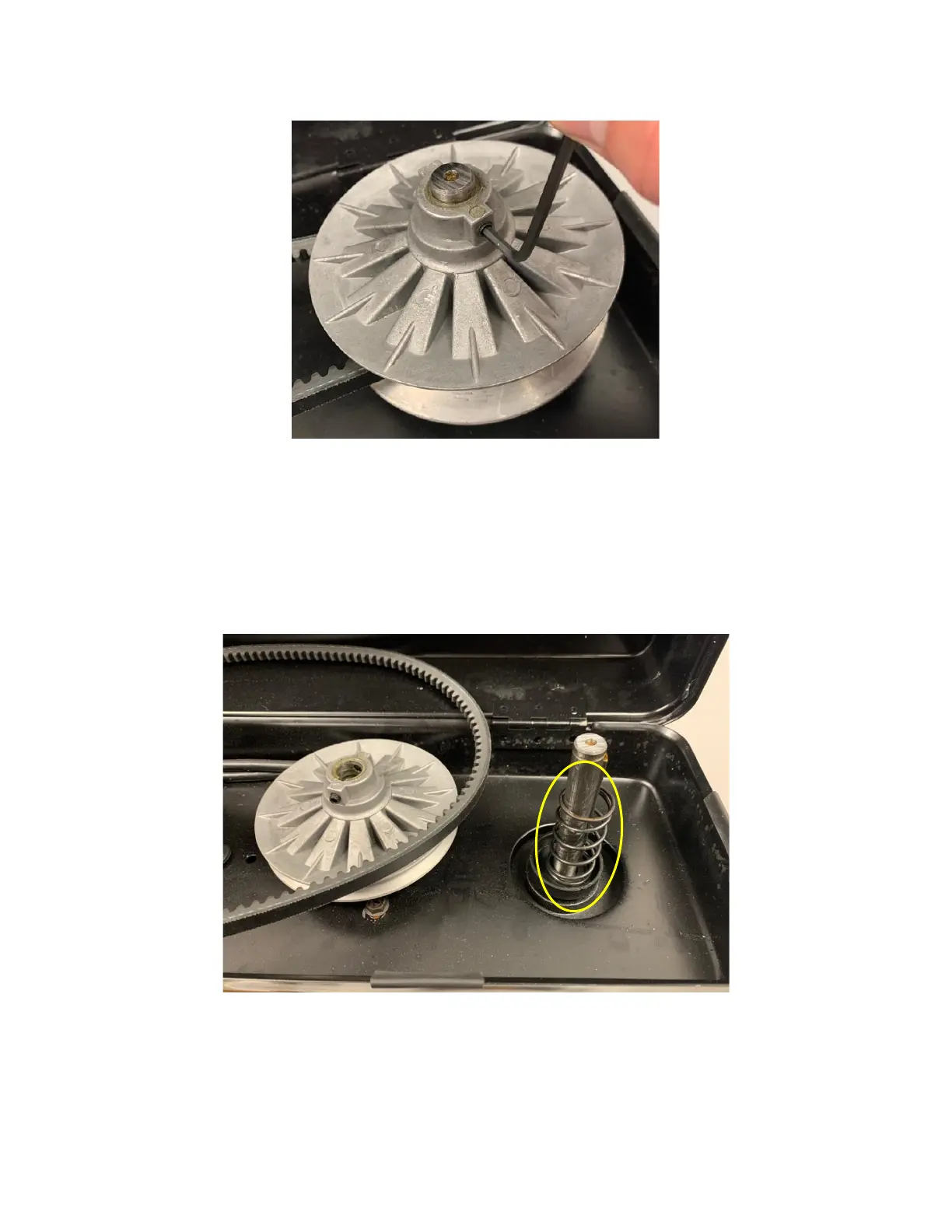

Figure 3. Loosening the Set Screws
4. Once the pulleys are removed, the motor shaft will be fully exposed as shown in Figure 4.
Remove the spring (circled in yellow) and store it in safe place. You will need to put the
spring back in place once the motor has been swapped out.
Figure 4. Motor Pulley Assembly Spring
