UNWIRING THE MOTOR
1. Once the pulley assembly is removed, the motor will need to be unwired. Start by un-
screwing the wire clipped located next to the motor, as shown in Figure 5.

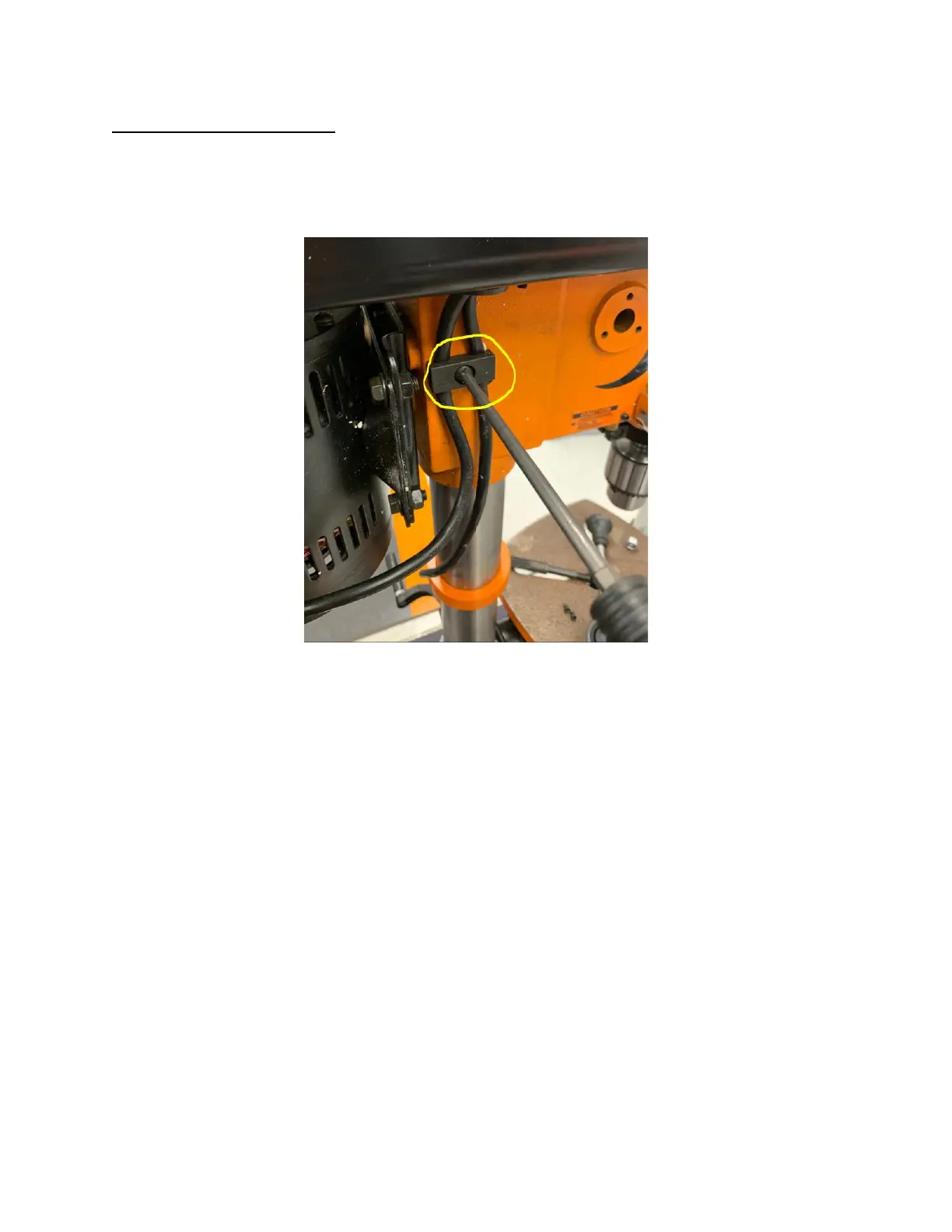

Figure 5. External Motor Cable Clip
2. Inside the drill press case, there are three additional wire clips, as shown in Figure 6.
Remove these clips as well, noting which wire is coming from the motor. It may be
helpful to take a picture of the wire routing for when you have to re-route the motor
wire.
