4214 WENPRODUCTS.COM
Assembly
and
adjustments
(continued)

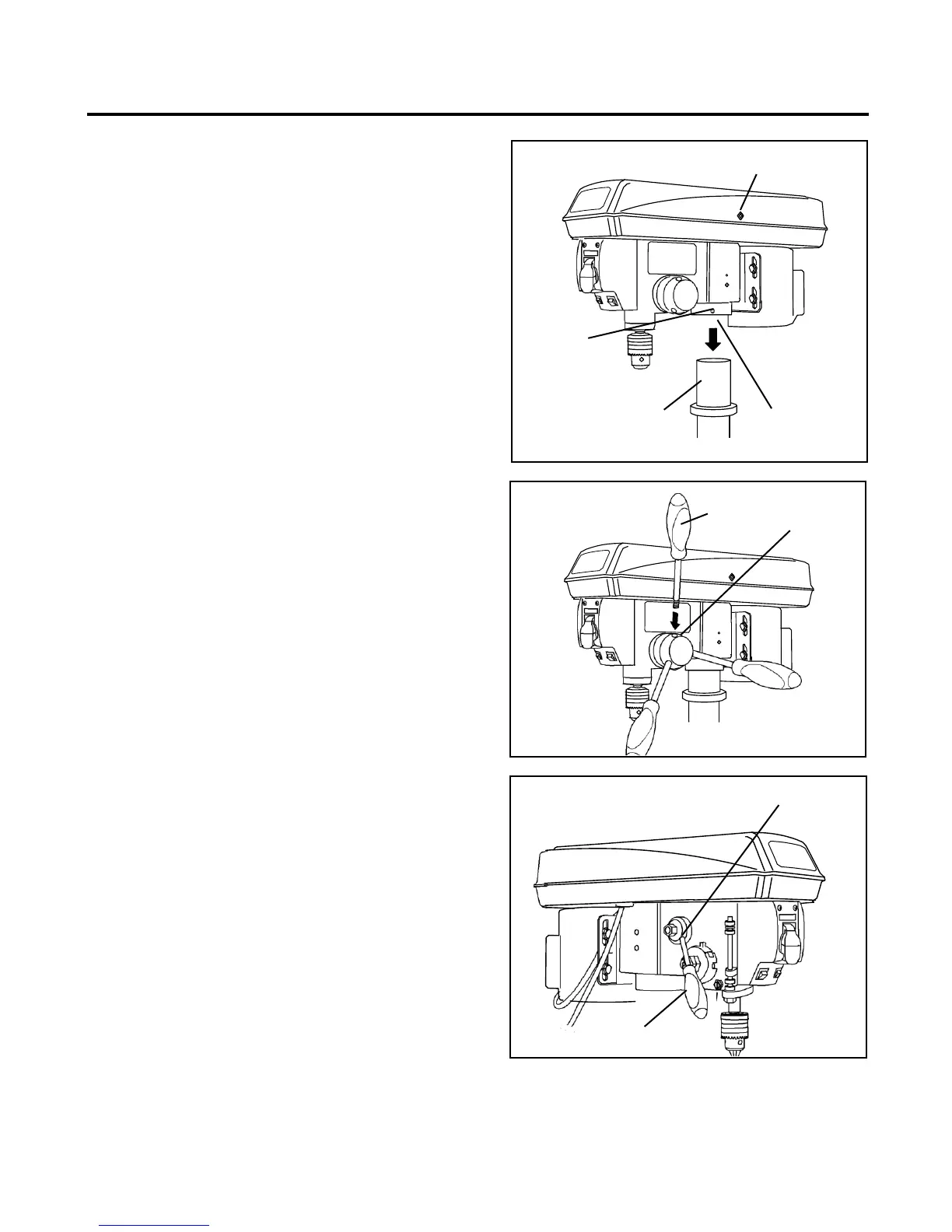

Drill press head to column (Fig. 5)
CAUTION: The drill press head is heavy. To avoid
injury, two people should lift it into position.
1. Carefully lift the drill press head assembly (1) and
position it over the column (2).
2. Place the mounting opening (3) on the drill press
head over the top of the column. Make sure the drill
press head is seated properly on the column.
3. Align the direction of the drill press head with the
direction of the base and the table.
4. Tighten the set screw (4) using a hex key.
Feed handles (Fig. 6)
1. Insert the three feed handles (1) into the
threaded openings on the feed hub (2).
2. Manually tighten handles into openings.
Note: When using the drill press, one or two of the
feed handles may be removed if an unusually-
shaped workpiece interferes with handle
rotation.
Speed handle (Fig. 7)
1. Insert the feed handle (1) into the threaded
opening on the speed hub (2).
2. Manually tighten handle into opening.
Fig. 5
1
4
2 3
Fig. 6
1
2
Fig. 7
2
1
