Operation

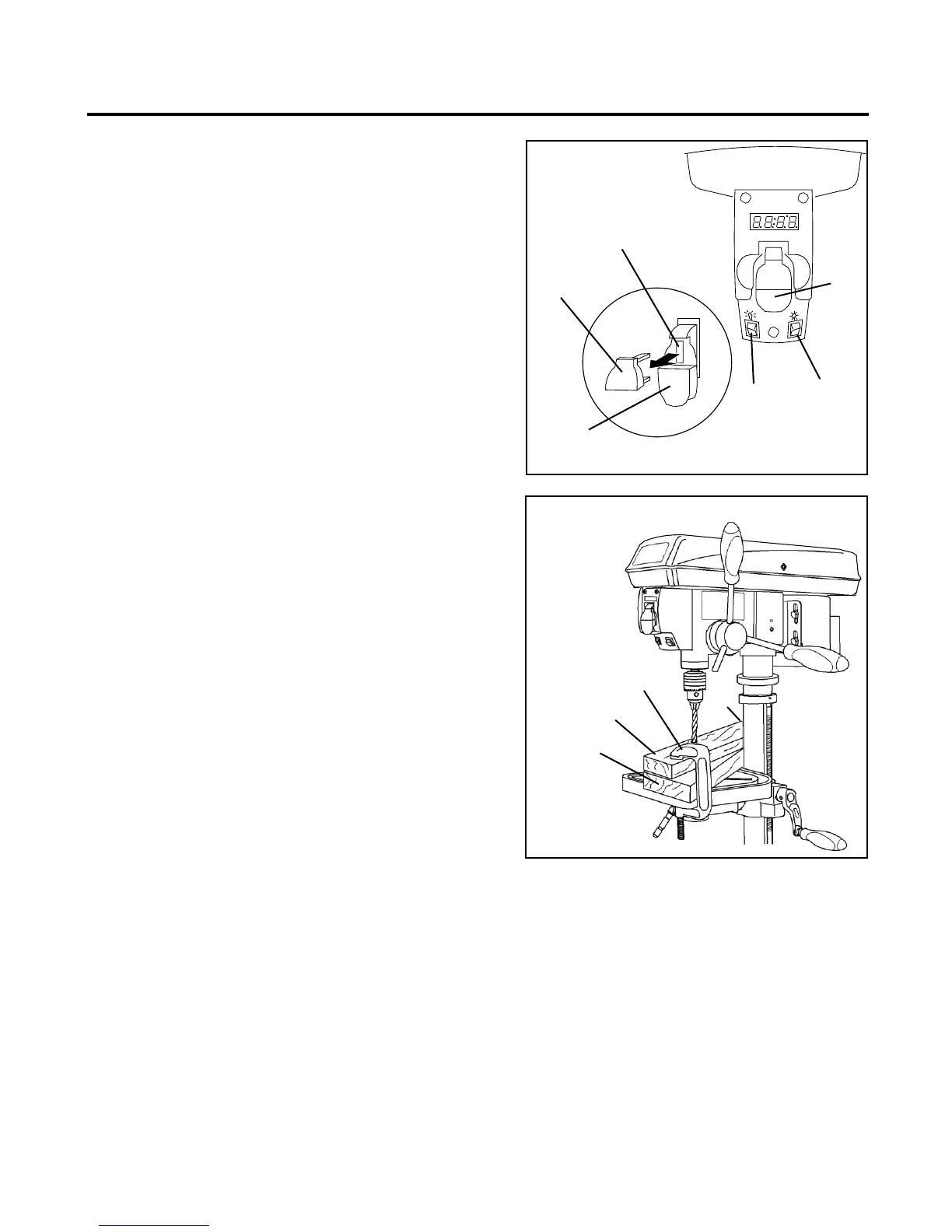

Drill Press ON/OFF switch (Fig. 23)
1. To turn the drill press ON, insert the yellow safety key
(1) into the switch housing (2). As a safety feature, the
switch cannot be turned ON without the safety key.
2. Flip the switch (3) upward to the ON position.
3. To turn the drill press OFF, press the switch
downward.
4. To lock the switch in the OFF position, remove the
safety key (1) from the switch. Store the safety key in a
safe place.
Light and laser line ON/OFF switches (Fig. 23)
The light switch (4) is located below the ON/OFF
switch on the left.
The laser switch (5) is located below the ON/OFF switch
on the right.
Position the table and workpiece (Fig. 24)
Always place a piece of backup material (1)
(wood, plywood, etc.) on the table underneath the workpiece
(2). This will prevent splintering on the underside of the
workpiece as the drill bit breaks through. To keep the
material from spinning out of control, it must contact the left
side (3) of the column as illustrated, or be clamped (4; not
included) to
the table.
Note: For small workpieces that cannot be clamped to the
table, use a drill press vise (not included). The vise must be
clamped or bolted to the table to avoid injury.
Fig. 23
2
1
3
4
5
3
Fig. 24
4
3
2
1
