4214 WENPRODUCTS.COM

Assembly

and

adjustments

Unpacking (Fig. 2)

Unpack the drill press and all its parts, and compare against the list below. Do not discard the carton or

any packaging until the drill press is completely assembled.

To protect the drill press from moisture, a protective coating has been applied to the machined surfaces.

Remove this coating with a soft cloth moistened with kerosene or WD-40

. Do not use acetone, gasoline, or

lacquer thinner to clean. Apply a coat of good paste wax to the table and column. Wipe all parts with a clean

dry cloth.

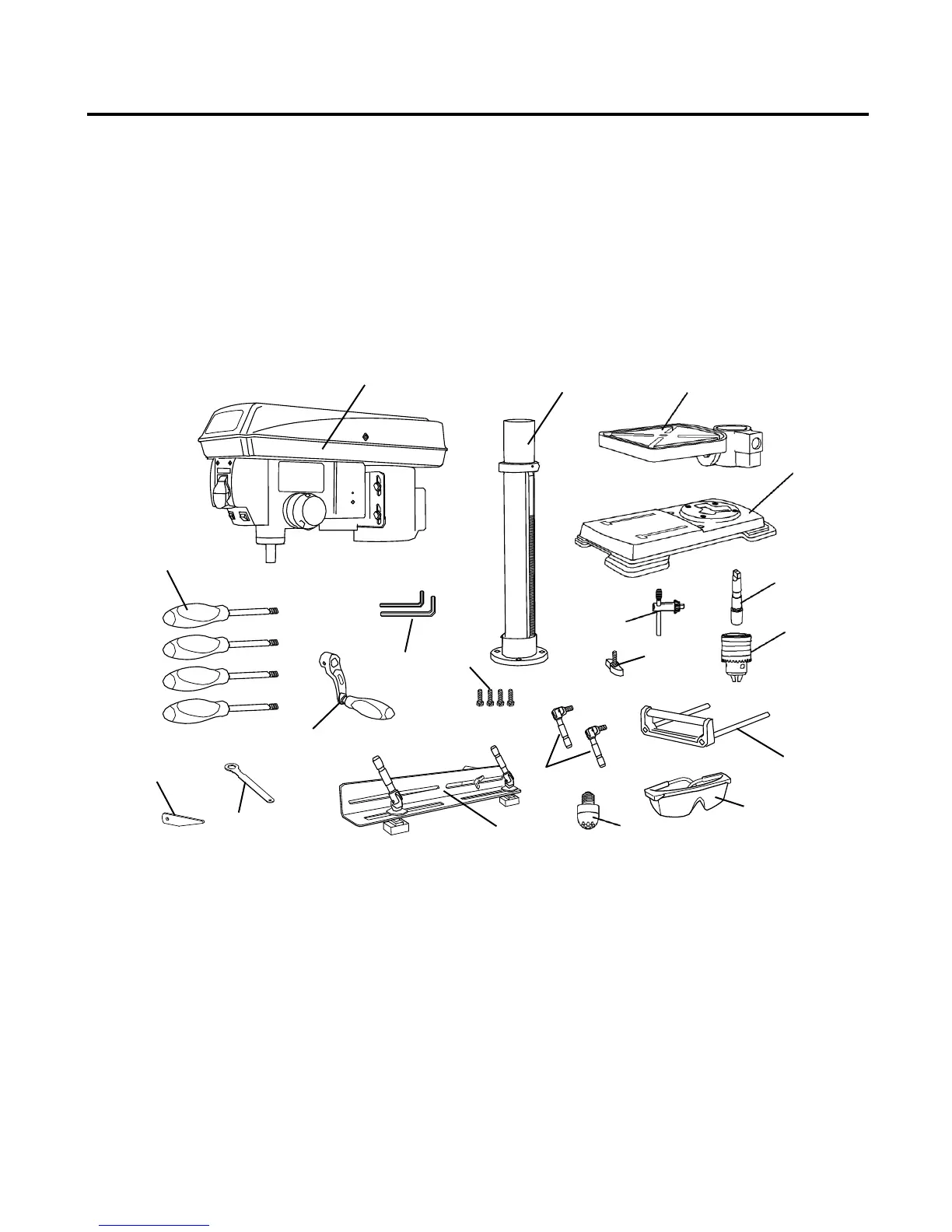

Fig. 2

Q O P

A Head/motor assembly

B Column assembly and table bracket

C Table

D Base

E Chuck arbor

F Chuck

G Extension wing with integrated rollers

H Chuck key

I Wing knobs (2)

J Table lock handles (2)

K Hex head bolts (4)

L Table crank handle

M Hex keys (2)

N Feed and speed handles (4)

O Clamp assembly

P LED bulb

Q Table adjustment wrench

R Wedge

S Laser enhancing glasses
