Assembly and adjustments (continued)

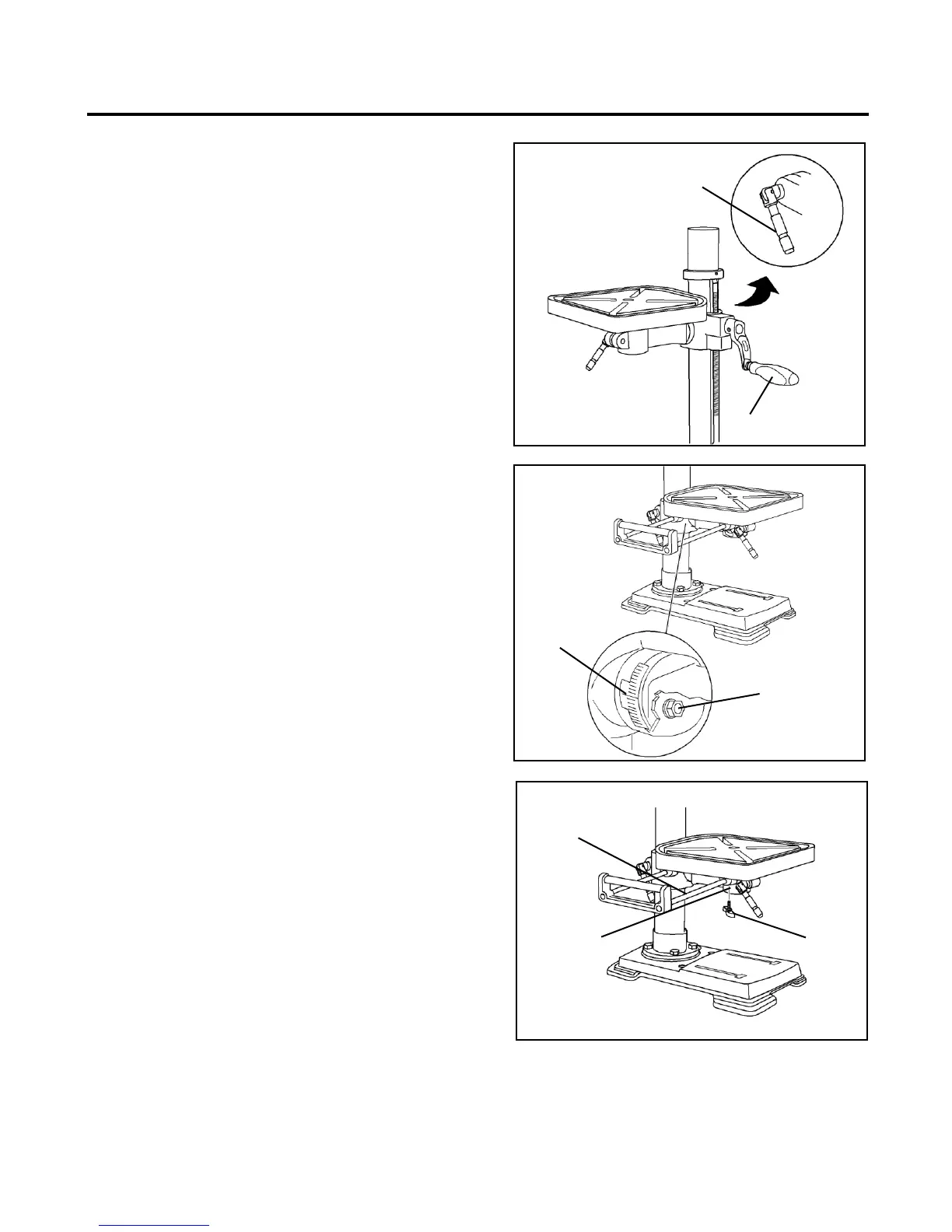

Table adjustments
Raise or lower the table (Fig. 12)
1. Loosen the support lock handle (1) and turn the
crank handle (2) until the table is at the desired
height.
2. Tighten the support lock handle before drilling.
Rotate the table (Fig. 12)
1. Loosen the support lock handle (1) and turn the table
around the column to the desired position.
Note: The rack should rotate around the column with
the table support bracket. If the rack binds
and will not rotate, slightly loosen
the set screw in the rack collar.
2. Tighten the support lock before drilling.
Tilt the table (Fig. 13)
1. Loosen the bevel lock bolt (1) with the table
adjustment wrench provided, or with a suitable
socket wrench.
2. Tilt the table to the desired angle, using the bevel
scale (2) as a basic guide.
3. Re-tighten the bevel lock bolt.
4. To return the table to its original horizontal
position, loosen the bevel lock bolt (1).
5. Realign the table to the 0° setting on the bevel scale
(2).
6. Tighten the bevel lock bolt with the wrench.
Install the table extension (Fig. 14)
1. Insert the two rods (1) of the table extension into the
two channels (2) at the side of the table.
2. Place a wing knob (3) in the opening on the bottom
of each channel and tighten to secure the extension
to the table.
Fig. 12
1
2
Fig. 13
2
1
Fig. 14
1
2
3
