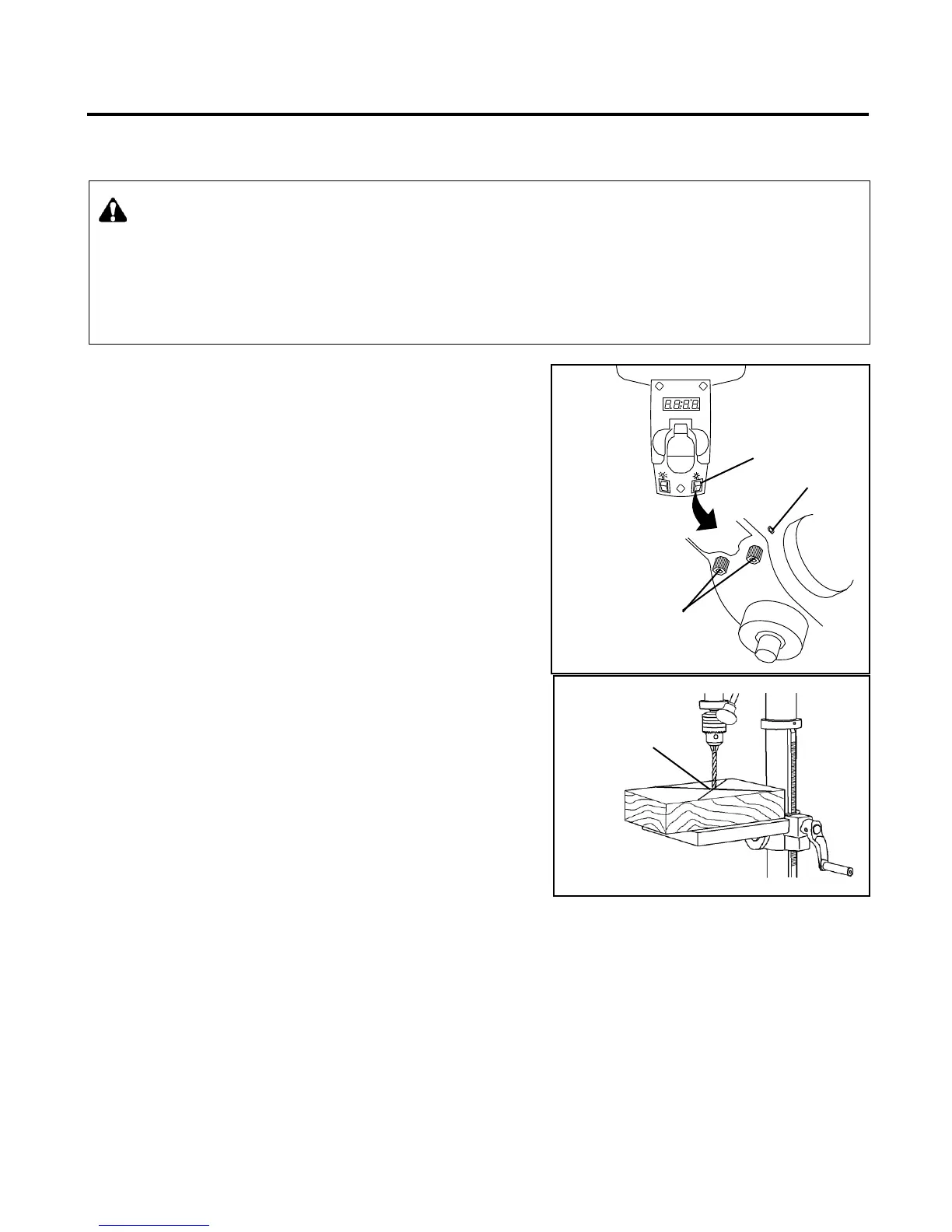

Laser line (Fig. 17 and 18)
WARNING: Do not stare directly at the laser beam! A hazard may exist if you deliberately
stare into the beam. Please observe all safety rules.
• Never aim the beam at any person or an object other than the workpiece.
• Do not project the laser beam into the eyes of others.
• Always make sure the laser beam is aimed at a workpiece that dos not possess reflective surfaces as
the laser beam could be projected into your eyes or the eyes of others.
1. Place a workpiece on the table.
2. Turn the laser switch (1) to the ON position.
3. Lower the drill bit to meet the workpiece (2). The two laser
lines should cross where the drill meets the workpiece.
4. If the laser needs to be adjusted:
a. Using a 3 mm hex key, turn the laser adjustment
set screws (3) counterclockwise.
b. Rotate the laser light housing (4) until the two
laser lines intersect where the drill meets the
workpiece. DO NOT stare directly at the laser
lines.
5. Re-tighten the adjustment set screws (3).
Fig. 17
1
3
4
Fig. 18
2
