4286 3D drawing

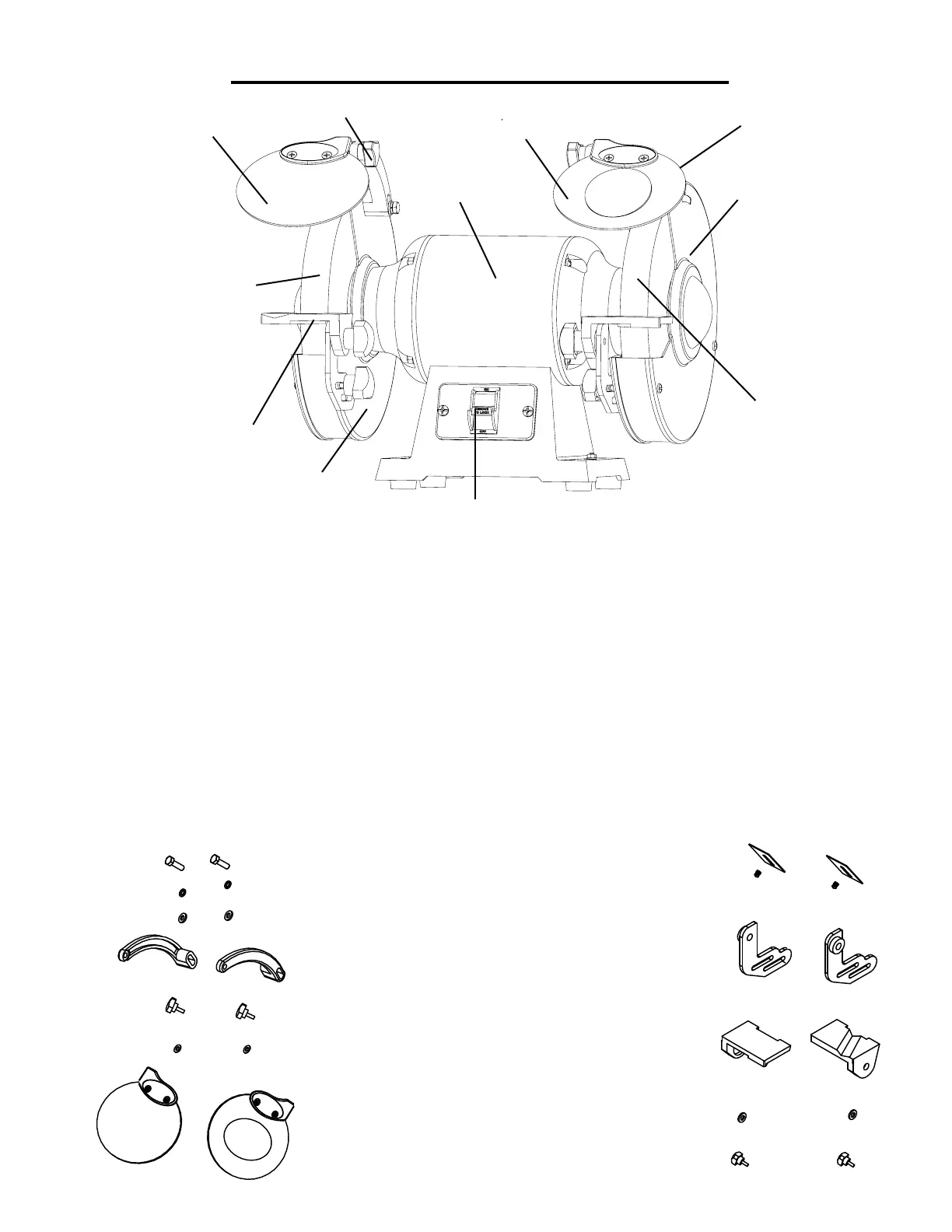

KNOW YOUR GRINDER

1. INNER WHEEL GUARD - Covers the grinding

wheels and protects against accidental contact.

2. TOOL RESTS - Used to support the workpiece.

Adjustable to provide angled surfaces.

3. 120-GRIT GRINDING WHEEL- Used to remove

light material from workpiece.

4. EYE SHIELD - Protective see-through shields to

prevent any loose debris from contacting the operator.

5. LOCKING KNOB - Lock the eye shield in position.

6. SPARK ARRESTOR - Prevents hot sparks and de-

bris from contacting the operator.

7. WHEEL COVER - Covers the grinding wheels and

provides quick access for routine maintenance.

8. 60-GRIT GRINDING WHEEL - Used to remove

light material from workpiece.

9. ON/OFF SWITCH WITH SAFETY LOCK

10. MOTOR HOUSING - Contains the electrical mo-

tor.

1. Inner Wheel Guard

4. Eye Shield

5. Locking Knob

6. Spark Deflector

8. Grinding Wheel

(60 Grit)

10. Motor

Housing

9. ON/OFF Switch

7. Wheel

Cover

4. Eye Shield

2. Tool Rests

3. Grinding Wheel

(120 Grit)

A: Hex Bolt M6x30

B: Spring Washer D6

C: Flat Washer D6

D: Eyeshield Rod

E: Eyeshield Locking Knob

F: Flat Washer D5

G: Eyeshield Assembly

H: Spark Deflector

I: Philips Screw + Flat Washer + Spring Washer Assembly M5x10

J: Fixed Work Rest

K: Movable Work Rest

L: Flat Washer D6

M: Work Rest Locking Knob

PACKING LIST

A. Two Hex Bolts (M6x30)

B. Two Spring Washers (D6)

C. Two Flat Washers (D6)

D. Two Eye Shield Rods

E. Two Eye Shield Locking Knobs

F. Two Flat Washers (D5)

G. Two Eye Shield Assemblies

H. Two Spark Deflectors

I. Two Phillips Screws/Flat Washer/

Spring Washer Assemblies (M5x10)

J. Two Fixed Tool Rest Brackets

K. Two Movable Tool Rests

L. Two Flat Washers (D6)

M. Two Work Rest Locking Knobs
