KNOW YOUR INVERTER GENERATOR

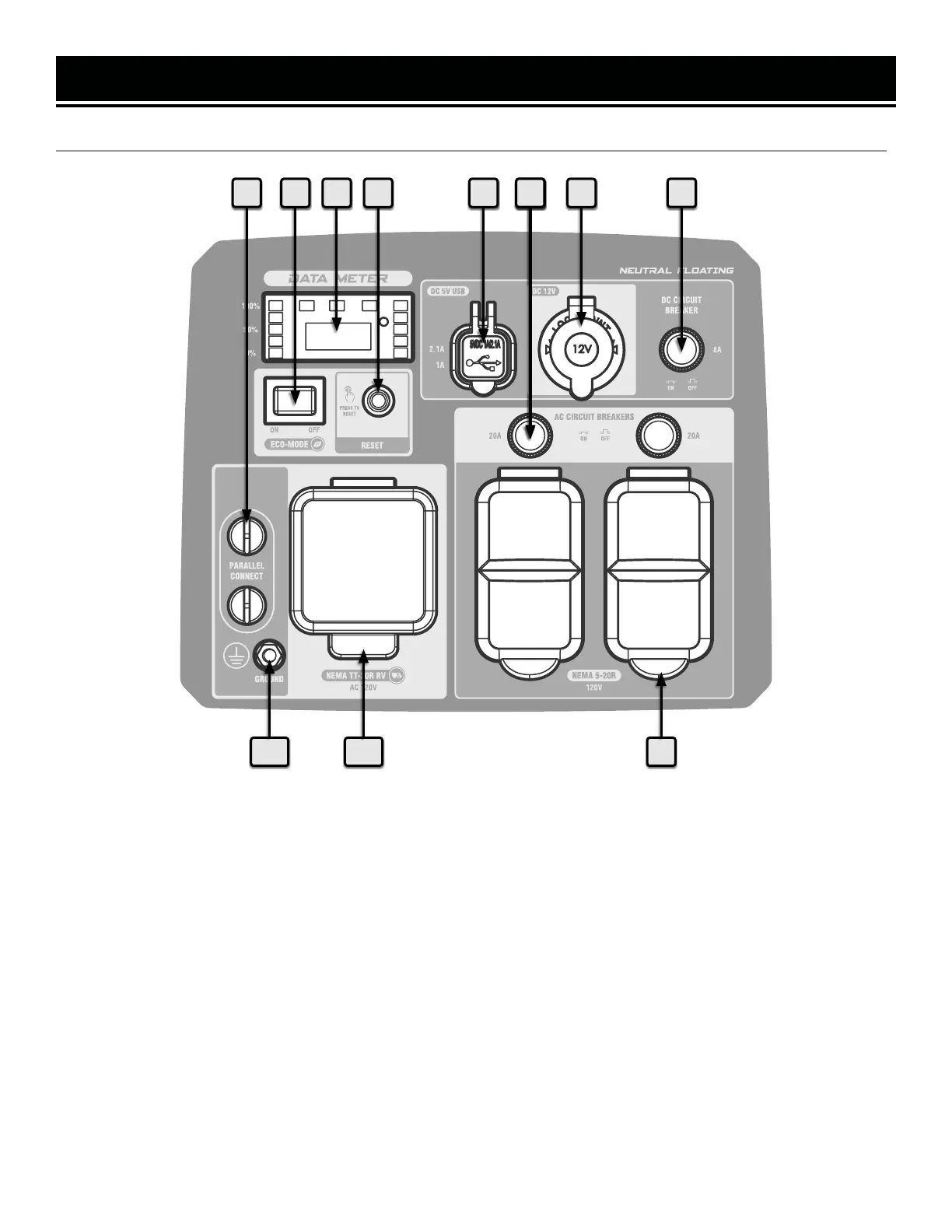

CONTROL PANEL
2 3 4 5
1. Parallel Connection
Connect to share wattage between inverter generators.
2. Eco-Mode Switch
Maximizes fuel economy & run time.
3. Data Meter with Indicator Light
Displays load level (left), fuel level (right), voltage (e.g.
V120), frequency (e.g. F60.0), session runtime (e.g. A
0.0), and total runtime (e.g. 0.0). Press MODE to switch
between displays.
4. Reset Button
Press to reset the circuit in case of overload.
5. 5V USB Port
1A & 2.1A for charging various electronic devices.
6. AC Circuit Breakers (20A)
Press to reset.
7. 12V DC Outlet
Cigarette-style outlet provides DC power.
8. DC Circuit Breaker (8A)
Press to reset.
9. AC 120V NEMA 5-20R Duplex Receptacles
Standard household outlets provide 120V 60Hz power.
10. AC 120V NEMA TT-30R RV Receptacle
Standard RV connector.
11. Grounding Nut
Ground the generator to reduce the risk of electric shock.
11
9
74
6 8
10
1
11
