ASSEMBLY AND ADJUSTMENT

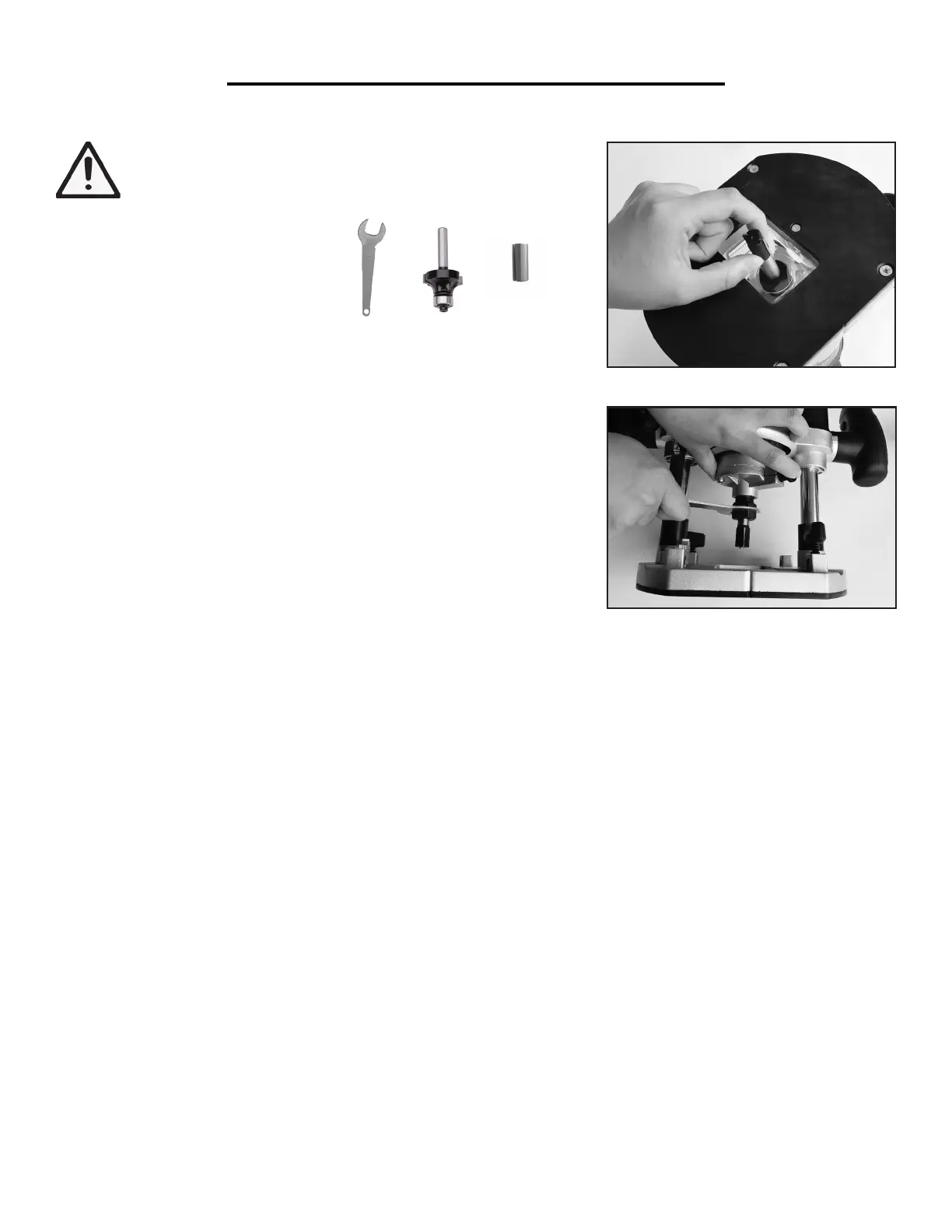

INSTALLING & REMOVING ROUTER BITS
WARNING: Router bits are extremely sharp. Take care
when handling bits as they can cause serious injury.
Make sure that the router bit you wish to use is suitable for your router.
It must be capable of operating at the rotation speed of 23,000 RPM.
Before use, check the bit carefully for any cracks or chips. Do not use a
bit that shows signs of damage. Carefully read the instructions included
with your router bit.
1. Switch off the router and unplug the cord.
2. Adjust the depth stop pole to be lower than the top of the router and
place the router upside down on a flat surface (Fig. 9).
3. To insert a bit with 1/2" shank:
Loosen the collet nut. Insert the router bit all the way into the collet as
10
Fig. 9
Fig. 10
What you need:
• Wrench
• Router Bit (not included)
• 1/4" Shank Adaptor (Optional)
far as it will go and retract the bit by 1/16" to 1/8". Finger tighten the collet nut until the bit is held in place.
To insert a bit with 1/4" shank:
First insert the router bit into the 1/4" shank adaptor. Loosen the collet nut and insert the router bit with shank
adapter into the collet as far as it will go and retract the bit by 1/16" to 1/8". Finger tighten the collet nut until the bit
is held in place.
4. Press down the spindle lock button to prevent the collet spindle from rotating.
5. Fully tighten the collet nut with the included wrench and remember to remove the wrench from the collet nut.
Check that the bit is securely installed.
CAUTION: The router bit shank must fit the size of the collet. If the router bit cannot be firmly gripped by the
collet, it will become loose during operation and result in serious personal injury.
6. Release the spindle lock and make sure the bit can spin freely.
7. Turn on the router to check for any abnormal vibration or wobbling. This may indicate that the bit is damaged
or improperly installed.
8. To remove the router bit, make sure the router is switched off and the cord is unplugged. Press down the spindle
lock and loosen the collet nut with the wrench. Remove the bit from the collet.
