DIRECTIONAL EXHAUST DEFLECTOR (FIG. 8)
Air will be released from the air outlet during operation. Ro-
tate the directional exhaust deflector (Fig. 9) on the top of
the nailer to direct the released air to your preferred direc-
tion, away from yourself and others.
PREPARATION & ADJUSTMENTS

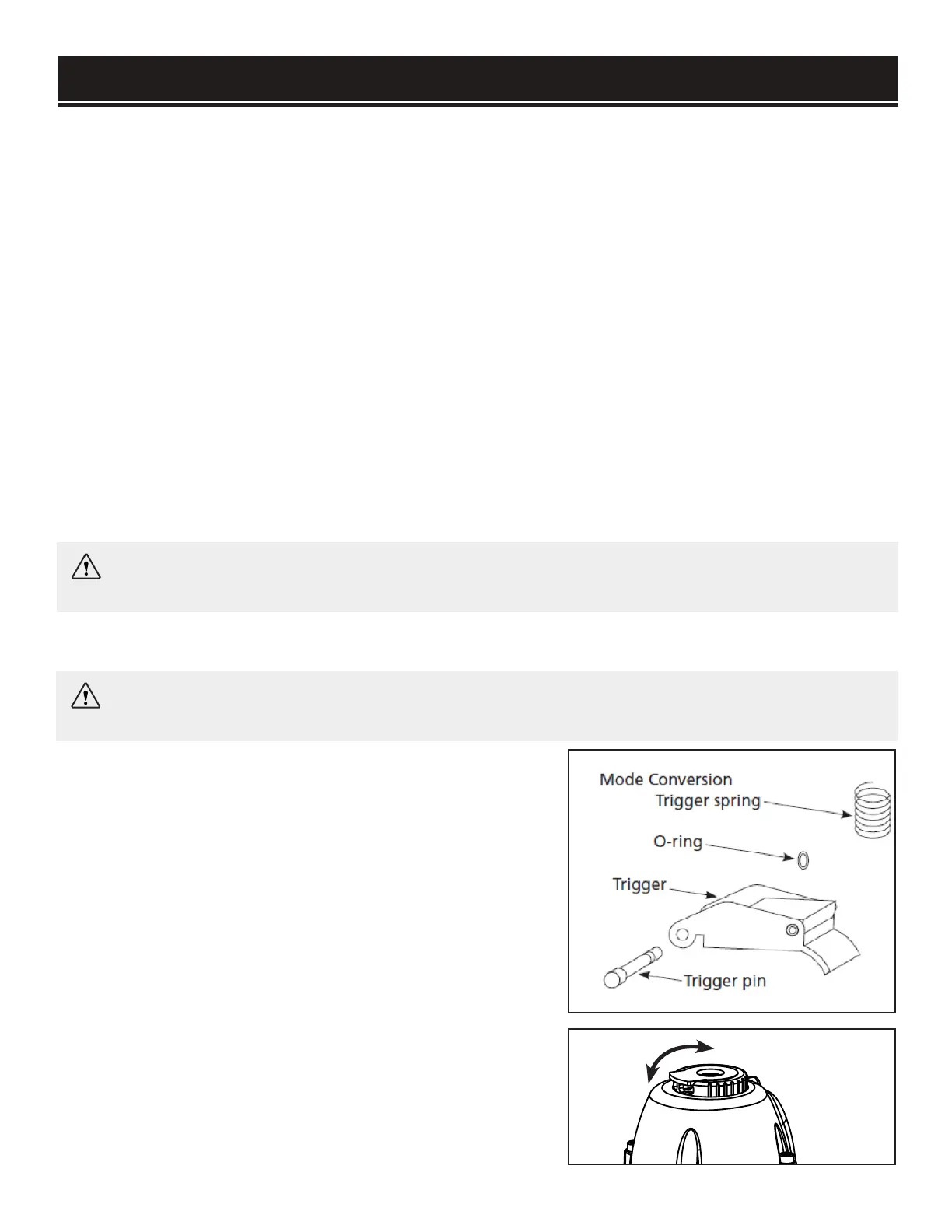

Fig. 7
Fig. 8
11
TYPES OF TRIGGERS
Because we’re nice people, we have included two different triggers that you can use with the WEN Coil Roof-
ing Nailer depending on the task at hand.
TO CHANGE THE TRIGGER (FIG. 7)
To swap out the trigger switch (Fig. 7):
1. Remove the o-ring on the side of the trigger pin.
2. Remove the trigger pin, the trigger and the trigger spring.
3. Swap the trigger switch out for the alternative trigger.
4. Replace the trigger spring, the trigger, the trigger pin and
the o-ring.
WARNING: Disconnect air line from tool and remove fasteners from magazine before making ad-
justments or personal injury may result.
WARNING: Never put your finger on the trigger unless you are prepared for operation. Unintended
nails can be discharged when the trigger is engaged and the safety bracket is pressed by accident.
Single Sequential Trigger (Black Trigger):
This trigger prevents the nailer from being able to bump fire. To fire a nail, first press down the safety bracket
and then pull the trigger. Only one nail will be driven each time. This trigger is the preferred method for safer
operation and detailed nailing jobs.
Rapid Fire Trigger (Red Trigger):
This trigger allows for nails to be shot quickly, one after another. This allows users to bump fire, by keeping
the trigger engaged while bumping the safety bracket to fire one nail after the other. This trigger is best for
larger jobs where speed is more important than precision. However, there is also a higher chance of misfiring
when this mode is being used.
NOTE: When this trigger is installed, double firing may occur if the safety bracket is engaged between
shooting nails. So make sure to release the safety bracket after driving each na
il to prevent double fir
ing.
