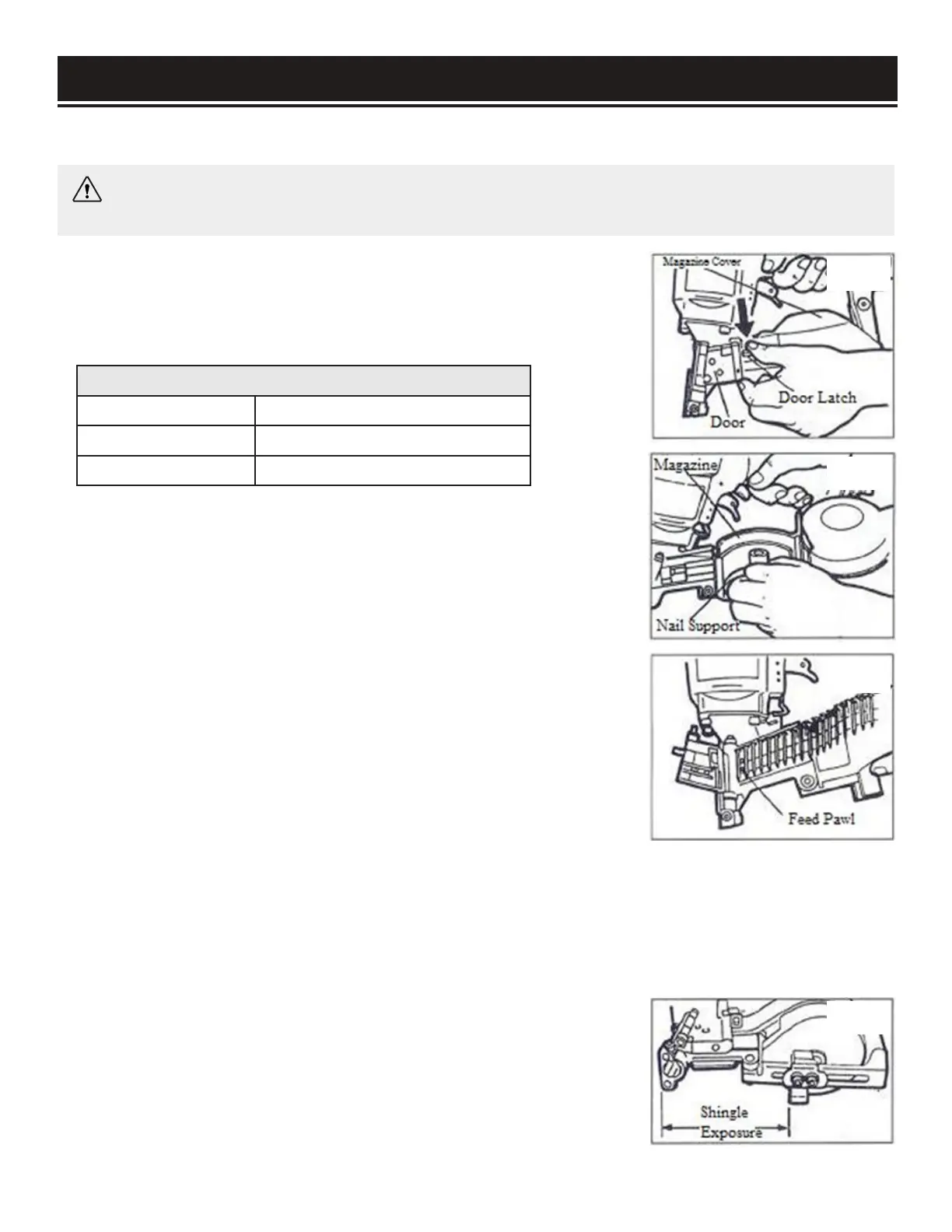

1. Open the magazine. Pull down the door latch (Fig. 3) and swing door
open to the left. Then swing the magazine cover open to the right.
2. Use only the recommended fasteners according to the specifications.
STEP 4: LOADING THE FASTENERS (FIG. 3 TO 5)
SHINGLE GUIDE (FIG. 6)
The shingle guide can be used to control shingle spacing. Using the in-
cluded hex wrench, loosen the screw on the base of the magazine, adjust
the gauge to the desired shingle exposure, and re-tighten the screw.
PREPARATION & ADJUSTMENTS
Fig. 3
Fig. 4
Fig. 5
Fig. 6
WARNING: Always load the fasteners after connecting the air supply. Never aim the tip of the
nailer at a person or animal in case of misfire.
10
NAIL SPECIFICATIONS
Nail Length 3/4" to 1-3/4"
Nail Diameter 0.12" (11 Gauge)
Nail Shank Type Screw, Ring or Smooth
3. Check the adjustment for the size of nail to be inserted. The nail sup-
port can be moved up or down to several settings. A gauge is located on
the side of the magazine noting the position for each size nail.
To change the setting, twist the knob atop the post; twist clockwise to
raise the support (shorter nails) or counterclockwise to lower the support
(longer nails). The nail support should be adjusted to the position as fol-
lows:
• 1-3/4” nails – use bottom stop;
• 1-1/4”, 1-1/2” – use middle stop;
• 3/4”, 1” – use top stop.
4. Place the coil of nails over the post in the magazine. Uncoil enough
nails to reach the feed pawl, and place the second nail between the teeth
on the feed pawl. The nail heads rest in the channel running along the top of the nose.
5. Swing the magazine cover closed.
6. Close the door, check the latch engages (if the latch does not engage, check that the nail heads are in the
slot on the nose).
