ASSEMBLY
WARNING: To prevent injury from accidental operation, make sure the tool is switched OFF and un-
plugged from the power source before assembling the tool or making any adjustments.

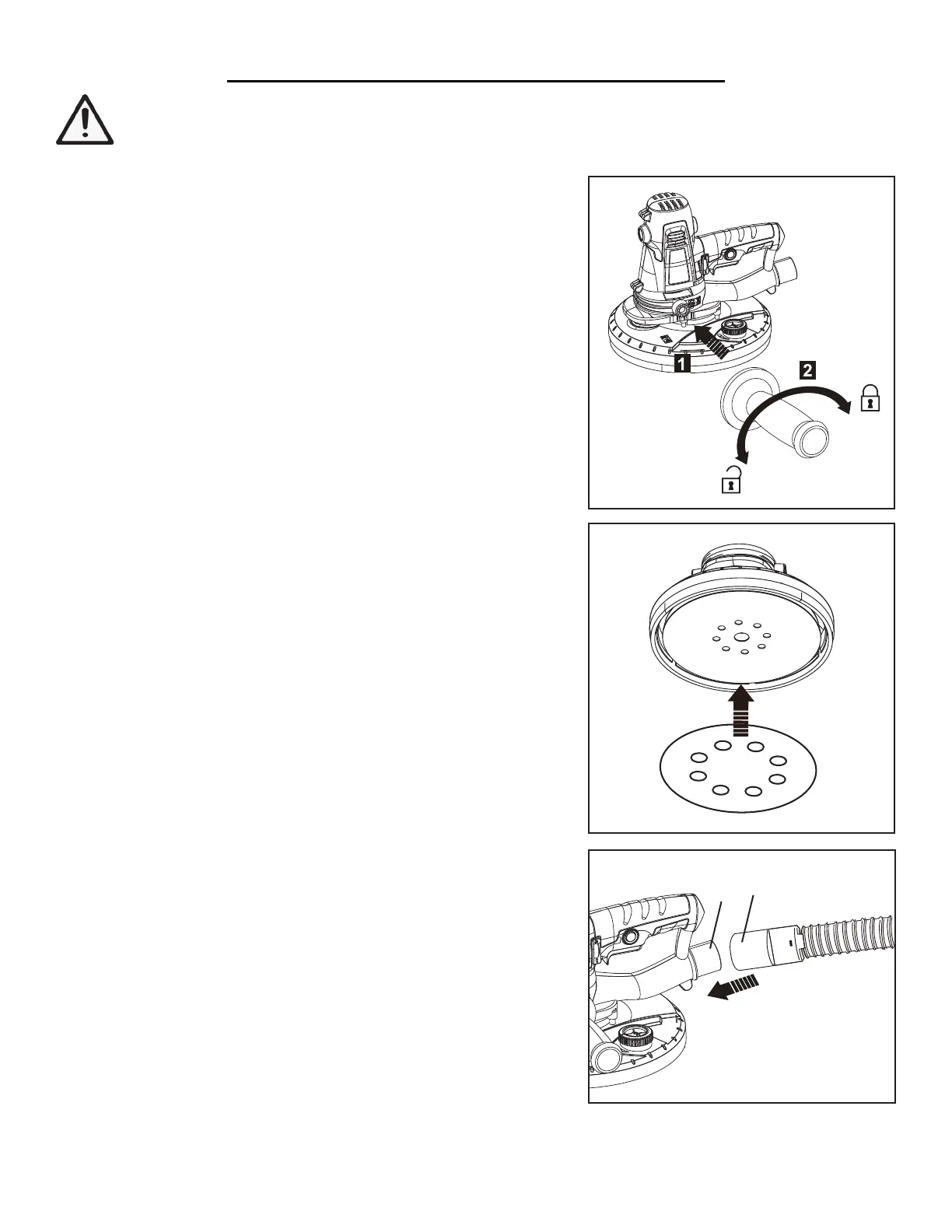

Fig. 1
Fig. 2
Fig. 3
10
ATTACHING THE AUXILIARY HANDLE
For safe operation, the auxiliary handle must be installed. The handle
can be assembled onto either side of the tool, depending on your pref-
erence. Thread the handle into the mounting hole and turn it clock-
wise to tighten (Fig. 1). Make sure the handle is securely mounted.
When operating the tool, hold on to the main handle and auxiliary
handle to prevent loss of control.
ATTACHING AND CHANGING SANDING DISCS
Your tool comes with 150, 180, 240 and 400 grit sanding discs for dif-
ferent sanding requirements.
Attach the sanding disc of your choice to the center of the hook and
loop base pad. The holes in the sanding disc must align with the dust
extraction hole in the base pad (Fig. 2).
Replacement sanding discs can be ordered from wenproducts.com by
searching the part number 6369SP+Grit Size (e.g. 6369SP240).
ATTACHING THE DUST HOSE
Align and insert the dust port connector (Fig. 3 - 1) all the way onto
the dust port on the back of your sander (Fig. 3 - 2). The dust hose
is connected to a dust bag to collect dust during sanding operations.
CONNECTING TO A DUST EXTRACTOR
Alternative to using the dust bag, you can also connect your sander
to a dust extractor. Your sander comes with three sizes of adapters, a
1-7/8-inch adapter, a 1-1/4-inch adapter (located inside the 1-7/8-inch
adapter), and a 2-1/4-inch adapter.
Connect the dust hose to a suitable adapter and connect it to the dust
extractor of your choice.
NOTE: Your sander comes with a 7.5-feet dust hose to allow ease of
use with the dust bag. If you need a longer hose, a 15-feet dust hose is
available for purchase from wenproducts.com, by searching the part
number 6369-103.
1
2
