ASSEMBLY AND ADJUSTMENTS
INSTALLING THE DUST CHUTE

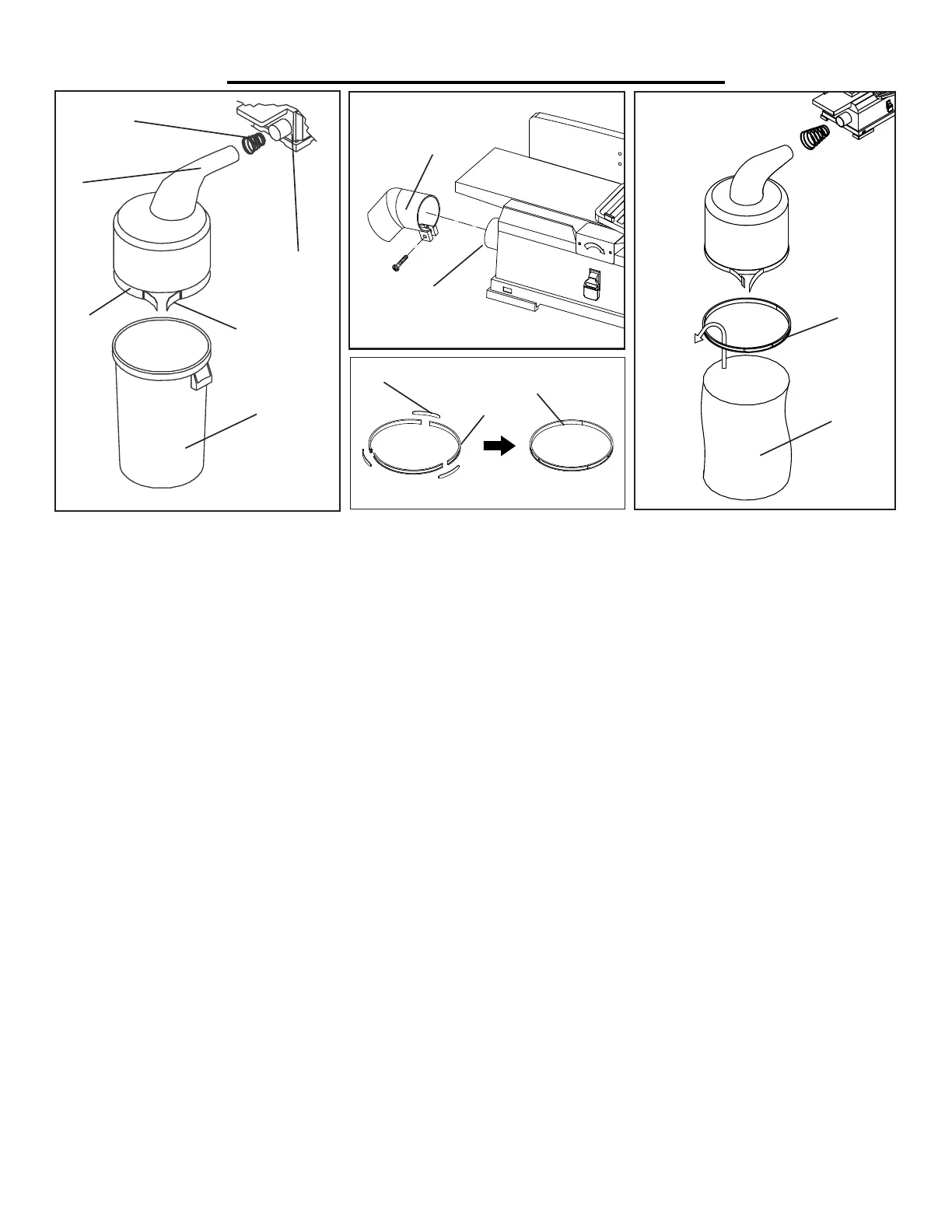

Slide the dust chute (Fig. D - 1) onto the end of the chip exhaust (Fig. D - 2). Tighten the pan head screw.
INSTALLING THE HALF BAG DUST COLLECTION SET
The half bag dust collection set is designed to provide dust collection for woodworking tools using the 2.5-inch
diameter dust exhaust port. The filter bag attaches to a 30-gallon trash can or a 30-gallon plastic trash bag for easy,
convenient saw dust collection and disposal.
For dust collection with a trash can:
1. Place the spring (Fig. E - 5) inside of the filter bag arm (Fig. E - 4).
2. Slide the arm with the spring over the dust exhaust port (Fig. E - 6).
3. Place the band (Fig. E - 3) of the bag over the rim of the trash can (Fig. E - 1) and secure the bag in place by
tightening the strap (Fig. E - 2).
For dust collection with a trash bag:
1. Assemble the bag support (Fig. F - 3). Slide the connectors (Fig. F - 1) into the channels of the support segments
(Fig. F - 2).
2. Place the spring (Fig. E - 5) inside of the filter bag arm (Fig. E - 4).
3. Slide the arm with the spring over the dust exhaust port (Fig. E - 6).
4. Slide the plastic trash bag inside and over the bag support (Fig. G - 2) let the bag overlap 3 to 4 inches.
5. Place the band of the filter bag (Fig. G - 1) over and into the channel of the bag support.
6. Secure it in position by tightening the strap.
