MACHINE MOUNTING
For safe operation, the machine must be secured onto a flat, secure workbench or stand. The base of the machine
has four 6 mm mounting holes. Place the sander on the mounting surface, and insert a pencil through the mounting
holes to mark the hole locations. Remove the sander and drill out the mounting holes. Then align the sander base
over the mounting holes and secure the machine using four mounting bolts, washers, locking washers and hex nuts
(mounting hardware not included). Securely tighten the hex nuts.
For temporary mounting, secure the sander to a mobile mounting board and use 2 large C-Clamps to secure the
mounting board to a solid surface.
TIP: Your spindle sander is compatible with the WEN MSA658T Multipurpose Planer Stand, available at wen-
products.com. Forget measuring and drilling holes on your workbench. Simply mount your machine onto the
stand with pre-drilled holes, and transport your machine around the workshop with ease.
DUST COLLECTION
To connect a dust collection system to the machine:
1. Fit a 1.5-inch dust hose (not included) over the dust port
and secure the hose in place with a hose clamp if needed (not
included).
2. Tug the hose to make sure the fitting is tight. A tight fit is
necessary for proper performance.
3. Connect the other end of the dust hose to the dust collection system of your choice. A dust port adapter may be
needed (not included), depending on the inlet size of your dust extractor. The dust port has an outer diameter of 1.5
inches, and an inner diameter of 1.4 inches.
NOTE: Failure to use a dust collection system will void the warranty on this item. You must use a dust collection
system for the warranty to be valid.
ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure
to follow the safety instructions may result in serious personal injury.

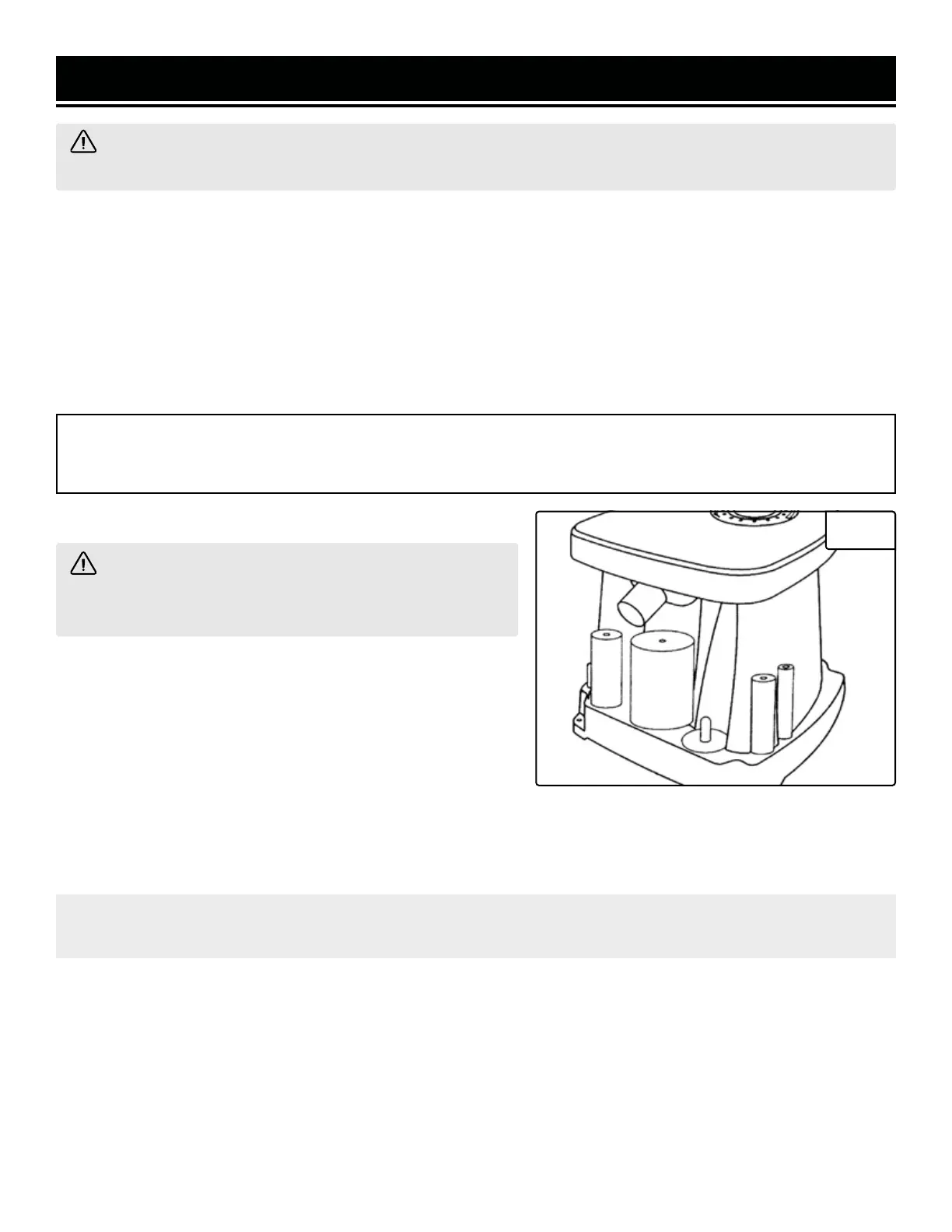

Fig. 3
WARNING! Sanding operations are dusty and can pro-
duce particles that are harmful to your health. Always wear
a dust mask and use an adequate dust collection system.
