ASSEMBLY & ADJUSTMENTS

9. INSTALLING THE FILTER BAG

Hang the ﬁlter bag (white) onto the hook of the upper bag

support pole. Attach the bag over the top opening of the

collector. Secure it with a bag clamp (O).

10. INSTALLING THE COLLECTION BAG

Attach the plastic collection bag over the bottom open-

ing of the collector around the rubber strip. Bag clips are

located around the collector to assist in holding up the

collection bag. The clips are placed slightly above the legs

so that the bag can be held at the suitable height. Simply

lift the metal plate of the clips and tuck in the bag. Then,

use the second bag clamp (O) to secure the bag all the

way around the collector.

11. INSTALLING THE HANDLE

Install the handle (N) onto the back of the collector using

M8x20 hex screws as shown.

NOTE: When transporting the dust collector, only pull on

the handle. Do not use the support poles for transporta-

tion purposes as they are not designed for pulling and

might come loose.

Your dust collector is now ready to be placed into ser-

vice. Before connecting to a power source, be sure the

power source is properly grounded and is of proper

voltage and amperage (See page 7, Electrical Informa-

tion).

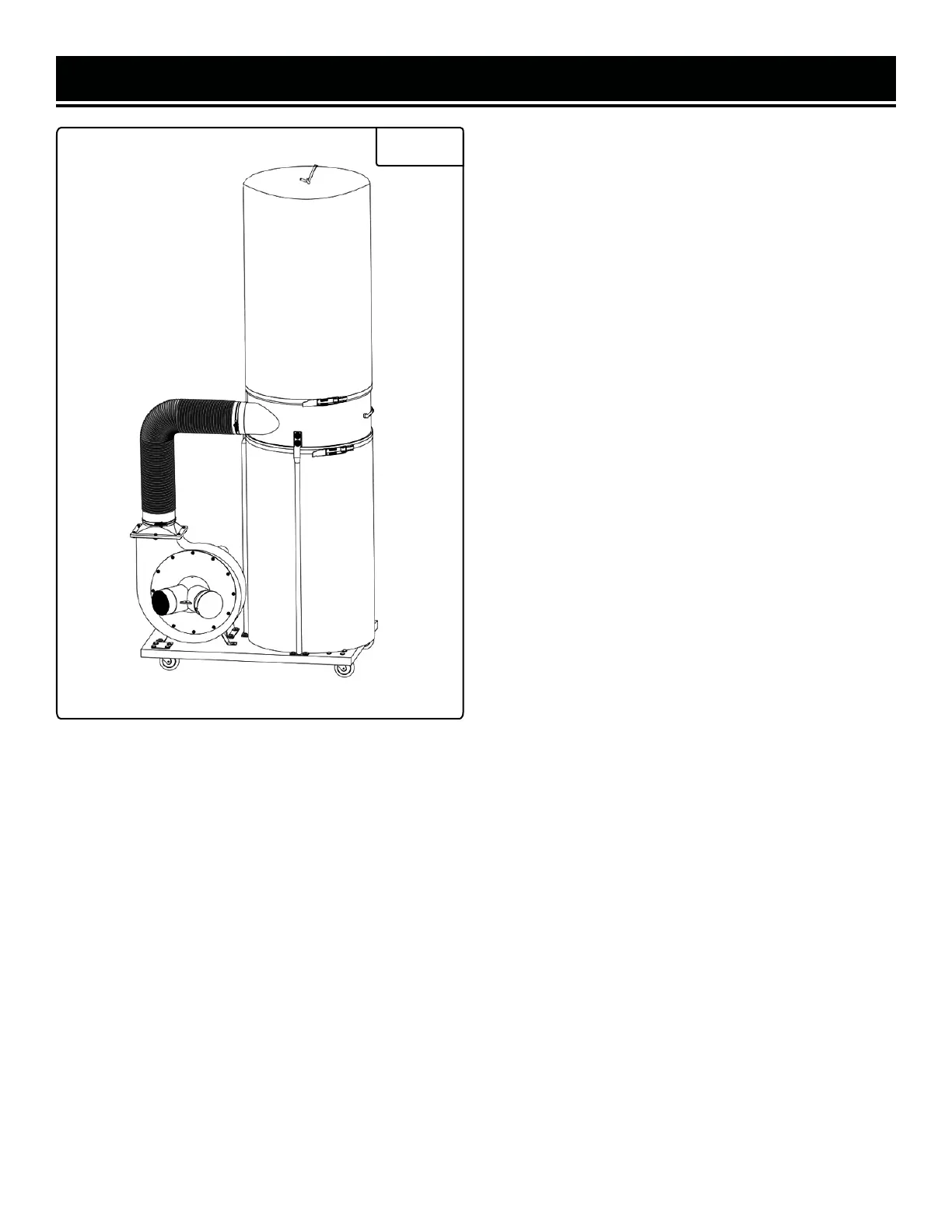

Fig. 10
