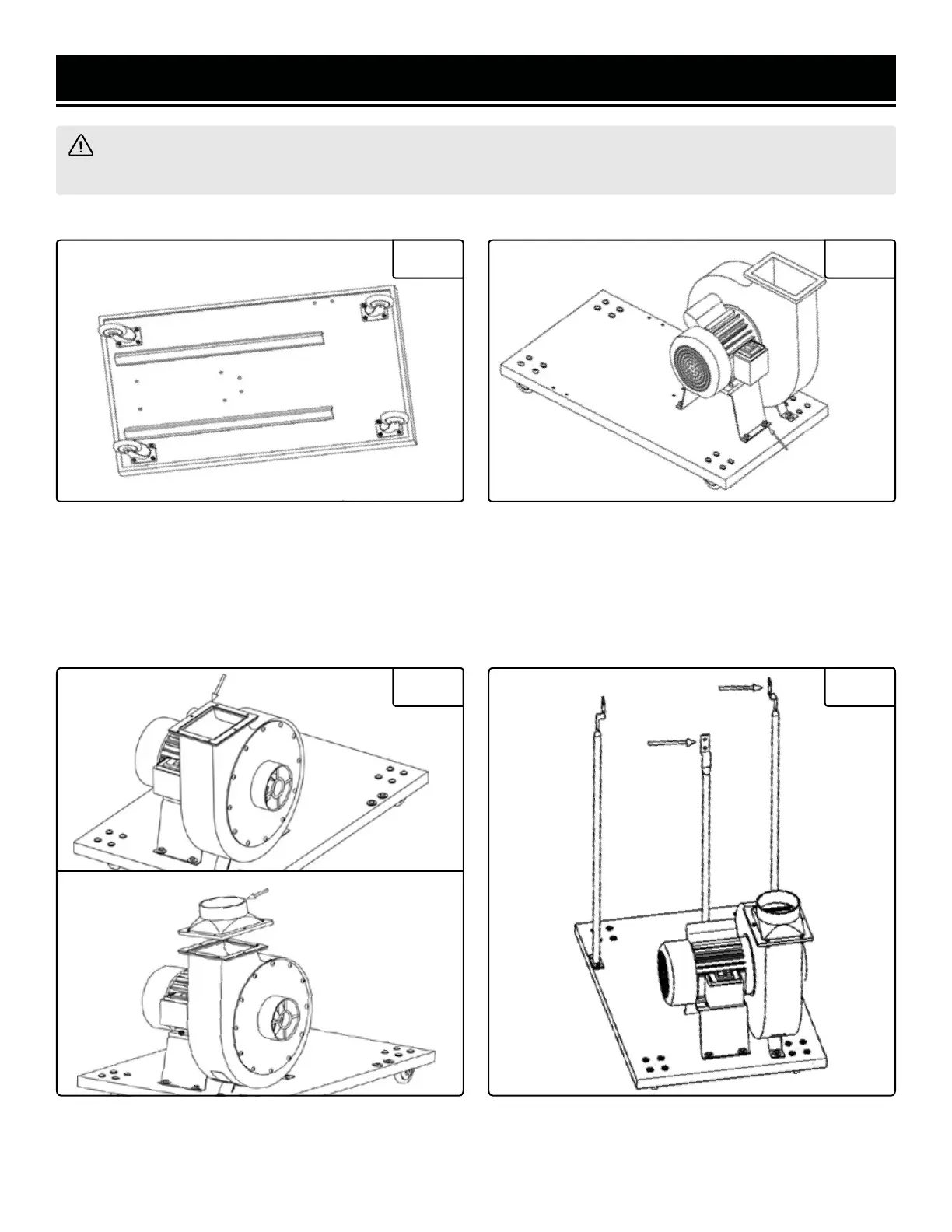

Place the base plate (D) upside down on a flat surface.
Install the 4 casters in the following configuration:
M6x10 Phillips screw, M6 washer, base plate, caster (J)
and M6 nut. Tighten the nuts and make sure all casters
are properly installed and can swivel freely.
Position the outlet gasket (I) on top of the motor assem-
bly and align the holes as shown. Place the outlet (L)
over the gasket and secure it with M6x20 hex screws,
M6 washers and M6 Nuts.
Mount the three lower bag support poles (F) to the base
in the configuration as shown. Secure the poles with
M8x16 hex screws and M8 washers.
Turn the base (D) over and align the motor assembly
(B) with the holes on the base as shown. Secure the
motor assembly using M8x16 hex screws, M8 washers
and M8 nuts.
1. ASSEMBLING THE CASTERS
3. INSTALLING THE OUTLET 4. INSTALLING THE SUPPORT POLES
2. ATTACHING THE MOTOR ASSEMBLY
ASSEMBLY & ADJUSTMENTS
WARNING! Do not attempt to plug in or operate your tool until the entire operator’s manual has been read
and understood. Failure to do so could result in personal injury and damage to the tool.
Fig. 2 Fig. 3
Fig. 4 Fig. 5
9
