No. Part No. Description Qty.
1-1 56380i-0101
Crankcase
Subassembly
1
1-2 56380i-0102 Flat Washer, 10mm 1
1-3 56380i-0103
Connector, Oil Drain
Hose
1
1-4 56380i-0104 Oil Drain Hose 1
1-5 56380i-0105 Trigger 1
1-6 56310i-1106 Bolt, M5x16 2
1-7 56380i-0107
Crankcase Side
Shield
1
1-8 56310i-1201 Bolt, M6x16 4
1-9 56310i-0211 Engine Oil Sensor 1
1-10 56310i-0210 Nut, M10 1
1-11 56380i-0111 Bearing, 6305 1
No. Part No. Description Qty.
2-1 56380i-0201 Cover, Crankcase 1
2-2 56200-0803 Pin 2
2-3 56380i-0203 Ball Bearing, 6205 1
2-4 56380i-0204 Gasket, Crankcase 1
2-5 56310i-0306 Oil Seal 1
2-6 56310i-0307 Bolt, M8x32 6
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1-12 56310i-0306 Oil Seal 1
1-13 56380i-0113 Starter Motor 1
1-14 56380i-0114 Bolt, M6x28 2
1-15 56380i-0115 Protective Cover 1
1-16 DF400i-0116 Ignition Coil 1
1-17 56380i-0114 Bolt, M6x28 2
1-18 DF400i-0118 Oil Dipstick 1
1-19 56380i-0907 Wiring Clamp 1
1-20 56310i-0207 Bolt, M5x20 2
1-21 DF400i-0121 Wiring Clamp 1
1-22 DF400i-0122 Nut, M5 2
1-23 56200-1202 Bolt, M6x12 3

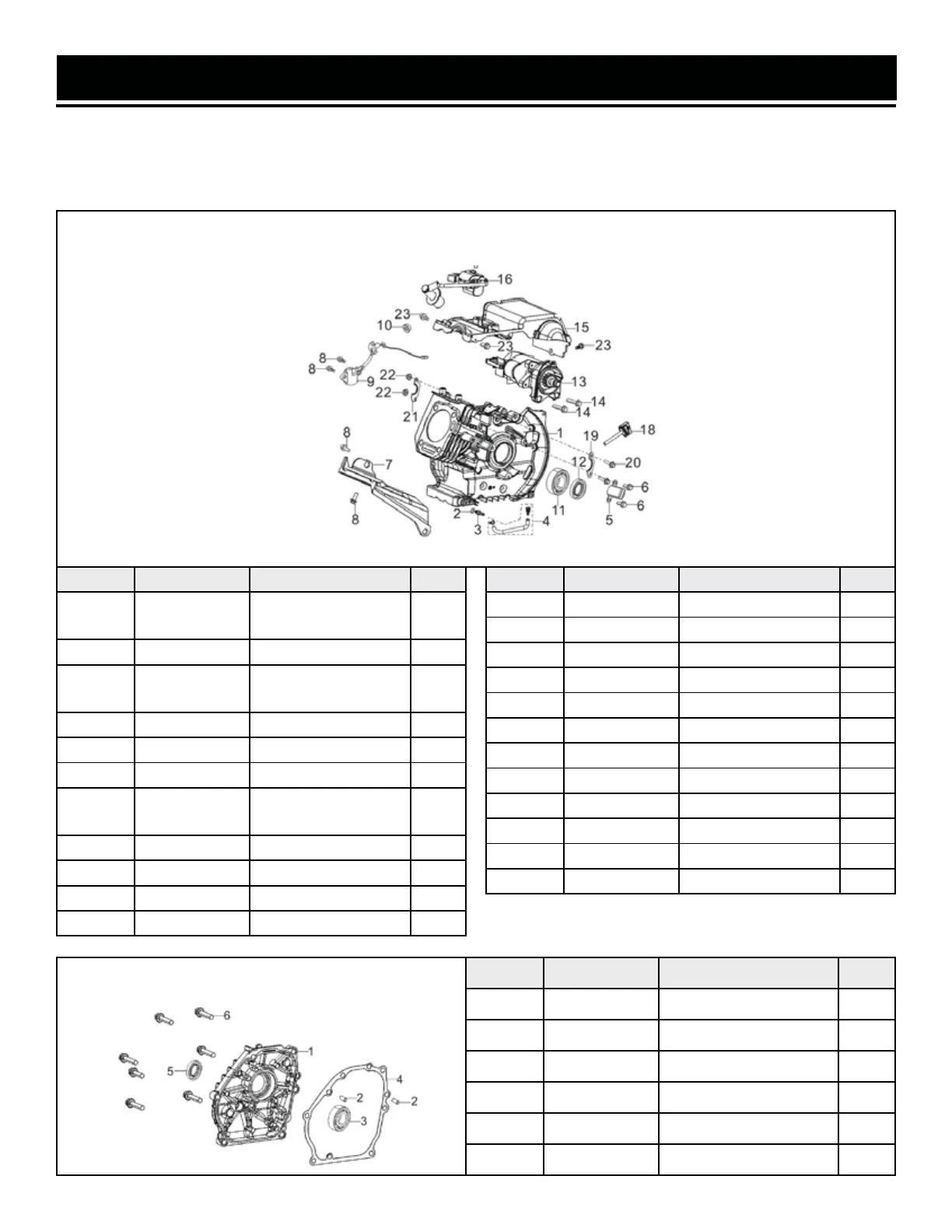

FIG. 1 - CRANKCASE ASSEMBLY
FIG. 2. CRANKCASE COVER ASSEMBLY
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service
at 1-(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use
are not covered by the three-year warranty. Not all parts may be available for purchase.
42
