Wen DF400i

Fig.
No.
Part No. Description Qty.
13-1
56380i-
1301B
Engine Frame As
-
sembly
1
13-2 56380i-1302 Battery Case 1
13-3 56200-1202 Bolt, M6x12 14
13-4 56380i-1304
Battery, 12V,
1.6Ah
1
13-5 56380i-1305 Battery Bracket 1
13-6
56380i-
1306B
Anode Wire
(Negative)
1
13-7 56380i-1307
Cathode Wire
(Positive)
1
13-8 56310i-1420 Bolt, M6x25 3
13-9 56310i-1419 Bushing 3
13-10 56310i-1421 Rubber Jacket 3
13-11 56380i-1311 Inverter 1
13-12 56310i-1201 Bolt, M6x16 1
13-13 56380i-1313 Rubber Jacket 1
13-14 56380i-1314
Carbon Tank
Mounting Bracket
1
13-15 DF400i-1315 Carbon Tank 1
Fig.
No.
Part No. Description Qty.
13-16 56380i-1316
Carbon Tank
Hose, Primary
1
13-17
56380i-
1317B
Air Filter Hose 1
13-18 56380i-1318
Carbon Tank
Hose, Secondary
1
13-19 56380i-1319 Clamp 2
13-20 56380i-1321 Clamp 2
13-21 DF400i-0812 Rubber Jacket 1
13-22 56310i-1009 Bolt, M8x16 2
13-23 56380i-1323 Front Handle 1
13-24 56380i-1324 Handle 1
13-25 56380i-1325 Bolt, M8x30 2
13-26 56380i-1326 Screw, M4x8 1
13-27 56380i-1327 Grounding Wire 1
13-28 DF400i-1328 LPG Regulator
1
13-29 DF400i-1329 Hose Clamp 1
13-30 DF400i-1330 LPG Hose 1
13-31 DF400i-1331 Rubber Jacket 1

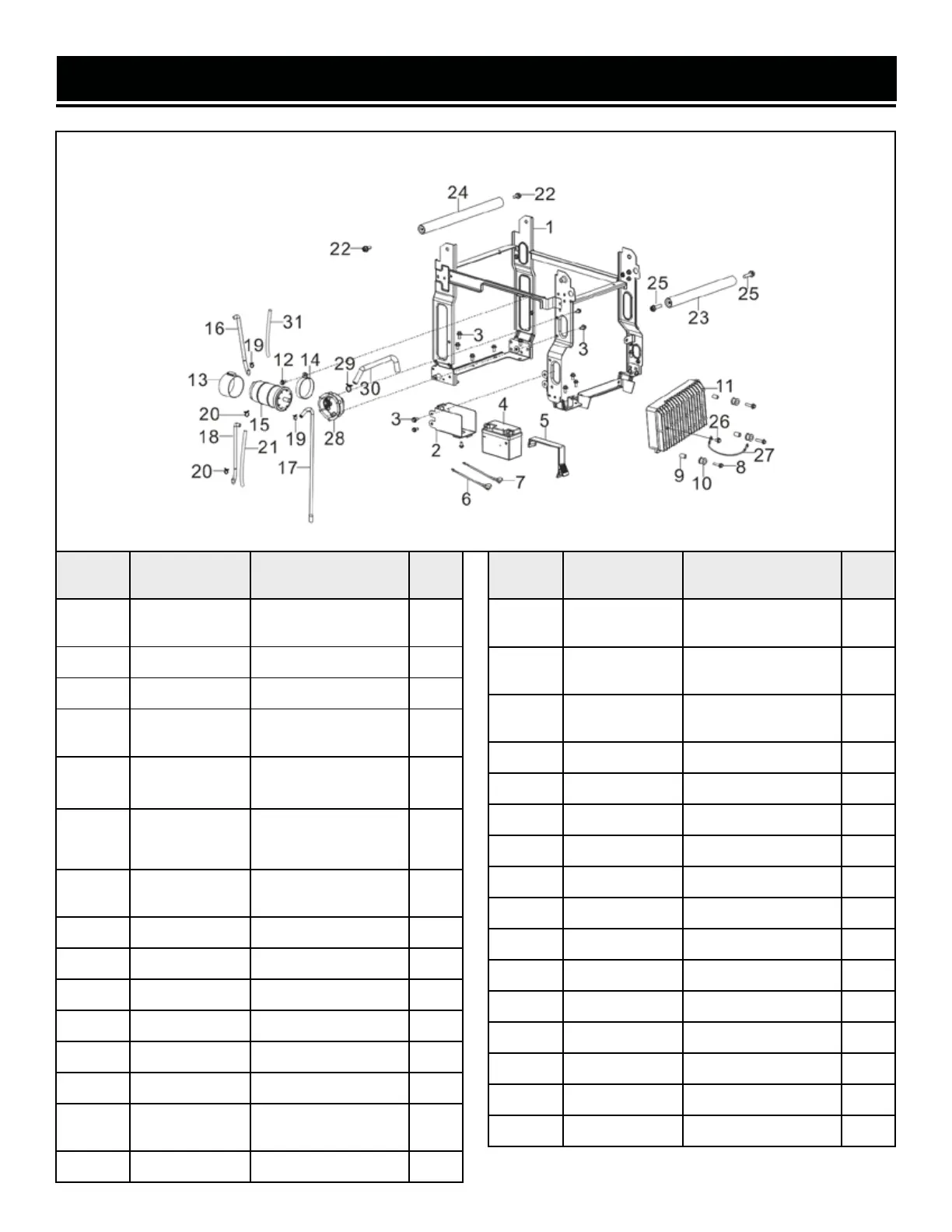

EXPLODED VIEW & PARTS LIST
FIG. 13. FRAME
48
