Wen DF400i

No. Part No. Description Qty.
15-1 56380i-1501 Handle Tube 1
15-2 56380i-1502 Left Rotation Arm 1
15-3 56380i-1503 Right Rotation Arm 1
15-4 56380i-1504
Left Handle
Connector
1
15-5 56380i-1505
Right Handle
Connector
1
15-6 56380i-1506
Left Handle
Connector Seat
1
15-7 56380i-1507
Right Handle
Connector Seat
1
15-8 56380i-0313 Bolt, M6x12 2
No. Part No. Description Qty.
15-9 56380i-1509 Bolt, M6x10 4
15-10 56310i-1201 Bolt, M6x16 4
15-11 56310i-1807 Nylon Nut, M6 2
15-12 56380i-1512 Flat Washer 2
15-13 56380I-1513 Connector Fastener 2
15-14 56380i-1514 Flat Washer 6
15-15 56380I-1515 Positioning Block 2
15-16 56380i-1516 Washer 4
15-17 56380i-1517 Flat Washer 2

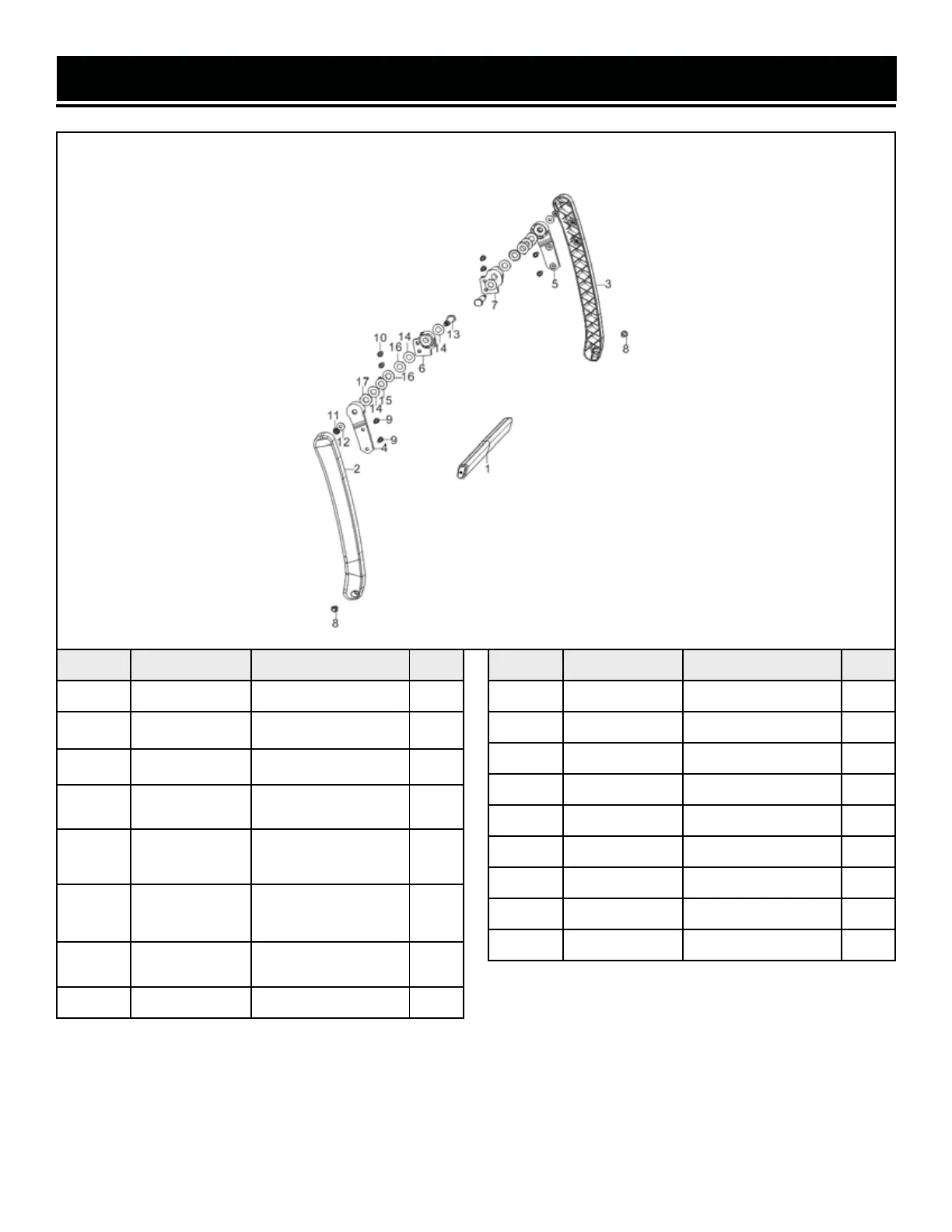

EXPLODED VIEW & PARTS LIST
FIG. 15. WHEEL ASSEMBLY
